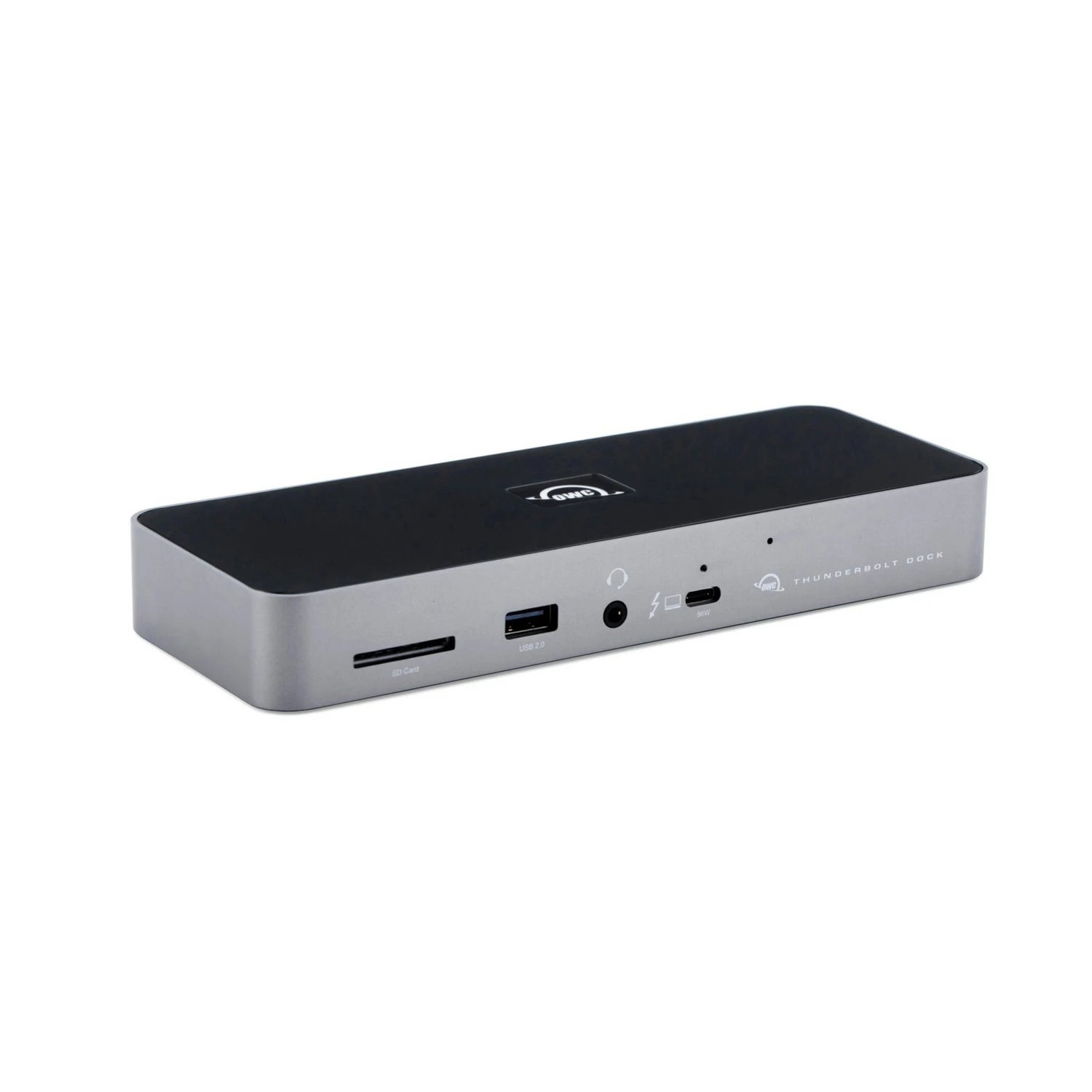

The OWC 11-Port Thunderbolt Dock enable connections to past, present, and future devices. You can link up to two 4K displays or a 5K/6K/8K display, high-performance storage like NVMe SSDs, A/V mixers, phones, tablets, and desktop accessories such as keyboards or mice with the OWC 11-Port Thunderbolt Dock. This dock opens up a world of USB and Thunderbolt accessories for expanding your capabilities.

Connect-It-All Solution
The latest Thunderbolt interface uses a universal USB-C connector for data transfer, video output, and device charging. The Thunderbolt ports on the OWC 11-Port Thunderbolt Dock utilize the same USB-C connector, providing a multi-connectivity solution for current and future Thunderbolt and USB-C devices.

Connectivity and Convenience
Enhance Thunderbolt functions on your Apple silicon M1 or M2 Mac, any Apple ‘Intel’ Mac with Thunderbolt 3, or Thunderbolt 4 PC with the OWC 11-Port Thunderbolt Dock. You can also use it with non-Thunderbolt USB-C devices like Chromebooks and iPads, offering access to portable gear, headphones, and SD cards, along with Thunderbolt and USB devices, Gigabit Ethernet, and an SD card reader.

Plug It All In
Maintain compatibility with your devices as if they were directly connected to your computer.

Reliable Streaming + Sharing
Ideal for IP-based workflows and secure network access.

Reinvent the Chain
Establish multiple independent “tree branches” to connect several bus-powered devices.

Speedy Content Transfers
Quickly import photos and videos via the SD card reader.

Powerful
Delivers 96W of power for laptop charging and power delivery to connected devices.

Adjustable LED
Customize the lighting to suit your workspace.

More Ports = More Devices
Connect additional storage, displays, headphones, mics, and various accessories.

Securable
Features both Kensington Security Slot and Nano Security Slot for anti-theft protection.

Thunderbolt Certified
Reliable construction by OWC, compatible with both Mac and Windows.

Cable Included
Comes with a 0.8M Thunderbolt cable in the package.

Reimagining the Daisy Chain
Create three separate “tree branch” device chains for better device management without affecting other connections.

Plug In Multiple Bus-Powered Thunderbolt Drives
Connect multiple portable Thunderbolt drives directly to experience maximum speed and performance.

SD Card Reader
Easily transfer and store creative files with the SD card reader at speeds of up to 312MB/s.

Get Wired
Enhance your network connection with the Gigabit Ethernet port for fast and reliable data transfers.

A Higher Vision
Use the OWC 11-Port Thunderbolt Dock to connect high-resolution displays for detailed graphic work, video editing, and multitasking capabilities.

Key Features

Experience the ultimate Thunderbolt performance with the Thunderbolt you’ve always desired
Enhance your computer with additional fully functional Thunderbolt ports
Create multiple independent connections with the reinvented Daisy Chain feature
Connect and charge USB devices with the convenience of four USB ports
Power up your laptop with up to 96W of charging power
Connect more storage, displays, accessories, and more to expand your device capabilities
Enjoy the same compatibility as if your devices were directly plugged into your computer
Stream and share reliably with Gigabit Ethernet for IP-based workflows and secure network access
View photos and movies at lightning-fast speeds with the SD card reader
Plug in headphones and microphones into the audio combo jack for enhanced audio experience
Customize the LED illumination to suit your work environment
Secure your device with both Kensington Security Slot and Nano Security Slot for anti-theft cabling
Trust in Thunderbolt Certified and OWC dependability for Mac and Windows devices
Optimize your device’s health, performance, and field upgrade management with Innergize™ Enabled software
Enjoy peace of mind with a 2 Year OWC Limited Warranty.

Technical Specifications

Memory Card Slots
(1) SD
Power Delivery
Thunderbolt 4 host port provides up to 96W of power to the host computer.
Thunderbolt 4 device ports (for external drives and other devices) provide 15W of power.
USB port provides up to 1.5A of power for bus-powered drives and device charging.
Device Ports
(1) Host Port – Thunderbolt 4 (USB-C) up to 40 Gb/s (5000 MB/s)
(3) Thunderbolt 4 (USB-C) Ports
(3) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) – USB 2.0/3.0 backwards compatible
(1) USB 2.0 Port
(1) Gigabit Ethernet (GbE) RJ-45 Port
(1) 3.5mm Stereo Audio Input/Output Combo Port
Display Support
Up to one 8K display @ 60Hz,
or two 4K displays @ 60Hz,
or one 4K display @ 120Hz,
or one 4K display @ 60Hz,
or two 5K displays @ 60Hz
Display Support by Port
Thunderbolt 4: Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 4 display or other display that supports USB-C connections and DisplayPort 1.4
Ethernet Speeds (RJ-45)
1Gb/s “Gigabit” (1000BASE-T)
100Mb/s (100BASE-T)
10Mb/s (10BASE-T)
Data Rate
Up to 40Gb/s
Chipset / Controller
Thunderbolt: Goshen Ridge
USB: Cypress/HX3PD
Ethernet: RTL8153B
SD Reader: GL3226
Host Interface Requirements
Thunderbolt (USB-C) or USB (USB-C or USB-A1) port
Mac OS Compatibility
macOS 11.x Big Sur
macOS 12.x Monterey
macOS 13.x Ventura
macOS 14.x Sonoma
PC OS Compatibility
Windows 10 64-bit Edition
Windows 11
Mobile OS Compatibility
iPadOS 17
iPadOS 16
iPadOS 15
iPadOS 14
iPadOS 13
Android 13.x
Android 12.x
Android 11.x
Other OS Compatibility
Chrome OS
External Power Adapter
Yes
Power Supply
External UL-listed universal auto-switching power supply
Need an additional power supply? Secondary/replacement power supplies are also available.
AC Input
100-240V, 50-60Hz, 2.5A
DC Output
+20V, 6.75A
Wattage
135W
Replacement Adapter Part Number
OWCPWR20V150W (sold separately)
Security Slot
Yes
Housing Color
Chassis: Space Gray
Covers: Black
Housing Material
Chassis: Aluminum
Covers: Polycarbonate
Dimensions
Height: 2.6 cm (1.0 in)
Length: 7.3 cm (2.9 in)
Width: 19.8 cm (7.8 in)
Weight
400.0 g (0.88 lbs)
Certifications
BSMI
CE
FCC
RCM
VCCI
RoHS Compliant
Yes
Reach Certification
Yes
Ambient Temperature
Operating: 32°F to 86°F (0°C to 30°C)
Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
Operating: 5% to 95% non-condensing
Non-Operating: 5% to 95% non-condensing
Included
11-Port (1) OWC 11-Port Thunderbolt Dock
(1) 0.8M (31″) Thunderbolt Cable
(1) External Power Supply and Power Cable
(1) Quick Start Guide for OWC Thunderbolt Dock
(1) User Guide for OWC 11-Port Thunderbolt Dock
(1) OWC Dock Ejector for Mac and Windows (software download)
(1) User Guide for OWC Dock Ejector
2 Year OWC Limited Warranty
