Pioneer DJM-TOUR1 Foldout Touch Screen 4-Channel TOUR Digital Mixer(Pioneer Djm Tour1 Foldout Touch Screen 4 Channel Tour Digital Mixer)

Pioneer DJM-TOUR1: The Ultimate 4-Channel Digital Mixer for Professional Touring & Club Performances

Dominate the biggest stages with the Pioneer DJM-TOUR1, a professional DJ mixer engineered for the demanding environments of festivals and arenas. This 4-channel digital mixer delivers unparalleled sound quality and robust reliability, making it the definitive choice for touring DJs and high-level club performances.

Experience Unrivaled Sound & Performance:
The DJM-TOUR1 redefines audio excellence with its warm, high-resolution sound, driven by a 32-bit ESS Technologies D/A converter, 96 kHz/24-bit sound card, and 64-bit floating point mixing processing. Enjoy crystal-clear, natural analog sound with incredibly low noise and distortion, even at peak volumes. Direct AES/EBU digital output ensures pristine audio transmission to front-of-house systems, making this the ideal live performance mixer.

Innovative Features for Seamless Control:

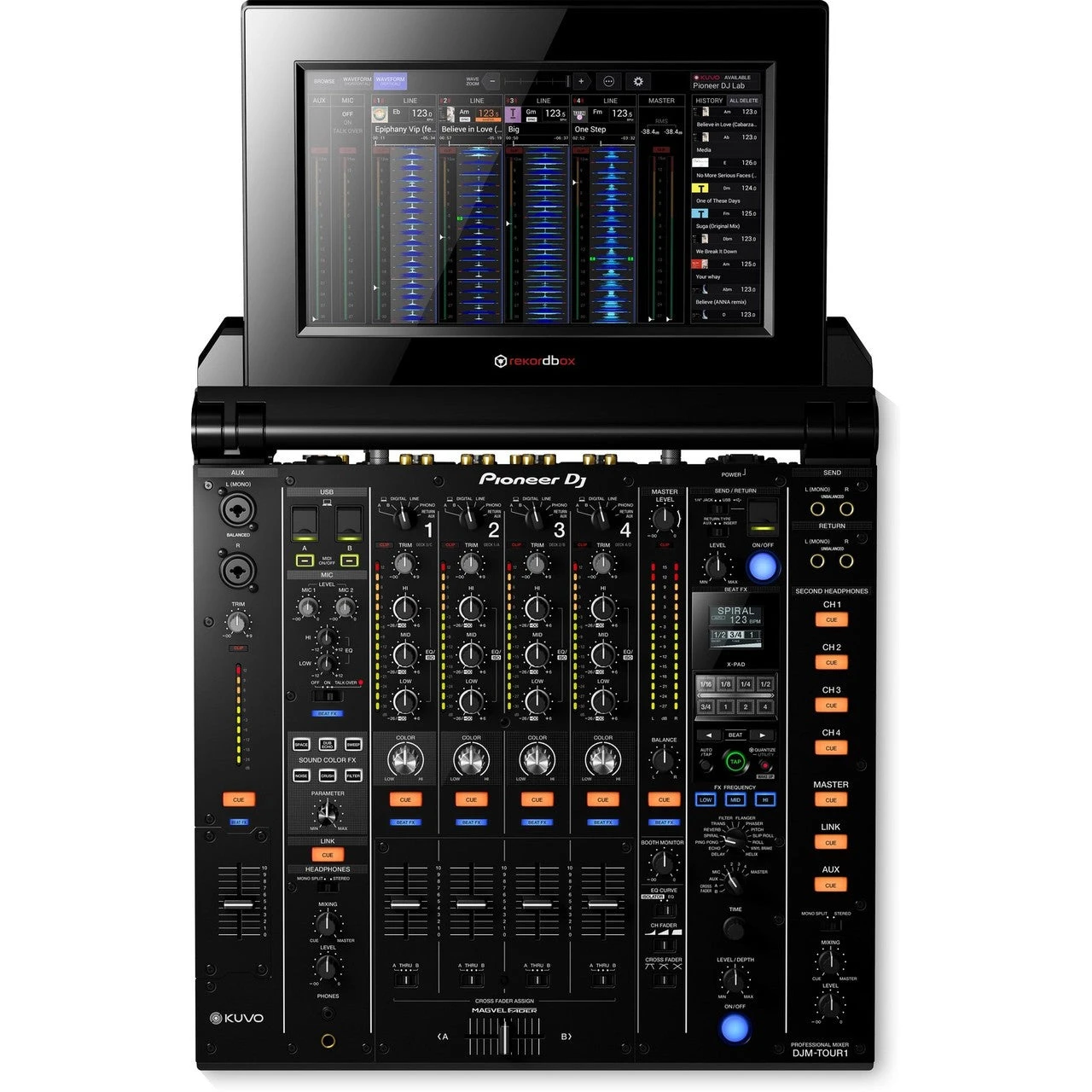

Unlock a new realm of control with the DJM-TOUR1’s innovative 13-inch fold-out touch screen. Browse and select tracks from up to four connected CDJs via Pro DJ Link, offering detailed waveforms and volume monitoring. Its 5-port LAN hub simplifies setup, allowing you to connect multiple players and laptops for advanced rekordbox performance features. With independent headphone sections, two DJs can cue tracks simultaneously, ensuring smooth back-to-back transitions.

Built for the Road, Crafted for Creativity:
Beyond its superior sound, the Pioneer DJM-TOUR1 boasts a festival-proof design with rigid construction, isolator feet, and secure NEUTRIK etherCON® connectors. Its familiar layout, mirroring the DJM-900NXS2, provides intuitive access to improved channel fader/EQ curves, high-quality Sound Colour FX, and quantized Beat FX. Utilize the Independent Send/Return for seamless integration of external effects, expanding your creative possibilities.

Advanced Compatibility & Connectivity:
Stay ahead with the DJM-TOUR1’s comprehensive compatibility. It supports TRAKTOR DVS control and is fully compatible with the DJM-REC app for effortless recording, archiving, and live-streaming of your mixes. Experience full DVS functionality with a rekordbox Core plan or above.

Elevate your DJ gear to the pinnacle of professional performance. The Pioneer DJM-TOUR1 mixer is more than just an audio mixer; it’s a testament to innovation, designed to help you command any stage.

Key Features

• A 32-bit D/A convertor, made by ESS Technologies, delivers incredibly low noise and distortion even at super-high volumes
• The AES/EBU digital output lets you connect directly to the PA, regardless of its positioning
• 13-INCH FOLD-OUT TOUCH SCREEN
• A 5-port LAN hub means you can connect up to 5 players or laptops to the DJM-TOUR1
• 2 independent headphone sections let you and another DJ cue tracks at the same time without hearing each other’s input
• Hook up your choice of external devices including drum machines, effectors, synths and samplers using XLR/TRS combination Aux-in

Technical Specifications

Dimensions (with fold-out screen)
When upper display part is closed (W x D x H): 445.2 x 451.6 x 179.1 mm
When upper display part is upright at 90 degrees (W x D x H): 445.2 x 457.8 x 418 mm
When upper display part is fully open (W x D x H): 445.2 x 694.5 x 203.1 mm
Weight
35.49 lb
Frequency Range
20 – 40,000 Hz
Sampling Rate
96 kHz
A/D Converter
24 bit
D/A Converter
32 bit
S/N Ratio Line
105 dB
S/N Ratio Phono
88 dB
S/N Ratio Mic
79 dB
Distortion
< 0.005 % (LINE)
Power Consumption
66 W
Channels
EQ/ISO
3 band
EQ/ISO Range
Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -? ~ +6 dB
Performance Control
Channels
4
Sound Color FX
Crush
Dub Echo
Filter
Noise
Sweep
Space
Beat FX
Delay
Echo
Filter
Helix
Phaser
Ping Pong
Pitch
Slip Roll
Spiral
Reverb
Roll
Trans
Vinyl Brake
Crossfader Type
Magvel Fader
Fader Curve
3
Mic Connection
XLR / 1/4-inch Jack Combo
1/4-inch TRS Jack
Talkover
3 Position Switch
Inputs
4 Digital (Coaxial)
4 CD/LINE (RCA)
4 PHONO (RCA)
1 AUX (XLR, 1/4 inch TRS Jack)
2 MIC (XLR/TRS Jack Combo, 1/4 inch TRS Jack)
1 Word Clock (BNC)
Send/Return
1 SEND (1/4-inch TS jack)
1 RETURN (1/4-inch TS jack)
LAN
6
USB
2 USB B ports
1 USB A port
Outputs
2 MASTER (XLR, RCA)
1 BOOTH (XLR)
2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
1 HEADPHONE MONITOR (1/4 inch Jack)
1 REC (RCA)
1 Digital (XLR)
