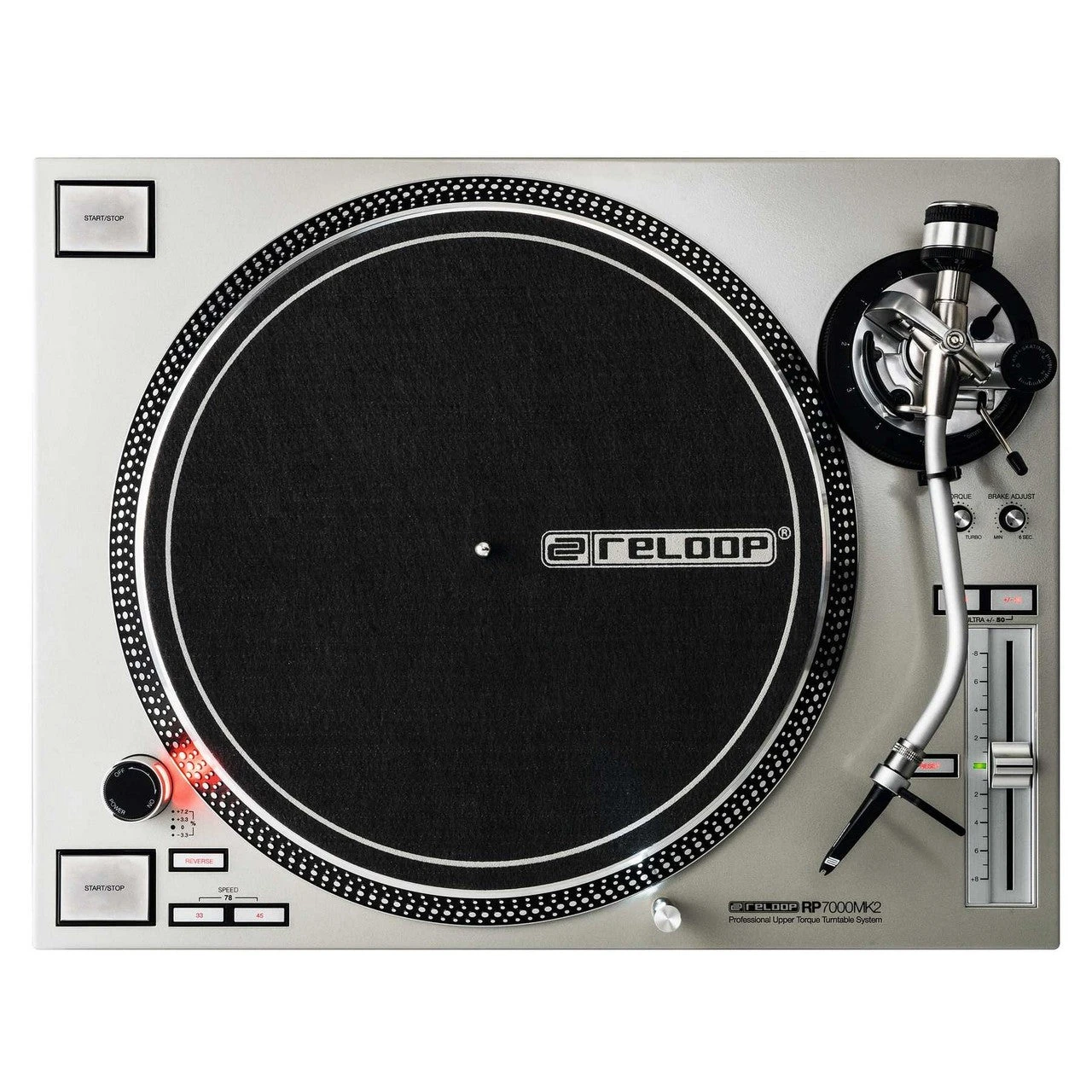

Reloop RP-7000 MK2 Silver Direct Drive High Torque Turntable

With the RP-7000 MK2, Reloop has built a turntable that caters to the high demands of professional DJs and modern nightclubs. With its powerful direct drive motor and rugged construction we were able to develop a sturdy and indestructible turntable that can take on harsh everyday life with ease.

STURDY CASING CONSTRUCTION
By using a combination of metal, rubber and synthetic materials, the RP-7000 MK2’s housing is more reinforced and heavy than ever before. This results in a turntable that is extremely resistant to vibrations that can be caused by heavy bass sounds in DJ booths and its shock-absorbing feet help to further improve isolation. The surface is coated with a scratch-resistant high-quality deep black or classic silver metalic finish.

BALANCED S-SHAPED TONE ARM WITH UPGRADED TONE ARM BASE
The RP-7000 MK2 features a statically balanced S-shaped tone arm with hydraulic lift and anti-skating mechanism. The newly developed tone arm base provides improved stability and adjustable height/vertical tracking angle (VTA). The low-resonance tone arm comes with a universal connection for pick-up cartridge systems (SME).

DUAL START/STOP BUTTONS, PRECISE MOTOR CONTROL AND REVERSE FUNCTION
As well as the above technical innovations, the RP-7000 MK2 is equipped with a few functions that will make any DJ’s life much easier. The newly developed aluminium LED target light is freely moveable to help you find the stylus position in dark surroundings. The target light is also removable and easily exchanged. An additional start/stop summary has also been integrated to facilitate a vertical setup (battle position) and by using the summarys on the RP-7000 MK2’s top panel, you can switch between the three motor speeds (33 1/3, 45 & 78 rpm). Dedicated summarys for forward and reverse mode allow for further creativity in your mix.

Key Features

• NEW features of the MK2 version:
• Built for the club: Rigid chassis construction with an even heavier design with additional reinforcements made of metal, rubber and molding compound for high vibration damping and isolation
• More powerful starting torque (adjustable from 2.8 – 4.5 kg/cm)
• Fine-tuned motor control for further optimization of wow and flutter and rotation
• Newly developed, height-adjustable tone arm base (VTA) and Anti-Skating control
• Particularly light weight and rigid, satin aluminium material used for tone arm pipe
• Pitch scale for precise adjustments
• Optional ground terminal offers additional protection in complex club & studio environments
• Easily replaceable, freely rotatable LED needle light in new aluminium design
• High-quality and hard-wearing silver metallic finish
• Quartz driven DJ turntable with upper-torque direct drive
• Adjustable stop speed (0.2 – 6 sec.)
• Precise control of motor with 3 speeds (33 1/3, 45 & 78 RPM)
• Precision manufactured, die cast aluminium turntable
• Rubber inlays for reduction of vibrations and background noise
• Statically-balanced universal S-shaped tonearm with hydraulic lift and anti-skating mechanism
• Universal connection for pickup systems (SME)
• Pitch range +/-8 %, +/-16 %, +/-50 % (Ultra Pitch)
• Quartz lock
• Additional start/stop summary for vertical positioning
• Reverse function: switch for forwards and reverse operation
• Recessed connection cavity for easy installation in cases & seamless adjustment
• Phono and line out (no grounding required)
• Removable mains and RCA cable
• Safety mains switch
• Shock-absorbing feet against vibrations

Technical Specifications

Turntable:
Type: direct-drive turntable
Drive: quartz driven upper-torque direct drive
Motor: 16-pole, 3-phase, brushless motor
Turntable speeds: 3 speeds, manual (33 1/3, 45, 78 RPM)
Starting torque: 2.8 – 4.5 kg/cm (adjustable)
Adjustable stop time (0.2 – 6 sec.)
Start-up time / change to RPM: <0.2 sec
Wow and flutter: 0.01% WRMS*
S/N ratio: > 55dB (DIN-B)
Brake system: electronic brake
Platter:
Material: die cast aluminium
Diameter: 332 mm
Weight: approx. 1.5 kg
Tone arm:
Type: universal, statically balanced, S-shaped
Effective length: 230 mm
Overhang: 15 mm
Tracking error range: < 3 deg
VTA setting range: 0-6 mm
Useable weight of pickups: 3.5~8.5 g (incl. headshell 13~18 g)
Anti-skating range: 0 – 3 g
Effective tone arm mass: 30 g
Connections:
1x Phono/Line Out (gold-plated), 1x GND earth connection
General:
Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
Power consumption: 13 W
Dimensions: 458 x 354 x 144,6 mm
Weight: approx. 11.7 kg
Accessories included: turntable, slipmat, LED needle light, counterweight, PHONO Cinch cable with earth, power cord, operating instructions
