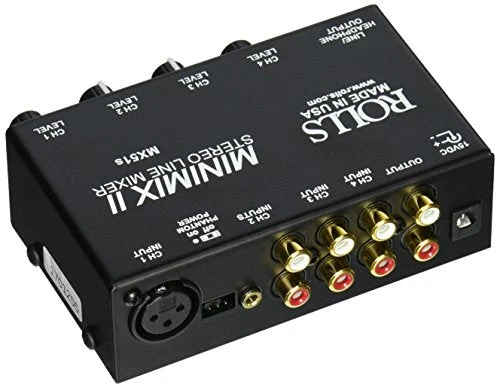

Rolls MX51s Mini Mix 2 Four Channel RCA Mixer(Rolls Mx51s Mini Mix 2 Four Channel Rca Mixer)

Rolls MX51s Mini Mix 2 Four Channel RCA Mixer

The MX51s Mini Mix 2 is small four-channel mixer with individual volume controls, and a headphone / line output. The unit has one XLR input along with an 1/8″ input and 3 sets of stereo RCA inputs. It has enough gain and output level to connect to a power amplifier, with either RCA or 1/8″ jacks. The MX51s is powered by an included ROLLS PS27s 15V adapter.

Key Features

• For mixing a microphone XLR input with up to three RCA input signals
• XLR phantom power available.
• Four channels total
• Line / Headphone output level
• ROLLS PS27 AC adapter included
• Stereo RCA Line-Level Output

Technical Specifications

Power
ROLLS PS27s adapter
CH 1 Gain
32 dB XLR jack (highest gain)
Phantom Power
for CH 1 microphone XLR
Ch2 Gain
26 dB 1/8″ and RCA
Ch 3 and 4 Gain
26 dB each RCA
Output
1/8″ stereo and stereo RCA
S/N Ratio
>90 dB
THD
<.008%
IMD(SMPTE)
<.008%
Input Impedance
10K Ohms unbalanced each jack
Size
3″ x 5″ x 1.25″ (8 x 13 x 3.2 cm)
Weight
1 lbs. (.45 Kg)
