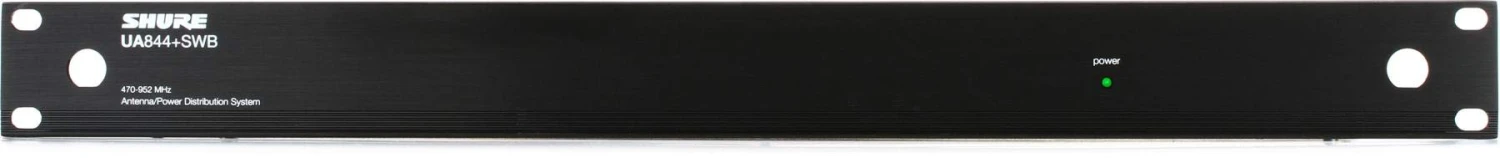

Shure UA844+SWB/LC | Antenna Distribution System for use with BLX4R, 470-952 MHz (Excludes Antenna Cables and Locking Power Cables)

The Shure UA844+SWB/LC is an advanced UHF antenna distribution system, meticulously designed to seamlessly integrate with your existing wireless microphone setup. This system is ideal for both professional and everyday use, providing a scalable solution to expand your wireless capabilities. With the capacity to connect multiple receivers using just one pair of antennas, it not only simplifies your setup but significantly enhances the quality of your audio transmission. The system includes amplification to compensate for signal loss, thus ensuring a strong and clear audio signal even in diverse and challenging environments.

Designed with convenience and reliability in mind, the UA844+SWB/LC comes with easy front-mounting hardware and robust rack-mounting options, making installation quick, straightforward, and efficient. This ensures optimal antenna positioning for the best possible performance. The external power supply included in the kit offers a reliable power source for multiple receivers, further enhancing your workflow and overall performance.

Notably, the Shure UA844+SWB/LC supports up to four wireless receivers and allows for daisy-chaining up to five units in a two-tier configuration. This makes it ideal for larger setups where numerous microphones are required, elevating your audio transmission capabilities to new heights. Please note that antenna cables and locking power cables are not included in the UA844+SWB/LC package, allowing you the flexibility to choose components that suit your specific needs.

Key Features

• Front-mounting antenna hardware for easy installation
• Rack-mounting hardware for professional-grade setups
• External power supply for reliable performance
• Supports up to four wireless receivers
• Can be stacked with multiple systems for expanded setups

Specifications

• Power Requirements: 14 to 18V DC
• DC Output: 14 to 18V DC (x4)
• Output Current: Combined total from all DC outputs 2.5 A, maximum
• Operating Temperature Range: −7°C (20°F) to 49°C (120°F)
• Dimensions: 45 x 483 x 172 mm (H x W x D)
• Net Weight: 1.62 kg (3.6 lbs)
• Connector Type: BNC
• RF Frequency Range: 470 to 952 MHz
• Bias Voltage: 12V DC (150 mA max.) (x2)
• Impedance: 50 Ω
• Output Intercept Point (OIP3): 21 dBm, typical
• Output Connector Isolation: 30 dB, typical
• Gain: Input to any output port (Unused ports terminated in 50 Ω) −0.5 to 3.0 dB

Package Contents

• Shure UA844+SWB/LC Antenna Distribution System
• Rack-mounting hardware
• External power supply
• Documentation

The Shure UA844+SWB/LC Antenna Distribution System is perfect for anyone looking to elevate their wireless microphone performance, ensuring crystal-clear audio delivery and maximum versatility in any live or studio setting.
