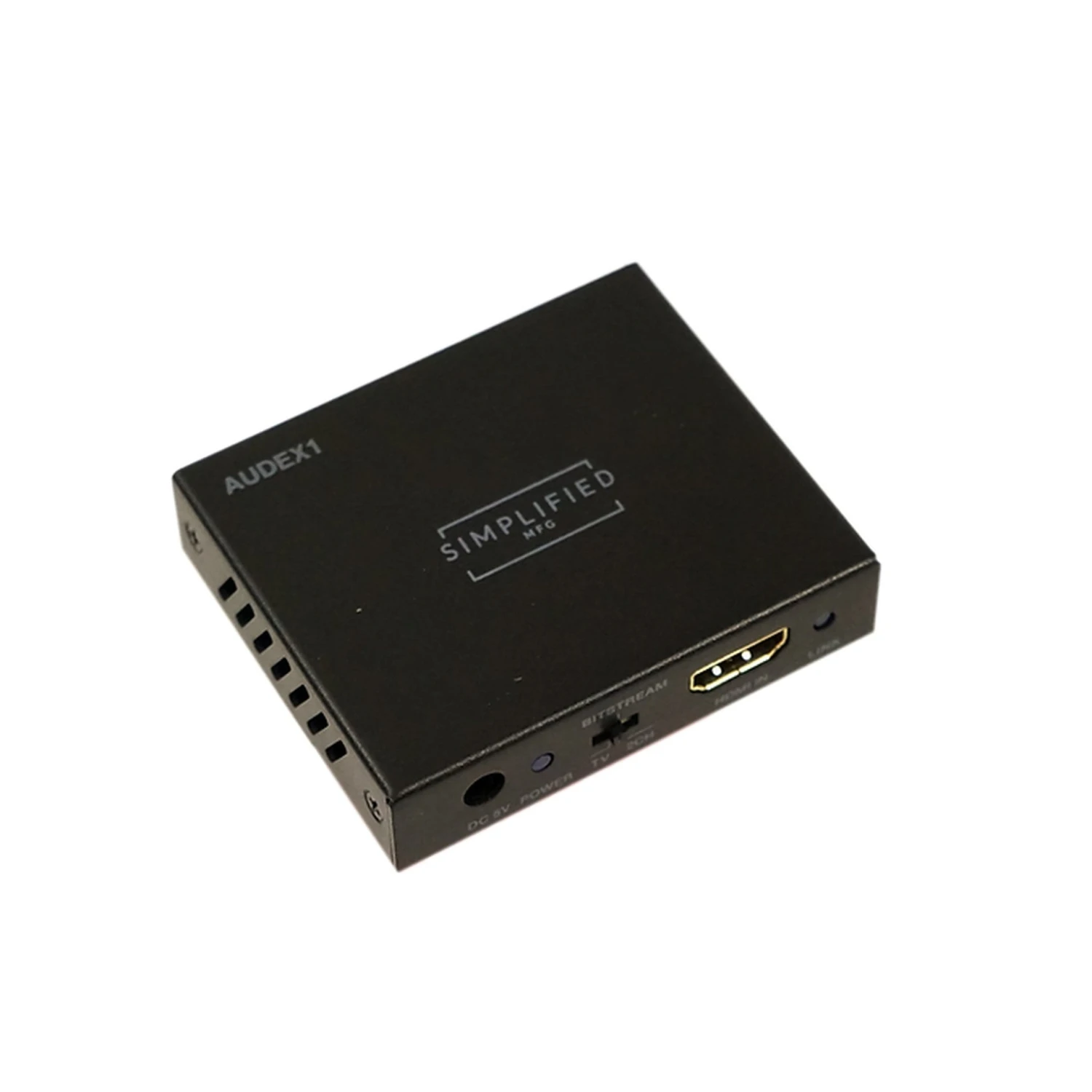

Simplified MFG AUDEX1 HDMI 18Gbps Audio Extractor

The AUDEX1 HDMI 18Gbps Audio Extractor extracts audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Both input and output HDMI connections support video resolution up to 4K2K@50/60Hz (YUV444) while supporting HDR 8, 10, 10+, and Dolby Vision pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

Key Features

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
• Video resolutions up to 4K2K@50/60Hz (YUV444)
• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
• Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
• Supports HDMI High Bit Rate (HBR) audio pass through
• Audio sample rates up to 192kHz
• HDR 8, 10, 10+, and Dolby Vision (High Dynamic Range) pass through
• Supports CEC bypass
• 3-Year Warranty

Technical Specifications

HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18 Gbps
Video Resolutions
up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit, 10-bit, & 12-bit
HDMI Audio Formats (Pass-through)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats
LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
L/R Audio Formats
Analog Stereo 2CH
ESD Protection
Human body model – ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs
1x HDMI Type A <19-pin female>
Outputs
1x HDMI Type A <19-pin female>
1x L/R Audio Out <3.5mm Stereo Mini-jack>
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
73.5mm/2.9” x 60.7mm/2.4” x 17mm/0.67”
Weight
130g/4.6 oz.
Power Supply Input
AC100 – 240V 50/60Hz
Power Supply Output
DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
1W (Max)
Operation Temperature
32 – 104 Degrees F / 0 – 40 Degrees C
Storage temperature
-4 – 140 Degrees F / -20 – 60 Degrees C
Relative Humidity
20 – 90% RH (no condensation)
