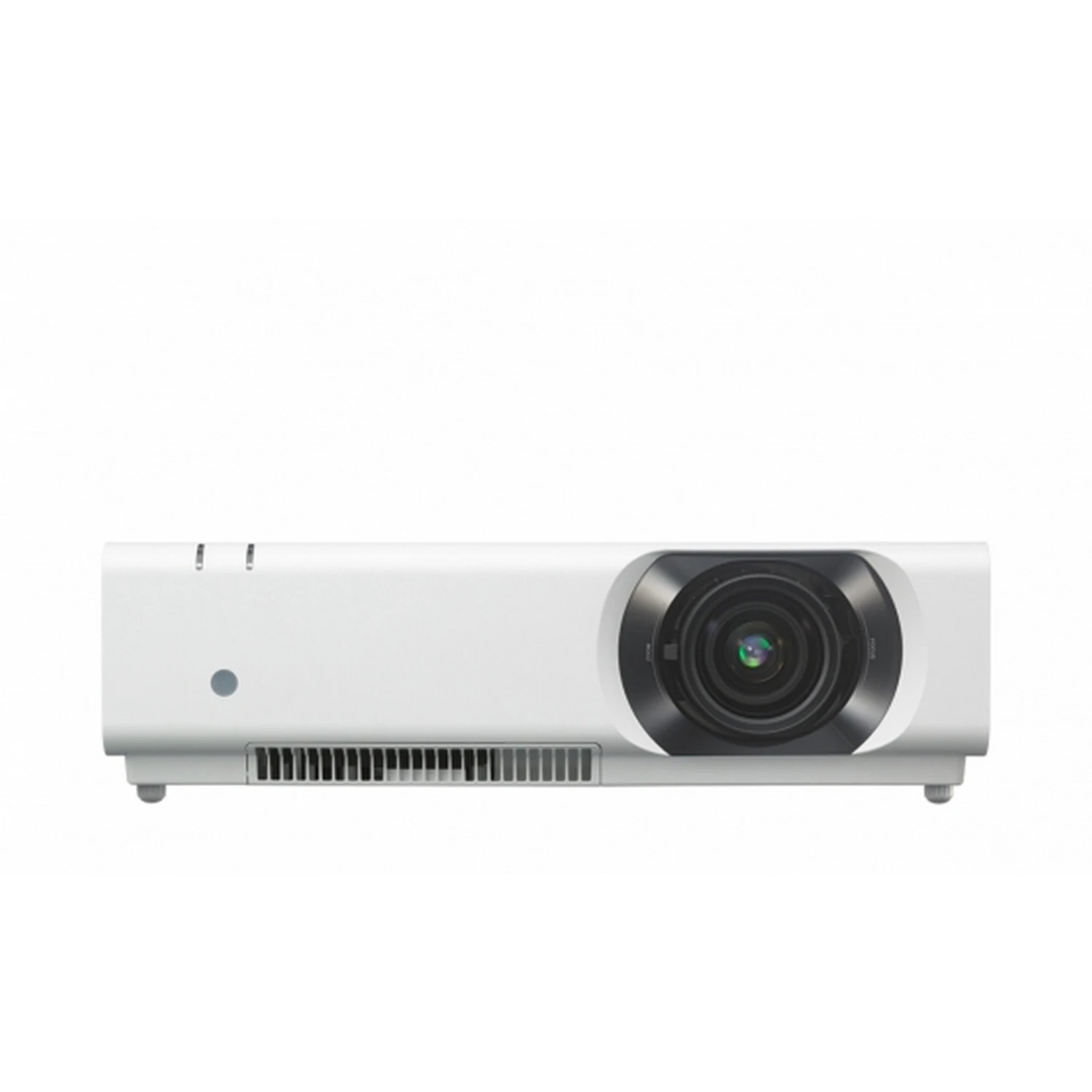

Sony VPL-CH370 WUXGA 3LCD Basic Installation Projector(Sony Vpl Ch370 Wuxga 3lcd Basic Installation Projector)

Sony VPL-CH370 WUXGA 3LCD Basic Installation Projector

The VPL-CH370 delivers an outstanding brightness of 5000 lumens and ultra high-quality images with WUXGA resolution. Sony 3LCD BrightEra panel technology provides higher picture quality, substantially brighter images, higher efficiency, consistent colour stability and longer durability. It also delivers installation flexibility, environment-friendly features, and a low total cost of ownership, in a stylish design that blends into any decor. The lens shift/zoom capability and the image correction features easily allow users to fit any image onto the screen, even from an offset projection angle.

Key Features

• High resolution WUXGA image
• High image quality 3LCD BrightEra natural and vivid colour images with high brightness of 5000 lumens
• Fine lens shift: +/- 5%, Horizontal: +/- 4%
• Blend-in design
• 1.5:1 to 2.2:1 throw ratio
• Advanced energy-saving features

Technical Specifications

Display system
3 LCD system
Display device
Size of effective display area
0.64” (16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels
6,912,000 (1920 – 1200 – 3) pixels
Projection lens
Focus
Manual
Zoom – Powered/Manual
Manual
Zoom – Ratio
Approx. x 1.45
Throw Ratio
1.5:1 to 2.2:1
Lens shift – Powered/Manual
Manual
Lens shift – Range Vertical
+/- 5%
Lens shift – Range Horizontal
+/- 4%
Light source
Ultra high pressure mercury lamp
Wattage
280 W type
Recommended lamp replacement time
*1
Lamp mode: High
2500 H
Lamp mode: Standard
3000 H
Lamp mode: Low
3500 H
Light output
Lamp mode: High
5000 lm
Lamp mode: Standard
3600 lm
Lamp mode: Low
3100 lm
Color light output
Lamp mode: High
5000 lm
Lamp mode: Standard
3600 lm
Lamp mode: Low
3100 lm
Display resolution
Computer signal input
Maximum display resolution: 1920 – 1200 dots*3
Video signal input480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal only; 1080/60p, 1080/50p, 1080/24p
Power requirements
AC 100 V to 240 V, 3.9 A to 1.7 A, 50/60 Hz
Power consumption
AC 100 V to 120 V
Lamp mode: High: 388 W
AC 220 V to 240 V
Lamp mode: High: 367 W
Power Consumption (Standby Mode)
AC 100 V to 120 V
0.3 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V
0.5 W (when “Standby mode” is set to “Low”)
Dimensions (W x H x D) (without protrusions)
Approx. 406 – 113 – 330.5 mm (15 31/32 – 4 7/16 – 13 inches)
