SoundTools SuperCAT 7 EtherCON To EtherCON CAT 7 Cable(Soundtools Supercat 7 Ethercon To Ethercon Cat 7 Cable 3 Foot Black)

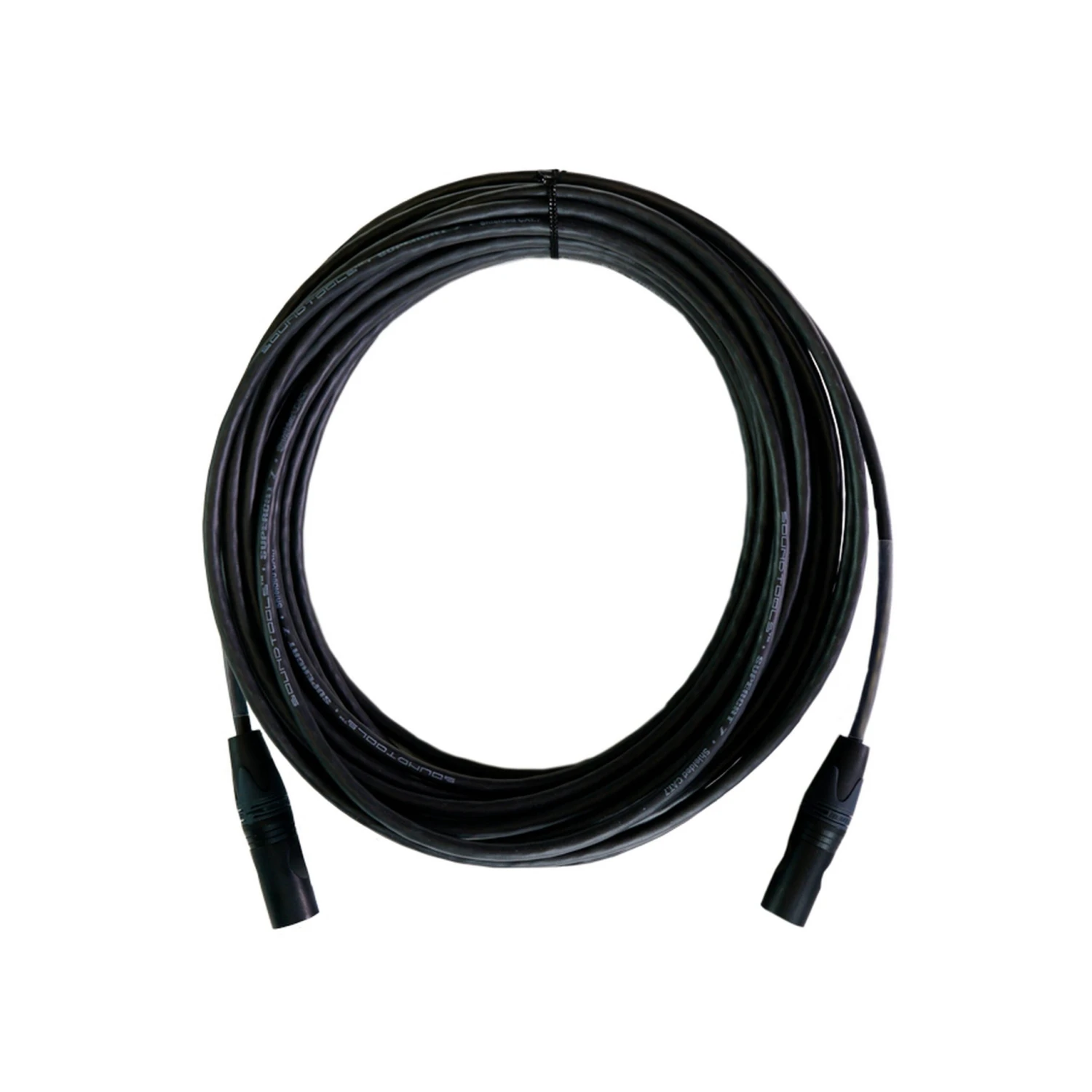

SoundTools SuperCAT 7 etherCON to etherCON CAT 7 Cable

The SoundTools SuperCAT 7 is a performance grade cable with all-weather durability and flexibility. SuperCAT 7 cable is designed to handle the high-speed data requirements of modern digital consoles or can be used to send analog XLR audio, COM, AES3 or DMX using SoundTools products.

DURABLE
Durable and abrasion-resistant thanks to a robust polyurethane halogen-free jacket, and capable of handling extreme temperatures ranging from -20/+60 Degrees Celcius -4/+140 Degrees Fahrenheit. SuperCAT 7 is ready for the toughest indoor or outdoor environments.

FAST
SuperCAT 7 meets CAT7 cable standards for high bandwidth data needs. 26/7 AWG four foil-shielded and precisely-twisted pairs with stranded wire for enhanced shielding and crosstalk rejection. SuperCAT 7 is rated for bandwidth speeds of up to 10Gbp/s @ 600MHz.

PERFORMANCE GRADE
SuperCAT 7 cable is designed to handle the high-speed data requirements of modern digital consoles or can be used to send analog XLR audio, COM, AES3 or DMX using SoundTools products.

Key Features

• Meets CAT7 cable standards
• 6.5mm diameter is easy to coil and lays flat
• Rugged polyurethane (PUR) jacket for maximum protection and flexibility
• Shielded (S/FTP) cable rated for CAT7 applications
• Optimized for data and analog audio over XLR applications
• Usable temperatures ranging from -20/+60 Degrees Celcius -4/+140 Degrees Fahrenheit

Technical Specifications

CAT7
AWG26/7
S/FTP
Halogen free polyurethane jacketed
100 OHMS Impedance
Delay skew
10 ns @ 100 MHz/100 m
Bandwidth
up to 10Gbp/s @ 600MHz
PACKAGE CONTENTS
CAT7 cable terminated with genuine Neutrik etherCON connectors
WARRANTY INFORMATION
Lifetime Happy Human Warranty
