SoundTube PL-10 Series 10-Inch Active DSP Subwoofer(Soundtube Pl 10 Series 10 Inch Active Dsp Subwoofer)

SoundTube PL-10 Series 10-Inch DSP Subwoofer

The PhaseTech PL-10 series combines advanced DSP control with a high-excursion 10″ mica-graphite poly cone driver to deliver precise, room-shaking bass. Available in two enclosure styles—ported (PL-10p) for extended low-end output, or sealed (PL-10s) for tighter transient response—each model features independent high- and low-pass filters, phase control, auto on/off, and user-programmable presets via the MSE Sound app (iOS & Android).

Finished in Gloss Black or Matte White, these handcrafted subwoofers blend seamlessly into any décor. High-quality MDF enclosures, versatile LFE and stereo I/O, and robust 900 W program power make the PL-10 series ideal for anything from dedicated home theaters to distributed audio systems.

Key Features

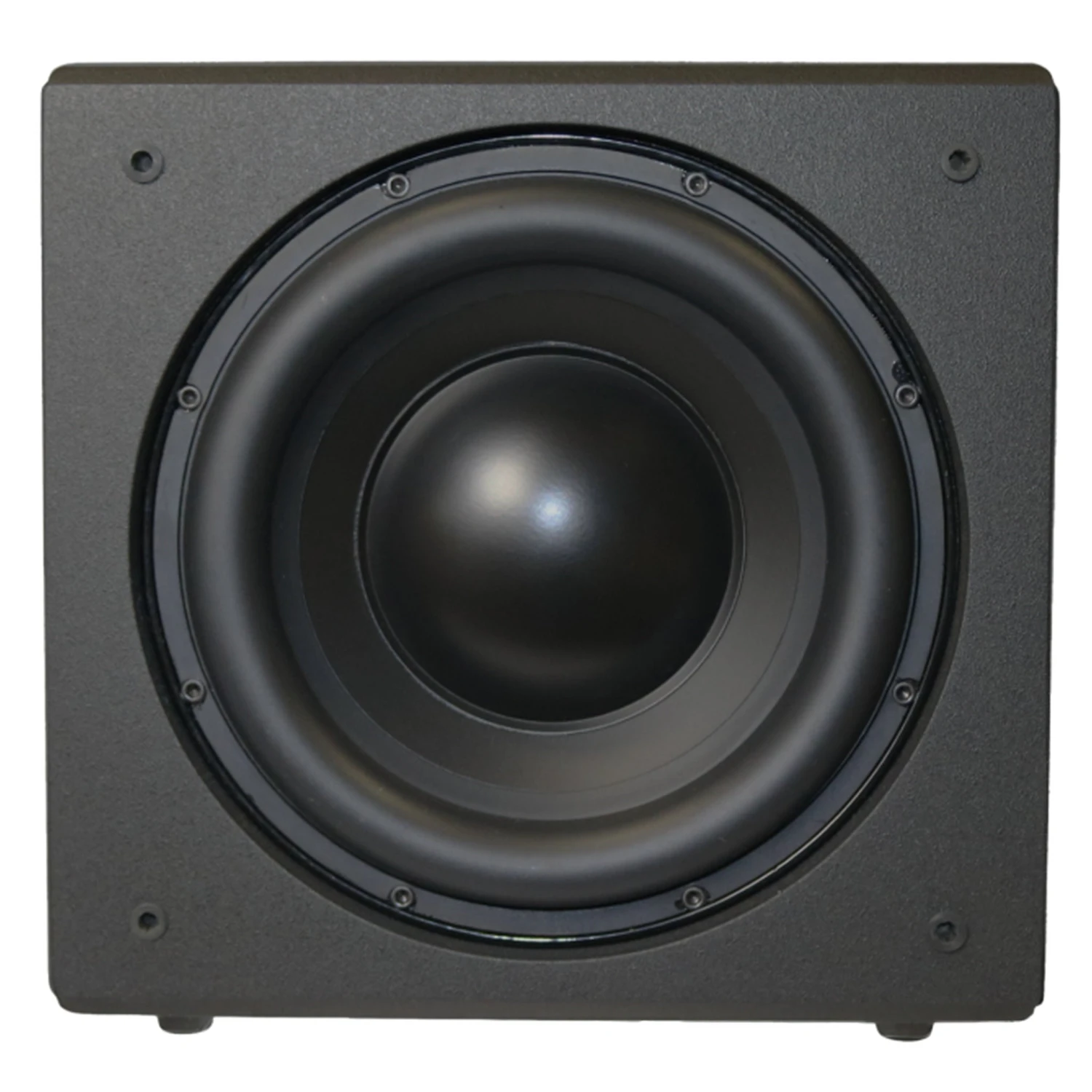

• Driver: 10″ ultra-long-throw mica-graphite poly cone with NBR surround
• DSP Controls: Level, phase, selectable crossovers (40–200 Hz), signal-sense auto on/off, user presets

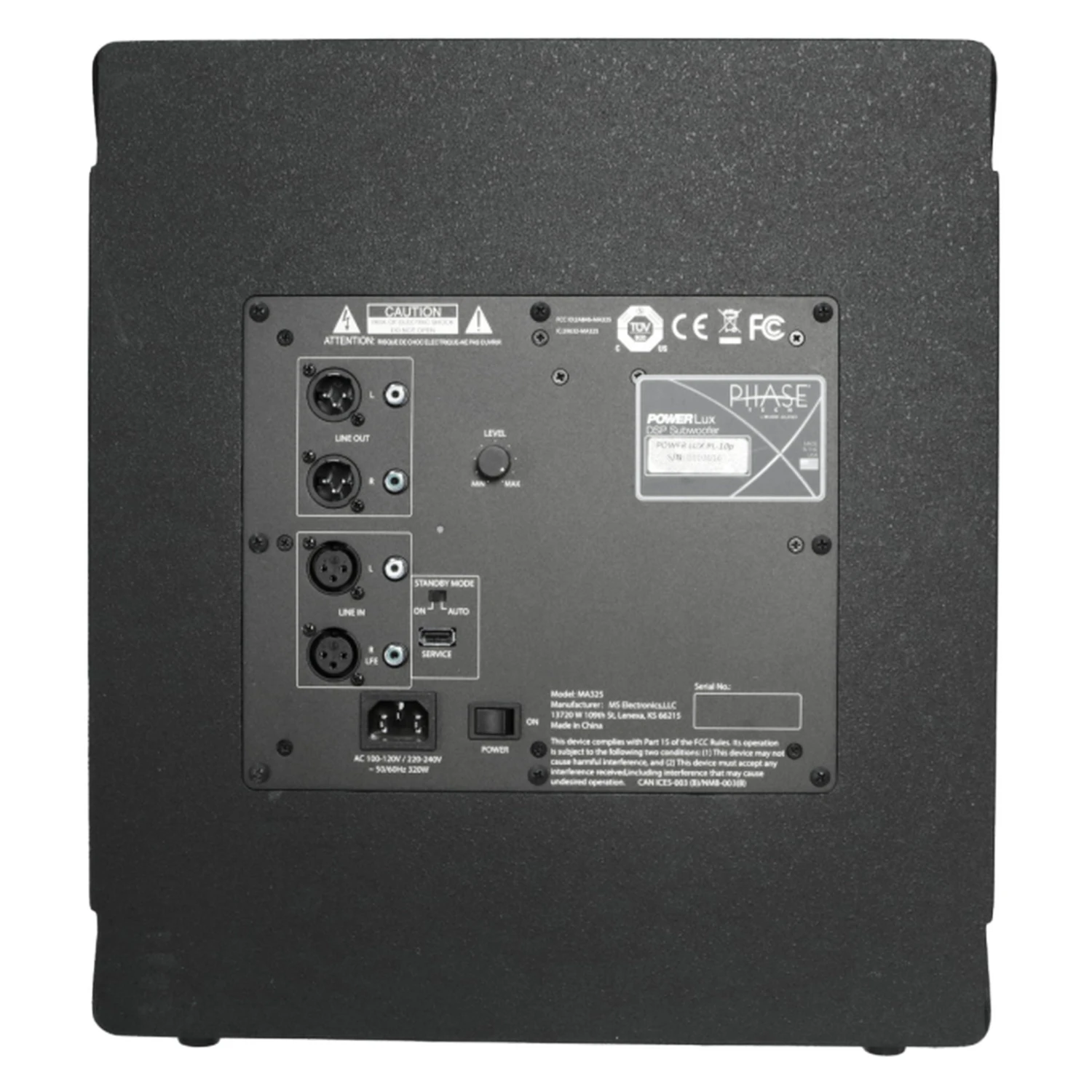

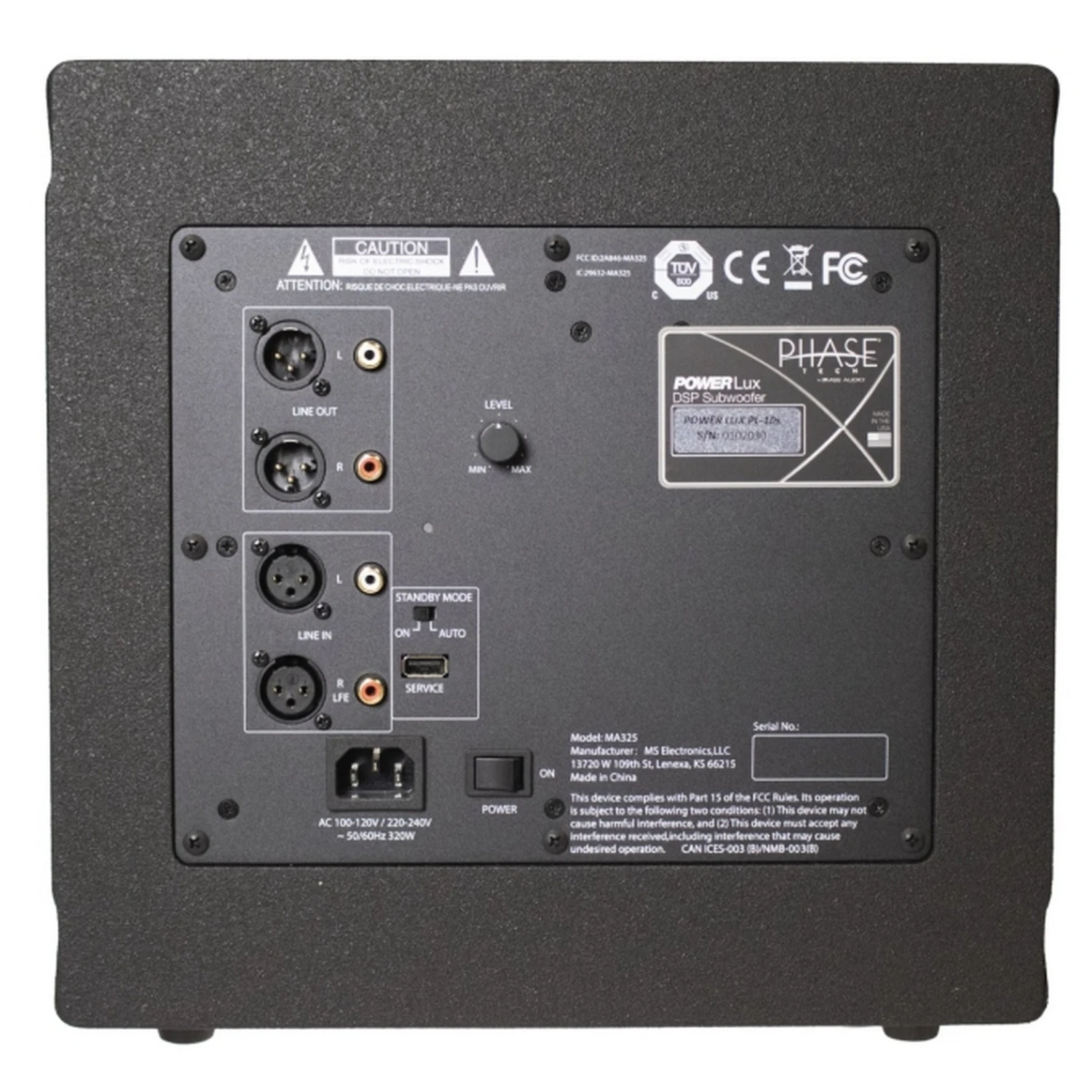

• Inputs/Outputs: LFE in/out, stereo line in/out (RCA) with independent HPF/LPF
• Power Handling: 300 W RMS; 900 W program
• Frequency Response (±3 dB): 19 Hz–300 Hz
• Crossover Options: 300 Hz LFE bypass, 40–200 Hz LPF, or 40–200 Hz HPF
• Enclosure: MDF ported (PL-10p) or MDF sealed (PL-10s)
• Control App: MSE Sound app for iOS & Android

Technical Specifications

• Depth: 17.375″ (441.3 mm)
• Height: 16.5″ (419.1 mm)
• Width/Diameter: 14.5″ (368.3 mm)
• Max Program Power: 900 W

Available Variations

• PL-10p: Ported DSP Subwoofer
• PL-10s: Sealed DSP Subwoofer
