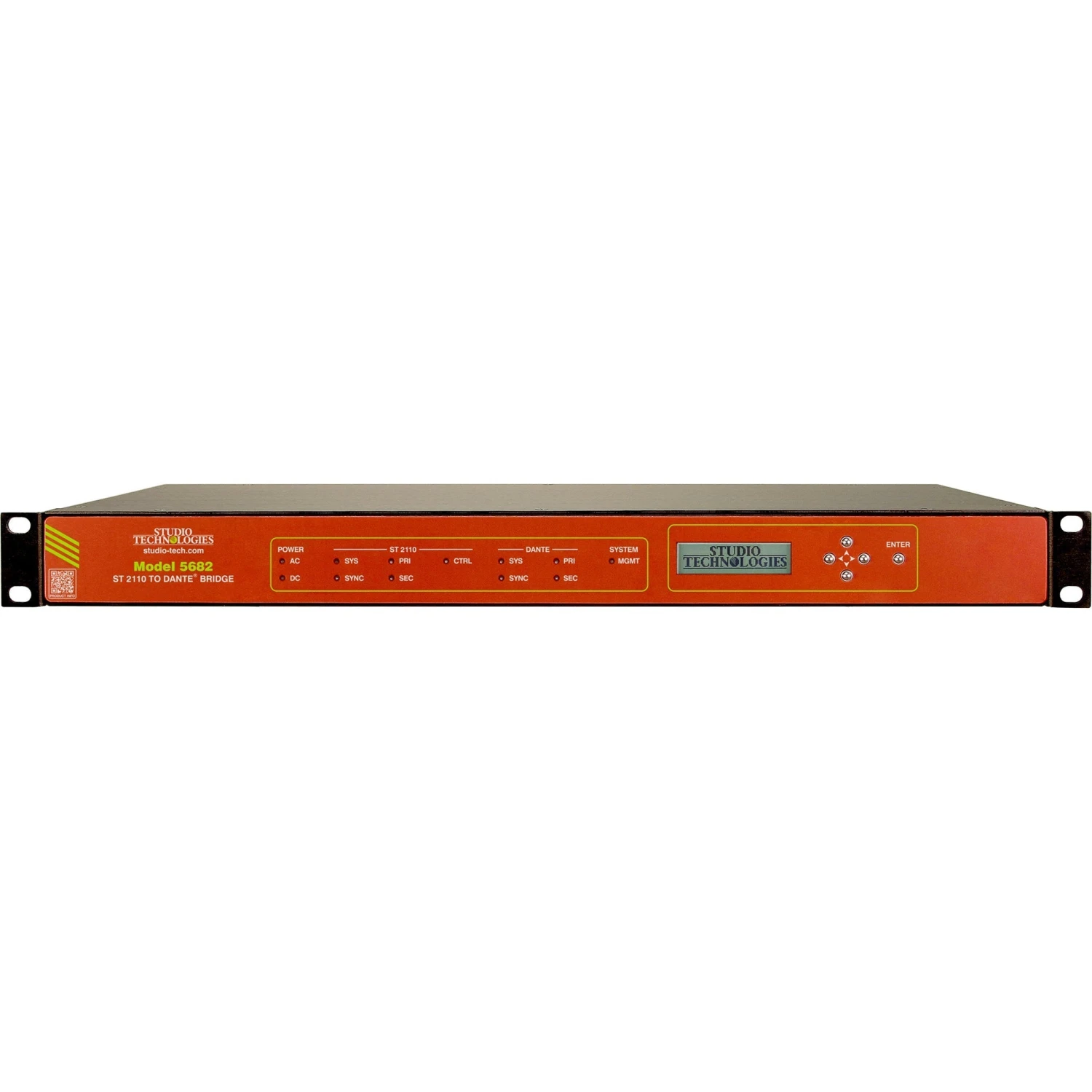

The Studio Technologies Model 5682-02 64-Channel 1RU ST 2110 to Dante Bridge presents a high-performance solution for linking SMPTE ST 2110 audio channels to Dante audio-over-Ethernet channels.

The Model 5682 facilitates bridging ST 2110 and Dante audio signals, which are usually associated with separate local area networks.

It adheres to the SMPTE ST 2110-30 standard for PCM audio signals and the ST 2110-10 standard for signal timing.

On the Dante side, it is compatible with Dante Domain Manager (DDM) software and aligns with the AES67 interoperability standard.

The Model 5682-02 supports up to 64 audio channels and maintains audio signal integrity through internal sample rate conversion (SRC).

Tailored for ST 2110-compliant audio channels and their timing parameters, the device also supports Dante audio-over-Ethernet applications widely used across industries.

The Model 5682 is equipped with three Gigabit Ethernet connections for each ST 2110 and Dante interface.

Front-panel indicators, an LCD display, and pushsummary switches facilitate easy monitoring and configuration adjustments.

Configuration support for the ST 2110 interface includes NMOS, ANEMAN, and JSON formats.

The unit can be powered by 100-240 V, 50/60 Hz or 12 volts DC, with the option for redundant power operation.

Tailored for professional use, the Model 5682 is rack-mountable, designed for continuous 24-hour operation, and complies with industry standards for reliability and performance.

Key Features

Support for SMPTE ST 2110-10, ST 2110-30, and ST 2022-7
Compatibility with Dante audio-over-Ethernet technology with AES67 and DDM support
Capability to handle 64 channels in each direction
Integrated Sample-Rate-Conversion (SRC) capability for maintaining audio signal integrity
Multiple Gigabit Ethernet interfaces for redundant streams and Redundant Dante operation
Option for both AC mains and DC powering
Multiple status LEDs and graphics display for easy monitoring
Lightweight enclosure designed for single rack-space (1RU) mounting.

Technical Specifications

Network Audio Technology – ST 2110
Type
SMPTE ST 2110-10:2017 and ST 2110-30:2017; supports conformance level A (48 kHz streams with 1-8 audio channels at packet times of 1 ms) and level B (48 kHz streams with 1-8 audio channels at packet times of 125 us)
AMWA NMOS Support
IS-04 Discover & Registration and IS-05 Device Connection Management
Redundant Streams
compliant with Level B, SMPTE ST 2022-7:2013 Seamless Protection Switching (8-channel stream at 48 kHz sample rate, packet time 125 us)
Synchronization
per SMPTE ST 2110-10, Precision Time Protocol (PTP) IEEE 1588-2008 Version 2; supported profile IEEE 1588:2008
Discovery, Control, and Connection Management
includes web user interface, JSON API, NMOS, and Merging Technologies’ ANEMAN Audio Network Manager
Audio Performance and Transport
Digital
Audio Type
pulse-code modulation (PCM)
Sampling Rate
48 kHz
Bit Depth
24
Number of Sender (Output) Channels
64
Number of Receiver (Input) Channels
64
Network Audio Technology – Dante
Type
Dante audio-over-Ethernet
AES67-2018 Support
Yes
Dante Domain Manager (DDM) Support
Yes
Ethernet Interface Configuration
Switched or Redundant
Sample Rates
44.1, 48, 88.2, or 96 kHz
Pull-Up/Down Support
Yes
Bit Depth
up to 24 bits
Number of Transmitter (Output) Channels
64 (44.1 or 48 kHz sample rates) or 32 (88.2 or 96 kHz sample rates)
Number of Receiver (Input) Channels
64 (44.1 or 48 kHz sample rates) or 32 (88.2 or 96 kHz sample rates)
Dante Audio Flows
32 receiver and 32 transmitters
Network Interfaces
3, ST 2110, Dante, and System Management
Physical Ethernet Connections, ST 2110
3; Primary, Secondary, and Control
Physical Ethernet Connections, Dante
2; Primary and Secondary
Physical Ethernet Connection, System Management
1
Ethernet Connection Type
1000BASE-T Gigabit Ethernet (GigE) per IEEE 802.3ab (10 and 100 Mb/s not supported)
Ethernet Connection NIC Status LEDs
one link and one activity for each Ethernet connection
Audio Performance
Type
fully digital paths between ST 2110 and Dante network interfaces (by way of sample-rate-converter (SRC) functions)
Dynamic Range
147 dB at 48 kHz sample rate, 148 at 96 kHz sample rate, A-weighted
Distortion (THD+N)
-140 dB at 48 kHz sample rate, -143 dB at 96 kHz sample rate, measured at -1 dBFS, 1 kHz
Internal Digital Audio Processing
32 bits
Input-to-Output Audio Processing Latency
<500 uSec
Front-Panel LEDs
12, dual-color
Functions
provides indication of condition of incoming AC and DC power, ST 2110 status, Dante status, and system management interface status
Back-Panel LEDs
14
Functions
provides status indication of both firmware update functions and six Ethernet interfaces
Power Sources
AC Mains
100 to 240 V, 50/60 Hz, 8 W maximum
DC
10 to 16 V, 0.6 A max
Connectors
Ethernet
6, RJ45 jacks
USB
2, Type A receptacles (used only for firmware updating)
DC Input
4-pin male XLR (pin 1 negative, pin 4 positive)
AC Mains Input
3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)
Environmental
Operating Temperature
32 to 122 Degrees F
Storage Temperature
-40 to 158 Degrees F
Humidity
5 to 95%, non-condensing
Physical
Dimensions
19.0 x 1.72 x 8.0 inches
Mounting
one space (1RU) in a standard 19-inch rack
Weight
3.3 pounds (1.5 kg)
Item Includes
1x Studio Technologies Model 5682-02 1RU ST 2110 to Dante Bridge with 64 Audio Channel Linking – 44.1 or 48 kHz – AES67/DDM
