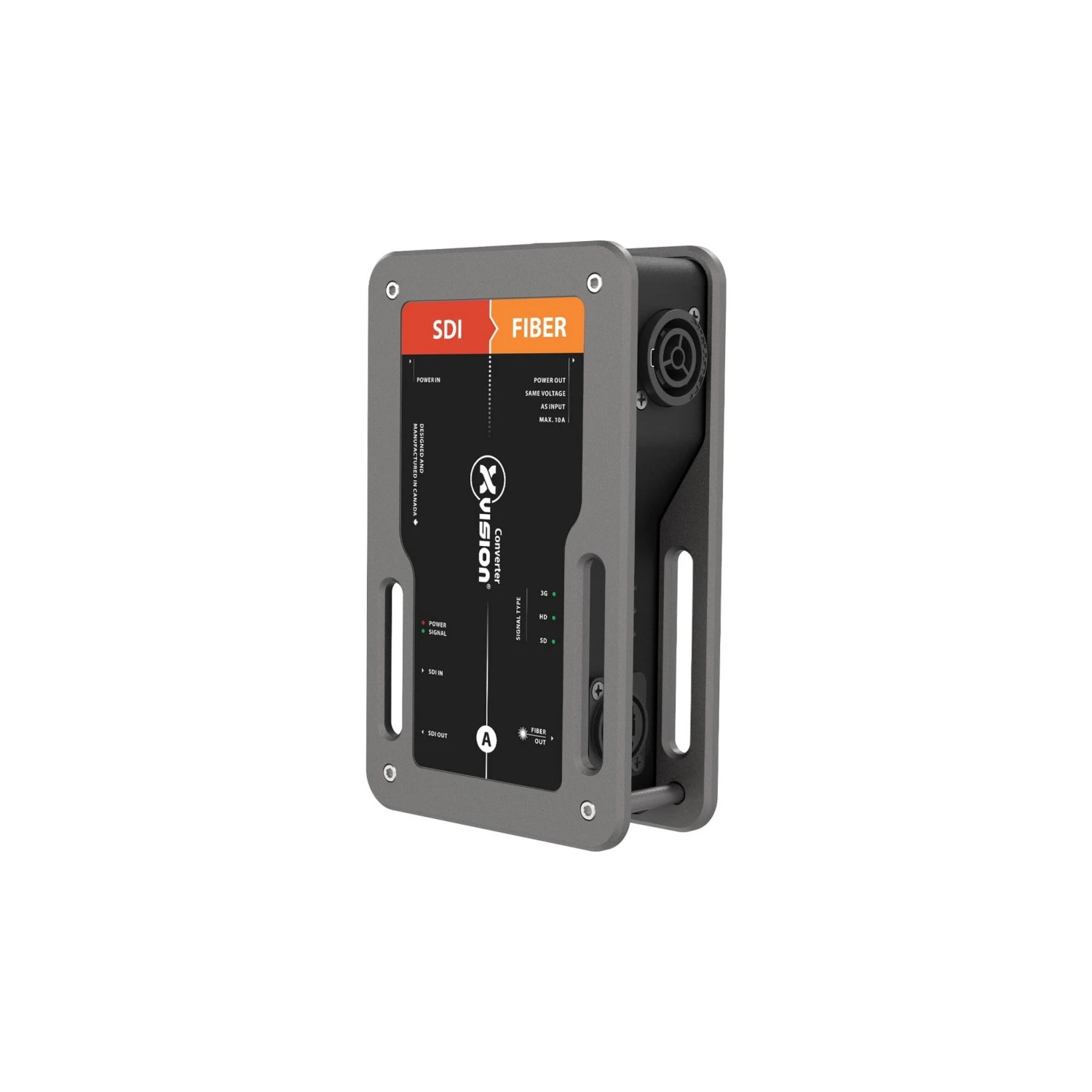

Theatrixx 3G-SDI to Fiber with Embedded Audio, Single-Mode or Multi Mode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD

Theatrixx 3G-SDI to Fiber with Embedded Audio, Single-Mode or Multi Mode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD

The SDI to Fiber True1 Converter is designed to seamlessly convert 3G/HD/SD SDI signals to fiber optics, ensuring high-quality video transmission over long distances. With support for various video formats including 3G-SDI Level A and B, HD-SDI, and SD-SDI, this converter is ideal for professional broadcasting and AV applications. Its compact design and built-in power supply make it easy to integrate into any setup, while the choice of multimode or singlemode fiber options provides flexibility for different installation needs.

Notable features include a robust build quality, a range of supported SMPTE standards, and a user-friendly interface. The converter also offers loop-thru capabilities and a variety of connector options, making it a versatile choice for any video professional looking to enhance their workflow.

Key Features:

• Video Input: 1 x 3G/HD/SD SDI BNC
• Loop-thru: 1 x 3G/HD/SD SDI BNC
• Video Output: Choice of Multimode or Singlemode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
• Supported Signals: 3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
• SMPTE Standards: 425 M Level A & B, 424 M, 292 M, 259 M
• Operating Temperature: 0-40 °C
• Power Consumption: 15W
• Voltage Range: 100-240V, 50-60Hz

Technical Specifications

• Measuring System: Metric
• Dimensions: 50 mm (H) x 180 mm (D) x 107 mm (W)
• Weight: 1 kg (2.2 lbs)
• Material: Metal chassis
• Finish: Black powder coat
• Lock Type: PowerCON True1 input/output
• Relative Humidity: 0% to 90% non-condensing
• Courtesy Outlet: Max 10A, same voltage as input

What’s in the Box

• xVision Converter SDI to Fiber True1
• AC Mains PowerCON True1 cable (1.5m, specify plug type at ordering)
