Theatrixx 3G-SDI to Fiber, SD-SDI, with Embedded Audio, Single-Mode or Multi Mode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD

TTheatrixx 3G-SDI to Fiber – PWCA In/Edison Thru, Single-Mode or Multi Mode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD

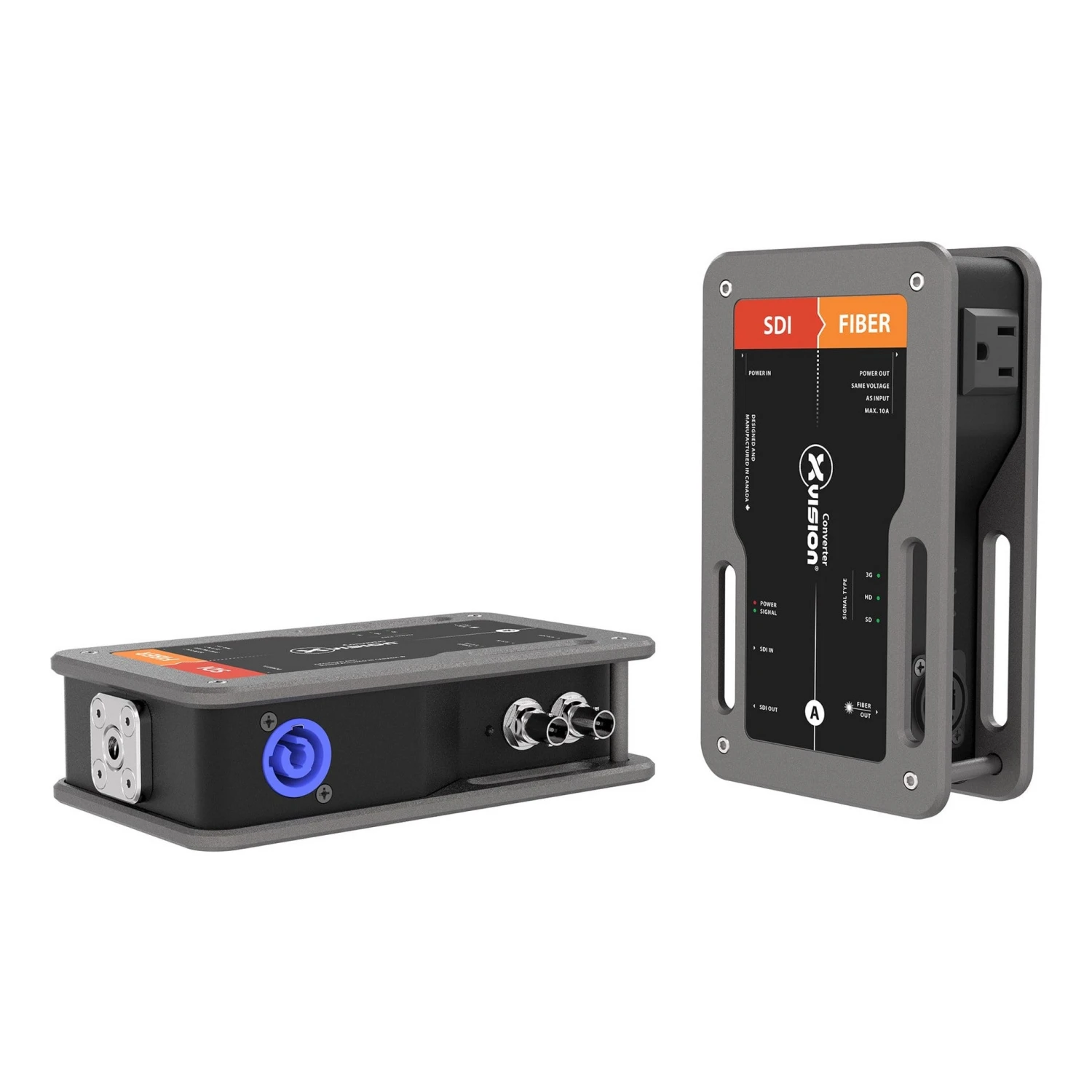

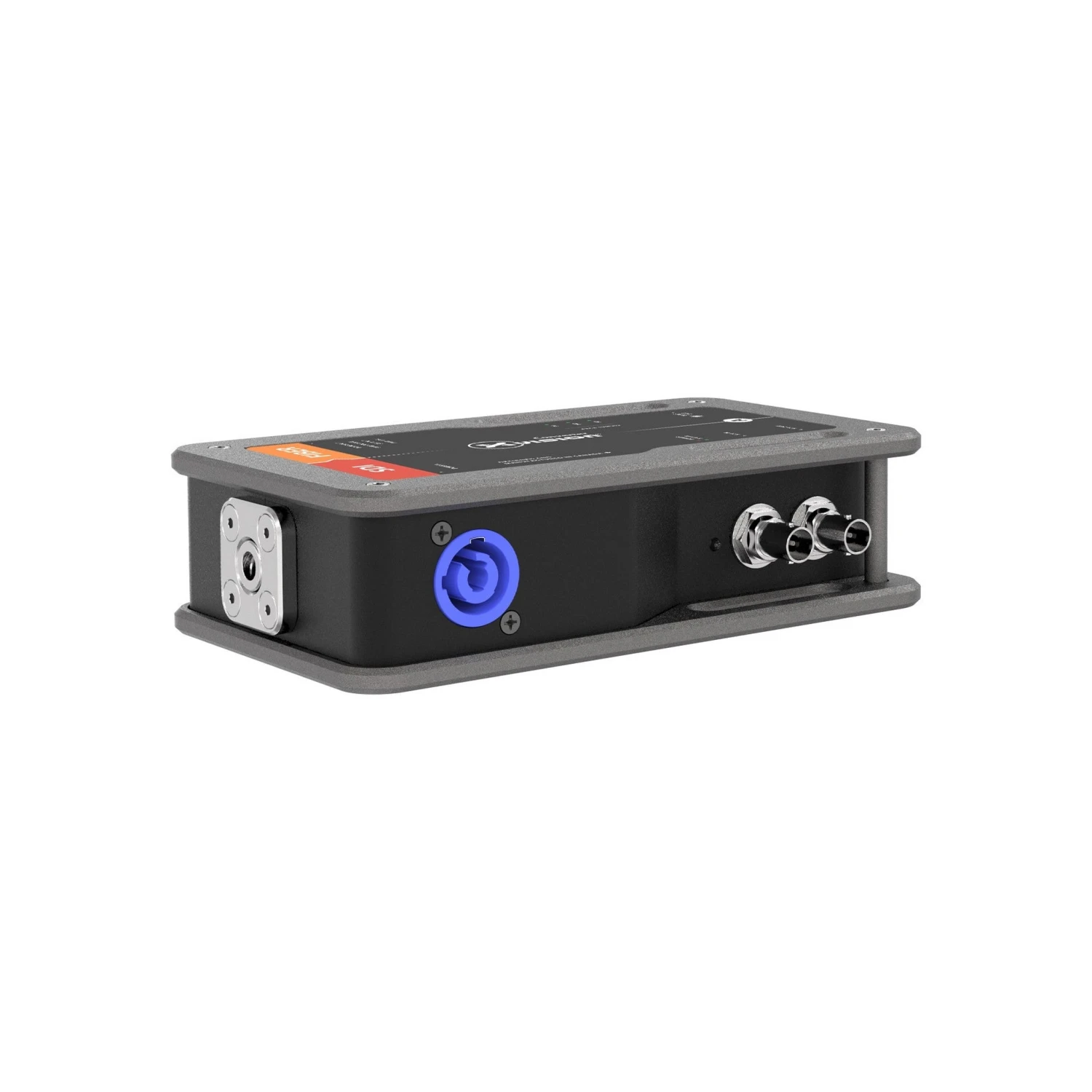

The Theatrixx SDI to Fiber Converter is designed for high-performance video signal conversion, supporting 3G-SDI, HD-SDI, and SD-SDI formats with embedded audio. Its compact design and robust build quality make it suitable for both studio and field applications, ensuring reliable signal transmission over fiber optics. The converter features multiple output options, including multimode and singlemode fiber, providing flexibility for various installation needs.

With a built-in power supply and a range of connectivity options, the SDI to Fiber Converter is easy to integrate into existing setups. It meets SMPTE standards for video formats, ensuring compatibility with a wide range of professional video equipment. The device operates efficiently within a temperature range of 0-40 °C and can handle relative humidity levels from 0% to 90% non-condensing.

Key Features:

• Video Input: 1 x 3G/HD/SD SDI BNC
• Video Output: Choice of Multimode or Singlemode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
• Supported Signals: 3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
• Power Consumption: 15W
• Operating Temperature: 0-40 °C
• Dimensions: 50 mm (H) x 180 mm (D) x 107 mm (W)
• Weight: 1 kg (2.2 lbs)

Technical Specifications

• Measuring System: Metric
• Dimensions: 50 mm x 180 mm x 107 mm
• Material: Metal housing
• Finish: Durable powder coat
• Lock Type: N/A
• Relative Humidity: 0% to 90% non-condensing

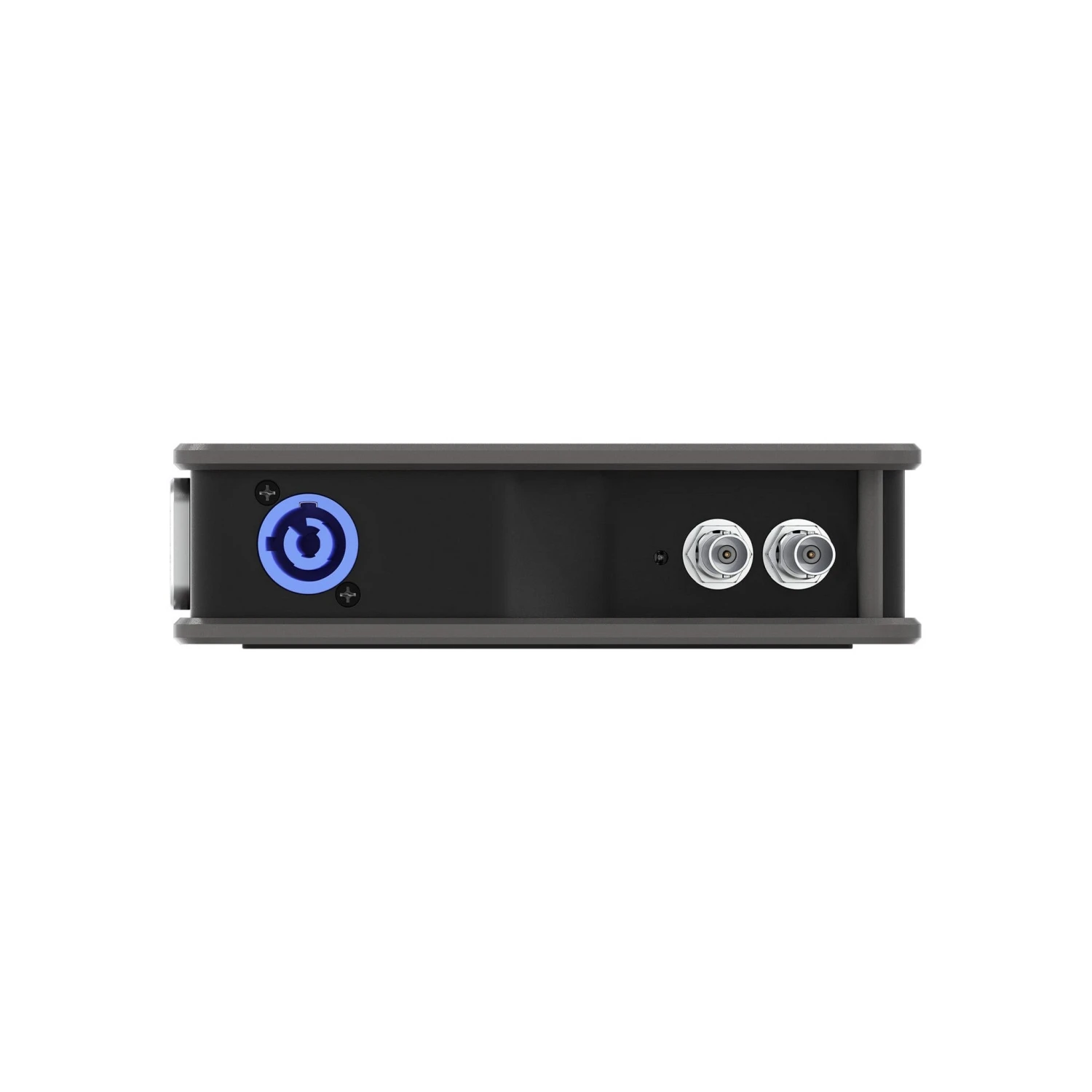

• Power Supply: Built-in power supply with PowerCON input
• Voltage Range: 100-120V, 50-60Hz (100-240V available with PowerCON True1)

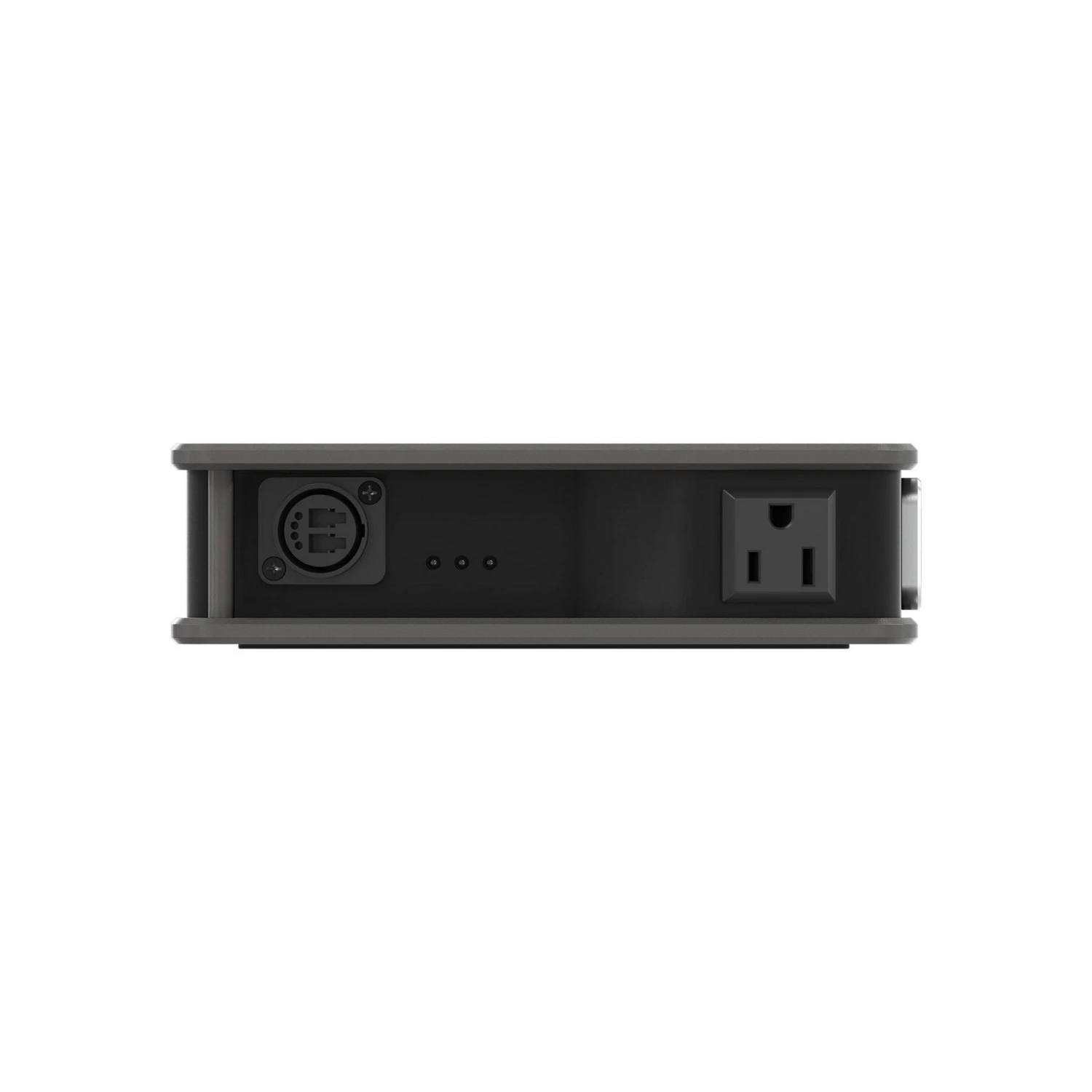

• Courtesy Outlet: Max 10A, same voltage as input

What’s in the Box

• xVision Converter SDI to Fiber
• AC Mains to PowerCON cable (1.5m, specify plug type at ordering)
