Traynor TC810 8 X 10 Inch 1600 Watt Bass Cabinet(Traynor Tc810 8 X 10 Inch 1600 Watt Bass Cabinet)

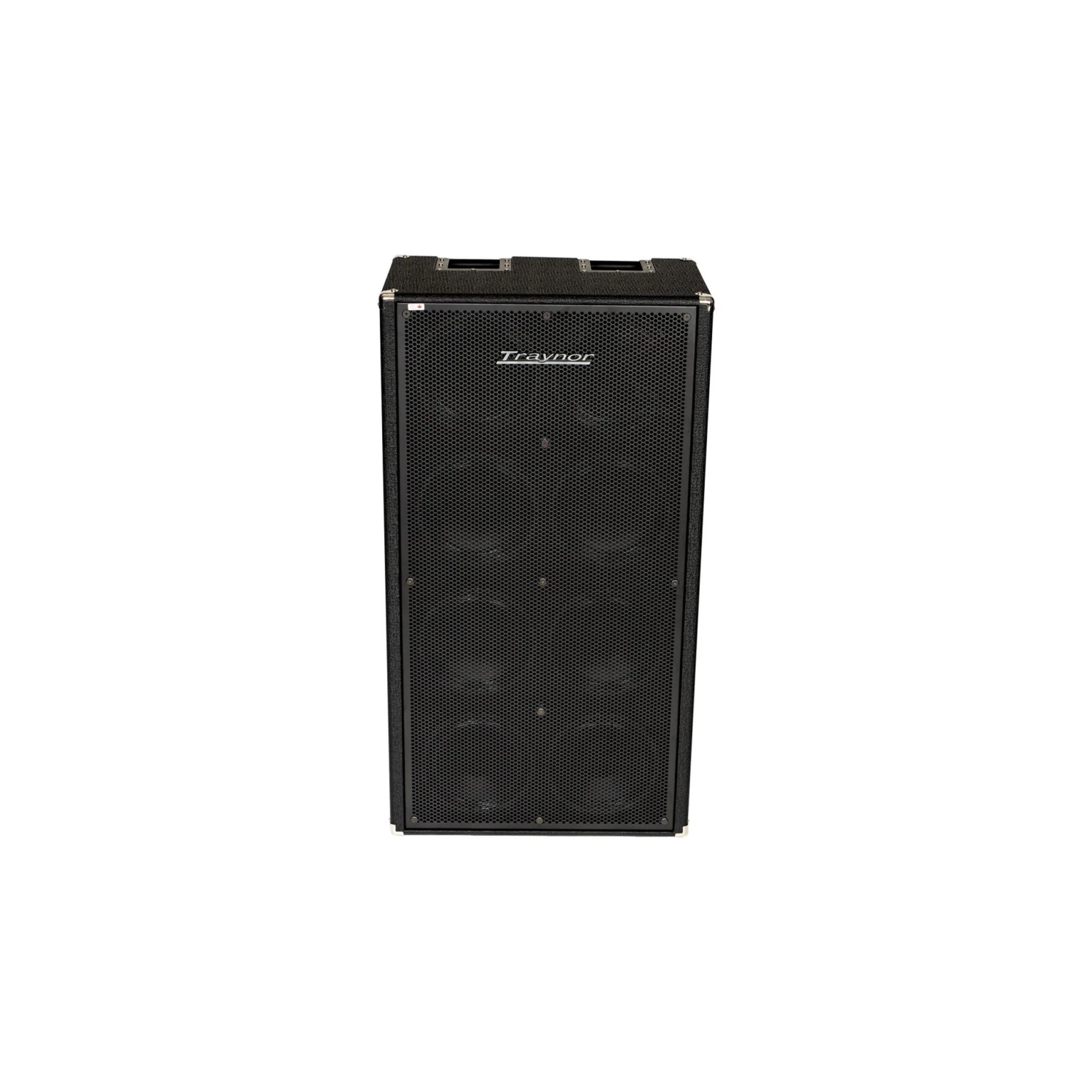

Traynor TC810 8 x 10 Inch 1600 Watt Bass Cabinet

Not for the weak hearted, the biggest bass cabinet Traynor offers is the 1600-Watt TC810. Built to be seen and heard, the TC810 workhorse of the line is for the player who needs to be able to deliver punishing sound pressure levels night after night. Solid plywood cabinet construction, all-metal grille, all-metal handles, skid rails and wheels ensure unmatched reliability over the long haul. Innovative user switchable input configuration on the jack-plate allows the TC810 to act as two 8-ohm 4×10 cabinets for bi-amp operation, or as a single 4-ohm 8×10 behemoth capable of handling up to 1600 watts of pure bass.

Key Features

• Solid plywood Cabinet Construction
• Heavy Duty Nubtex Covering
• All-Metal Handles
• Switchable Dual 8 Ohm or Mono 4 Ohm Operation
• Heavy Duty Wheels & Skid Rails

Technical Specifications

Cabinet Program Power (Watts)
1600 / 800 (x2)
Cabinet Impedance (Ohms)
4 / 8 (x2)
Speaker Configuration – LF (Size / Power)
8×10
Frequency Response (Hz +/-3dB)
40 – 7k
Inputs
2 Speakon / 2 1/4-inch
Other Features
Metal Corners
Tiltback Wheels
Metal side, top and bottom bar handles
16 guage punched metal grille
Switchable 4 ohm Mono / dual 8 ohm Stereo operation
Dimensions (DWH, inches)
16 x 26.25 x 49
Dimensions (DWH, cm)
40.6 x 66.7 x 124.5
Weight (lbs / kg)
156.5 / 71
