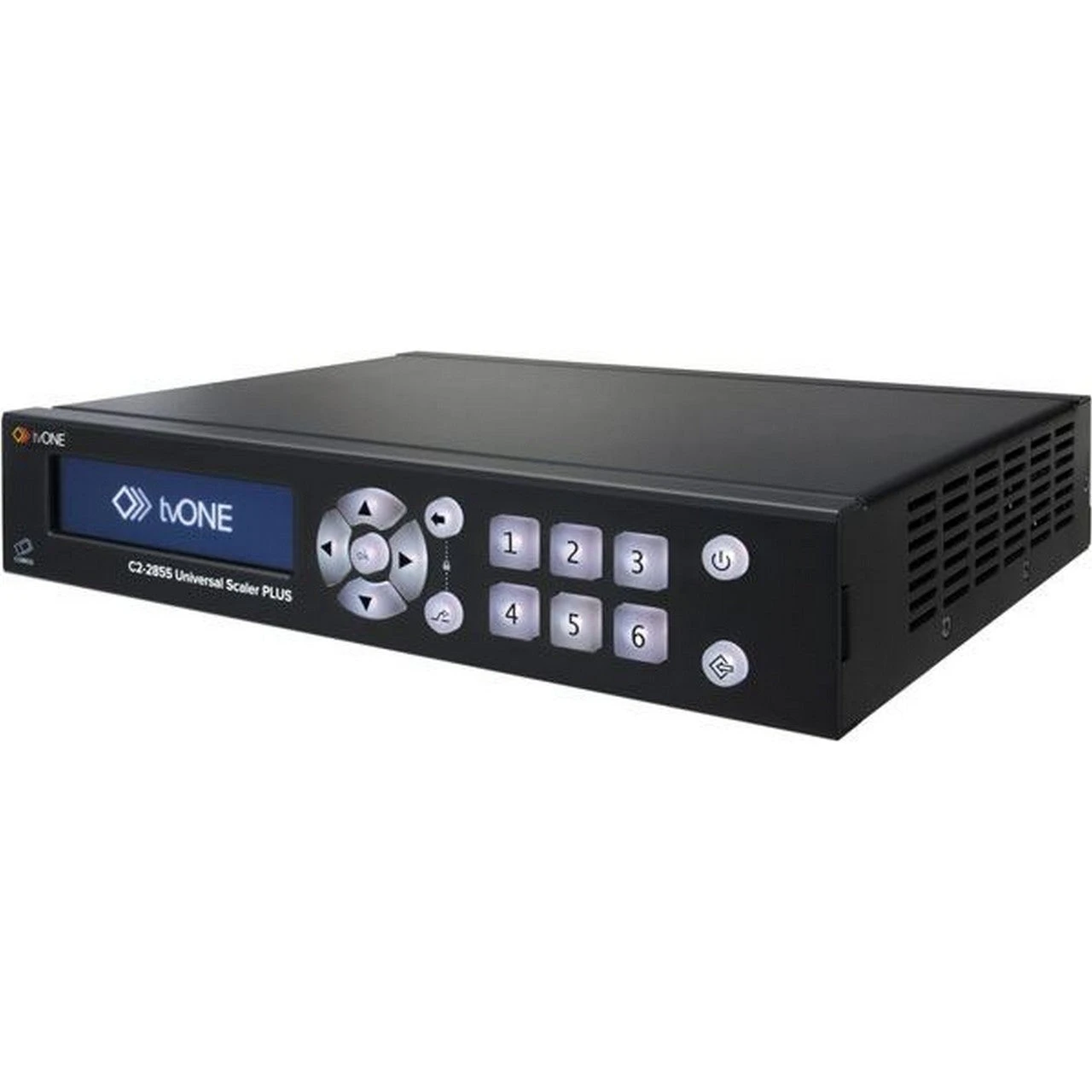

tvONE C2-2855 Universal Scaler Plus

C2-2855 Universal Scaler Plus is first in a new generation of high-performance scalers that provides best-in-class video scaling and format conversion along with revolutionary, intuitive user interface tools. This new design has more input/output flexibility than any other previous tvONE scaler, and it can be set up in less than 1/3 the time of the previous generation. The unit can be managed from the front panel with its new, crystal clear OLED display and color-modulated, backlit summarys or by IP via computer-based control panel. An RS232 serial interface is also provided for use with 3rd party control systems.

Living up to its designation as a “Universal Scaler” the C2-2855 supports SD/HD/3G-SDI, HDMI, DVI, Composite Video, YC, YUV, YPbPr or RGB, on both inputs and outputs. In addition to extremely high quality scaling and conversion, the C2-2855 also provides powerful Picture-in-picture, keying and logo insertion featuress . It stores up to 5 still images and 5 logos for layering in the output video. Twelve user-defined presets are readily available for instant, on-the-fly adjustment for diverse customized applications.

Audio Advanced audio architecture provides integrated 4×1 audio switching. The four impedance-independent unbalanced inputs follow the video selection. A rear panel terminal block and a 3.5mm jack-socket provides versatile access. Embedded Audio Support allows any audio input to be embedded on the HDMI, DVI, and SDI outputs. The C2-2855 can also de-embed audio input from HDMI or SDI signals for routing to analog audio outputs.

Key Features

• Up/Down/Cross Conversion
• Digital Inputs: SD/HD/3G-SDI, DVI-U*, HDMI (DVI 1.0, HDCP 1.4)
• Analog Inputs: YUV/YPbPr, RGB/YPbPr, CV, YC
• Digital Outputs: SD/HD/3G-SDI, DVI-U*, HDMI (DVI 1.0, HDCP 1.4)
• Analog Outputs: DVI-U* (RGB/YPbPr/YUV), CV, YC
• Analog: PC to 1920×1080, HDTV to 1080p/60
• HDMI & DVI : PC to 1920×1200, HDTV to 1080p/60
• Supports: NTSC, PAL, PAL-M, PAL-N
• Motion Compensation & 3:2 Pulldown
• Temporal Interpolation & Diagonal Interpolation
• Automatic Incoming Resolution Detection
• Auto-Set Calibrate – Automatic picture sizing of PC inputs
• Auto-Switching Automatically switch between connected inputs
• 4:4:4 Full bandwidth Chroma Sampling for RGB sources
• 4:2:2 for SDI, YC and CV sources
• HDMI YUV support for either 4:4:4 or 4:2:2 sampling
• Video signal parameter adjustments
• Integral 4×1 Stereo Analog Audio Routing Switcher, fully integrated with digital audio
• Stereo Audio Embedding on capable outputs (DVI-U*, HDMI, SDI)
• RS-232 and IP Interface for Control Software
• Variable Image Zoom to 10X and Shrink to 10%
• Genlock
• Framelock
• PIP, Chromakey and Lumakey
• Optional Single/Dual Rackmount Kit

Technical Specifications

Video Input
Television Standards
NTSC, PAL, PAL-M, PAL-N, SECAM
Composite Video
1x via BNC & 1x via DVI-U
YC (S-Video)
1x via 4-Pin Mini-DIN & 1x via DVI-U
HDTV
1x via HDMI (DVI 1.0, HDCP 1.4) 1x via DVI-U
SD/HD/3G-SDI
1x via BNC
Computer Inputs
Signal Type
1x Analog via PC/HD HD15, 1x DVI-U
Format
RGBHV, RGBS, RGsB, YPbPr, YUV
Analog Signals
PC to 1920×1080, HD to 1080p/60
DVI & HDMI signals
PC to 1920×1200, HD to 1080p/60
Video Outputs
Television Standards
NTSC, PAL, PAL-M, PAL-N
Composite Video
1x via BNC
YC (S-Video)
1x via 4-PIN Mini-DIN
YUV, YPbPr
1x via DVI-U
HDTV
1x via HDMI
CEC pass-through
SD/HD/3G-SDI
1x via BNC
Computer Outputs
Signal Type
1x DVI-U* & 1 x HDMI
Format
RGBHV, RGBS, RGsB, YPbPr
Audio Input/Output
Inputs
3x Unbalanced via Terminals,
1x Unbalanced via 3.5mm jack
1x HDMI, 1x DVI-U*, 1x SDI
Outputs
Unbalanced via Terminals
1x HDMI, 1x DVI-U*, 1x SDI
De-embedding support
1 stereo pair at 32 kHz, 44.1 kHz, 48kHz from HDMI, 48kHz SDI
Embedded support
1 stereo pair at 48kHz
Control Methods
Front Panel
RS-232 Interface
IP Interface
Control Software included
Warranty
Limited 5 Years Parts and Labor
Size (H-W-D)
42 x 218 x 189mm (1.63″ x 8.6″ x 7.4″)
Weight (Net)
1.26 Kg (2.78 lbs) excluding PSU
