Ubiquiti RocketDish High-Gain 5 30 DBi GHz Outdoor Antenna(Ubiquiti Rocketdish High Gain 5 30 Dbi Ghz Outdoor Antenna)

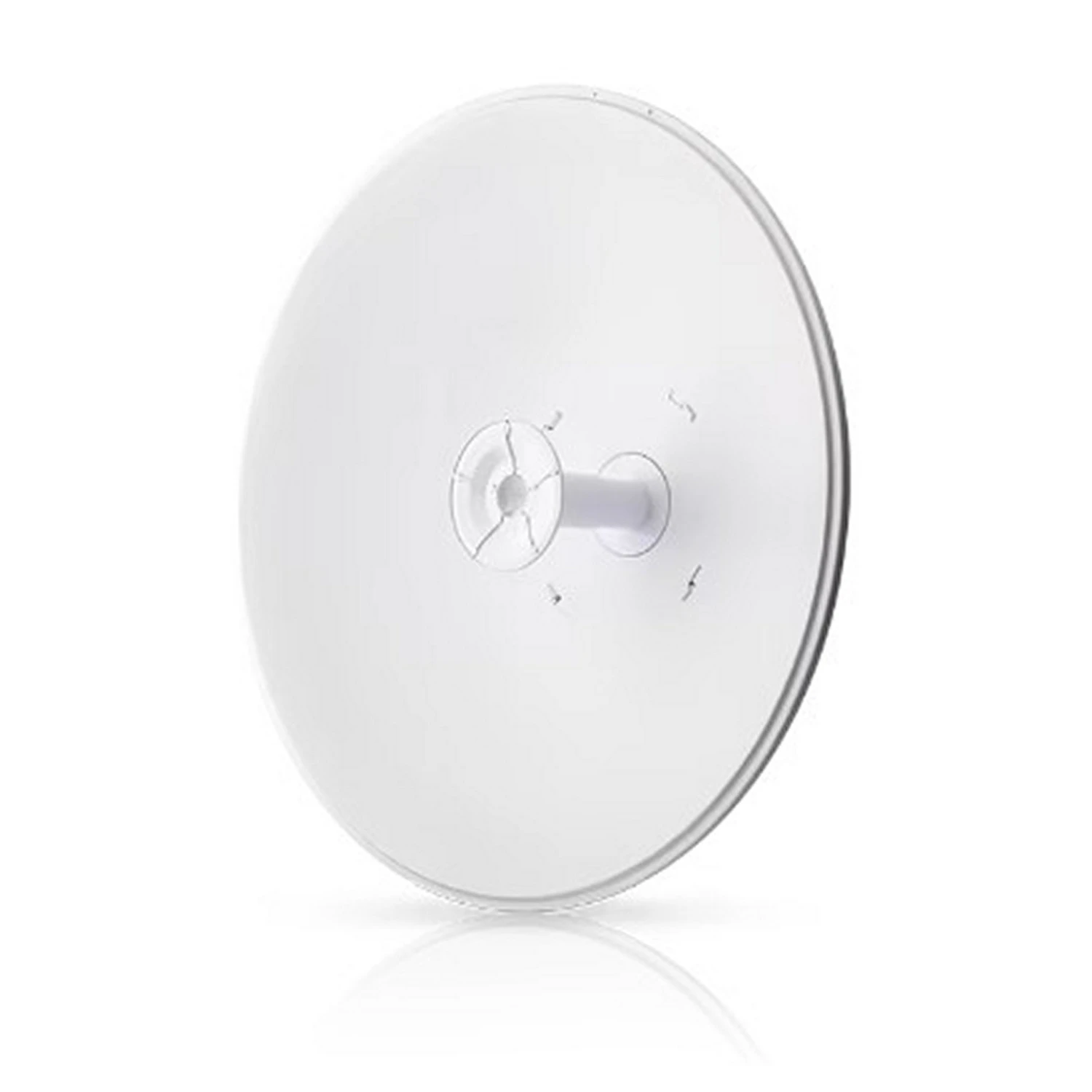

Ubiquiti RocketDish RD-5G30-LW High-Gain 5 GHz Antenna

The Ubiquiti RocketDish RD-5G30-LW is a high-performance antenna optimized for point-to-point connectivity in the 5 GHz range. With its 30 dBi gain, it delivers long-range, high-throughput performance in demanding environments. This antenna features dual-linear polarization for improved signal quality and incorporates an extended depth reflector to minimize interference. Built for durability, the RD-5G30-LW is perfect for outdoor installations in harsh conditions, providing reliability for both residential and commercial applications.

Key Features

• 30 dBi gain for enhanced long-range performance
• Dual-linear polarization for superior signal quality
• Extended depth reflector minimizes interference in co-location setups
• Rugged design with weatherproof connectors for outdoor use
• Compatible with the Rocket Prism 5AC for high-performance applications

Technical Specifications

Dimensions: 650 x 650 x 386 mm (25.6 x 25.6 x 15.2″)
Weight: 16.31 lb (7.4 kg)
Frequency Range: 5.1 – 5.9 GHz
Gain: 30 dBi
HPOL Beamwidth: 5.8° (3 dB)
VPOL Beamwidth: 5.8° (3 dB)
F/B Ratio: 30 dB
Max. VSWR: 1.6:1
Wind Loading: 790 N @ 200 km/h (178 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 35 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
