Ubiquiti U6 Mesh Pro WiFi 6 Access Point, Dual-Band, Outdoor Use(Ubiquiti U6 Mesh Pro Wifi 6 Access Point Dual Band Outdoor Use)

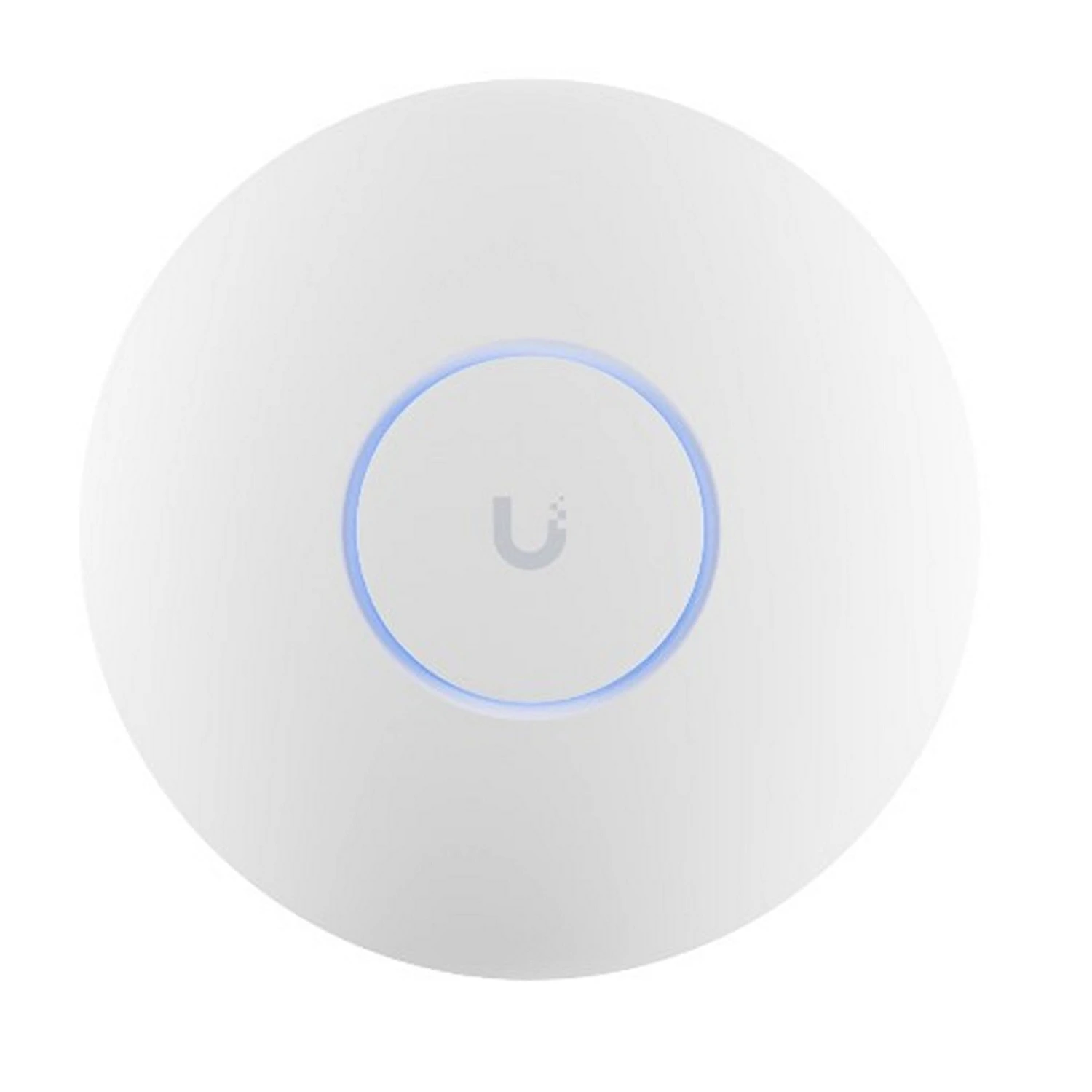

Ubiquiti U6 Long-Range Access Point

The Ubiquiti U6 Long-Range (U6-LR) Access Point offers superior WiFi 6 performance, ideal for large spaces with up to 2,000 sq. ft. of coverage. With a high-speed data rate, it supports more than 350 connected devices. Designed for both residential and commercial settings, this access point uses PoE+ for easy installation and energy efficiency. Its weatherproof, rugged design makes it suitable for various environments, ensuring reliable connectivity even in challenging conditions.

Key Features

• WiFi 6 (802.11ax) with 4×4 MIMO for maximum performance
• Up to 2.4 Gbps on 5 GHz for fast, reliable connectivity
• Supports 350+ concurrent clients
• Weatherproof IP54-rated enclosure
• Power over Ethernet (PoE+) support for easy installation

Technical Specifications

Dimensions: Ø220 x 48 mm (Ø8.7 x 1.9″)
Weight: Without mount: 800 g (1.8 lb), With mount: 930 g (2.1 lb)
Enclosure material: Polycarbonate
Mount material: Stainless steel (SUS304)
Weatherproofing: IP54

Networking interface: (1) GbE RJ45 port
Management interface: Ethernet, Bluetooth
Power method: PoE+, Passive PoE (48V)
Power supply: UniFi PoE switch or 48V, 0.5A PoE adapter (Not included)
Supported voltage range: 44—57V DC
Max. power consumption: 18.5W
Max. TX power: 2.4 GHz: 26 dBm, 5 GHz: 26 dBm
MIMO: 2.4 GHz: 4×4 (SU-MIMO), 5 GHz: 4×4 (DL/UL MU-MIMO)
Max. data rate: 2.4 GHz: 600 Mbps, 5 GHz: 2.4 Gbps
Antenna gain: 2.4 GHz: 4 dBi, 5 GHz: 5.5 dBi
LEDs: White/blue
Button: Factory reset
Mounting: Wall, ceiling (included)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Software

• WiFi standards: 802.11a/b/g/n/ac/ax (WiFi 6)
• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID: 8 per radio
• VLAN: 802.1Q
• Advanced QoS: Per-user rate limiting
• Guest traffic isolation: Supported
• Concurrent clients: 350+

Supported Data Rates

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
• 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80)

Application Requirements

• UniFi Network: Version 6.0.34 and later

Package Contents

• U6 Long-Range Access Point
• Mounting hardware
• Quick start guide
