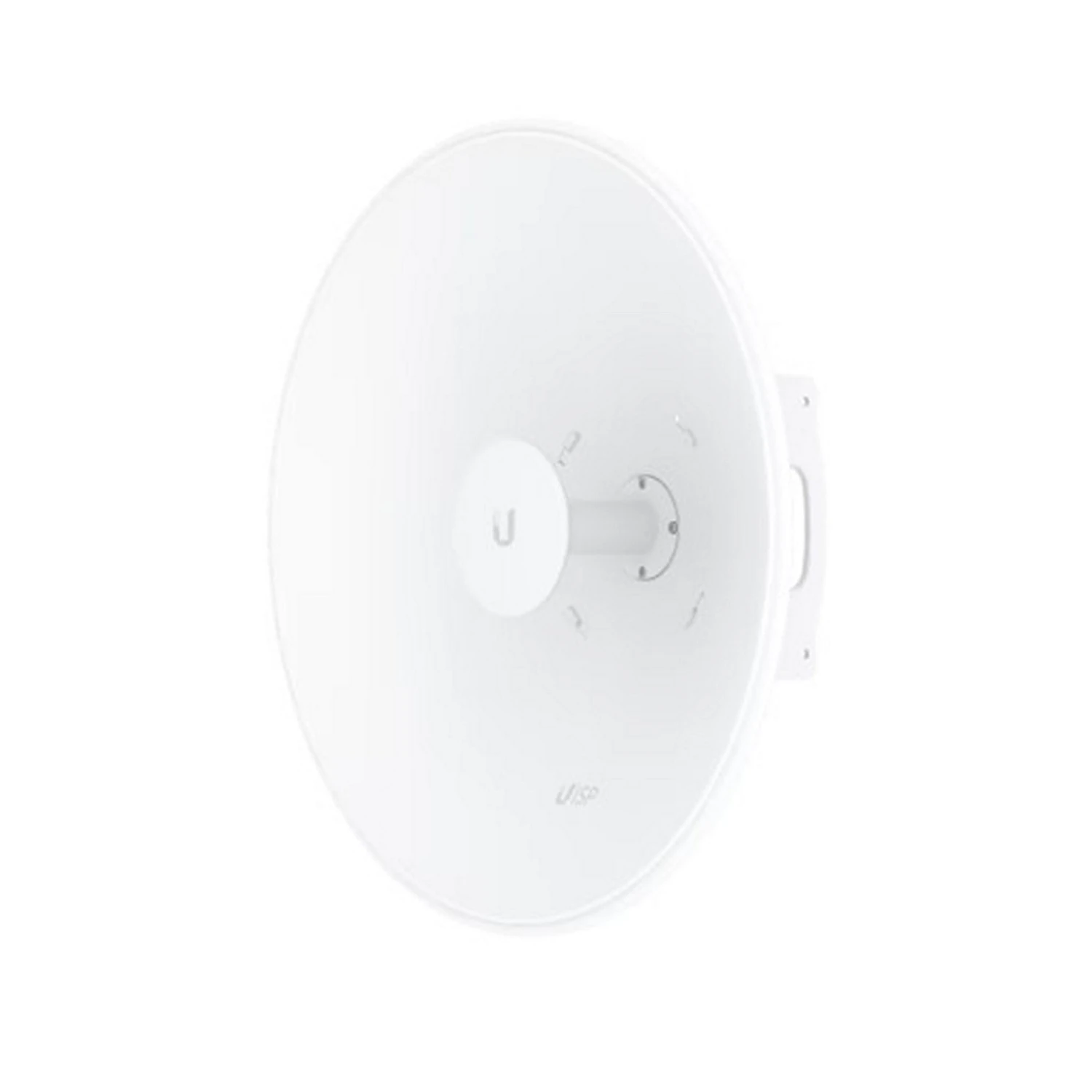

Ubiquiti UISP Dish 5GHz Long-Range Antenna

The Ubiquiti UISP Dish is a high-performance antenna designed for long-range point-to-point links. Operating in the 5.15 to 6.875 GHz range, it delivers excellent performance for wireless backhaul, extending coverage up to 30+ km. Its robust design includes UV-resistant materials and an aluminum alloy frame for durability. The antenna is weatherproof with an IPX6 rating and features an alignment mounting kit, offering easy installation and fine-tuning with ±15° mechanical adjustment.

Key Features:

• Frequency range: 5.15 to 6.875 GHz
• Gain: 30 dBi
• Beamwidth: 5 to 6° (3 dB azimuth)
• Weatherproof, IPX6 rated
• Mounting kit included with adjustable pole compatibility

Technical Specifications:

Dimensions: Ø 650 x 200 mm (Ø 25.6 x 7.9″)
Weight: Device: 4.54 kg (10 lb), Mount: 3.1 kg (6.8 lb)
Enclosure materials: Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy
Wind survivability: Up to 200 km/h (124 mph)
Wind loading: 860 N at 200 km/h
Mounting: Alignment mounting kit (included), Mechanical adjustment: ±15° elevation, Pole compatibility: Ø40 to 90mm (Ø1.57 to 3.5″)
Weatherproofing: IPX6
Frequency range: 5.15 to 6.875 GHz
Gain: 30 dBi
Beamwidth: Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB), Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Electrical downtilt: 0°
Maximum VSWR: 2:1
Polarization: Dual-linear
Cross-pol isolation: 20 dB
