Ubiquiti UISP Fiber OLT XGS 8-Port GPON With 10G Support(Ubiquiti Uisp Fiber Olt Xgs 8 Port Gpon With 10g Support)

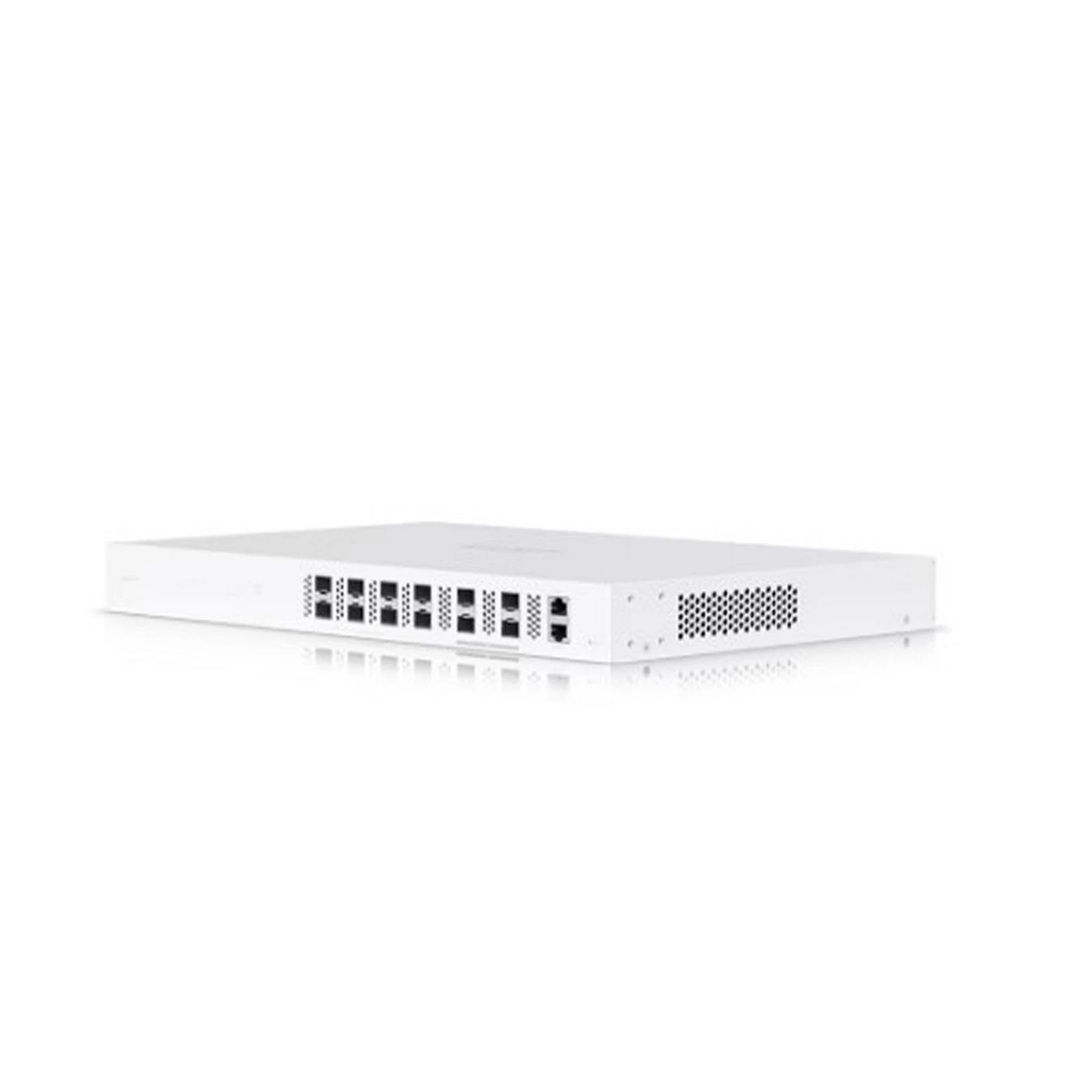

Ubiquiti UISP Fiber OLT XGS – 8-Port 10Gbps Optical Line Terminal

The Ubiquiti UISP Fiber OLT XGS is an advanced Optical Line Terminal (OLT) solution designed to deliver 10Gbps XGS-PON speeds. This unit is perfect for service providers looking to offer fast, reliable broadband to up to 2048 subscribers. Its efficient 1U rack-mount design, robust hardware, and easy-to-manage interface make it an excellent choice for large-scale fiber network deployment, ensuring optimal performance and scalability across a wide range of applications.

Key Features:

• Supports XGS-PON with 10 Gbps uplink and downlink capacity
• 4 x 25G SFP28 uplink ports for fast connectivity
• 8 PON ports with up to 2048 client capacity
• Hot-swap AC/DC power supply for redundancy
• Ethernet and Bluetooth management interfaces for easy configuration

Technical Specifications:

Dimensions: 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7″)
Weight: 5.29 kg (11.7 lb)
Enclosure Material: SGCC steel
Networking Interface: (8) XGS/XG/GPON ports, (4) 1/10/25G SFP28 ports
Management Interface: Ethernet out-of-band, Ethernet in-band, RJ45 serial console port, Bluetooth
Memory: 512 MB DDR3
Onboard Flash Storage: 64 MB NOR + 512 MB NAND
Power Method: Universal AC input, 100-240V AC, 50/60 Hz
Power Supply: (2) Hot-swap AC/DC PSU
Max. Power Consumption: 70W
Button: (1) Factory reset
Ambient Operating Temperature: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity: 10 to 95% non-condensing
Certifications: CE, FCC, IC

LEDs:

• System: Slow blinking white (system booting), Fast blinking white (reset), Blinking white/blue (system upgrading), Slow blinking blue (connecting to UISP), Steady white (system ready), Steady blue (system ready and connected)
• MGMT Port: Steady white after link is up
• PON Ports: Steady white when PON link is up
• SFP28 Ports: Steady white after link is up

Package Contents:

• Ubiquiti UISP Fiber OLT XGS unit
• Power adapters and cables
• Rack mount brackets
