Ubiquiti UK-Ultra Wi-Fi 6 Access Point For Outdoor Use(Ubiquiti Uk Ultra Wi Fi 6 Access Point For Outdoor Use)

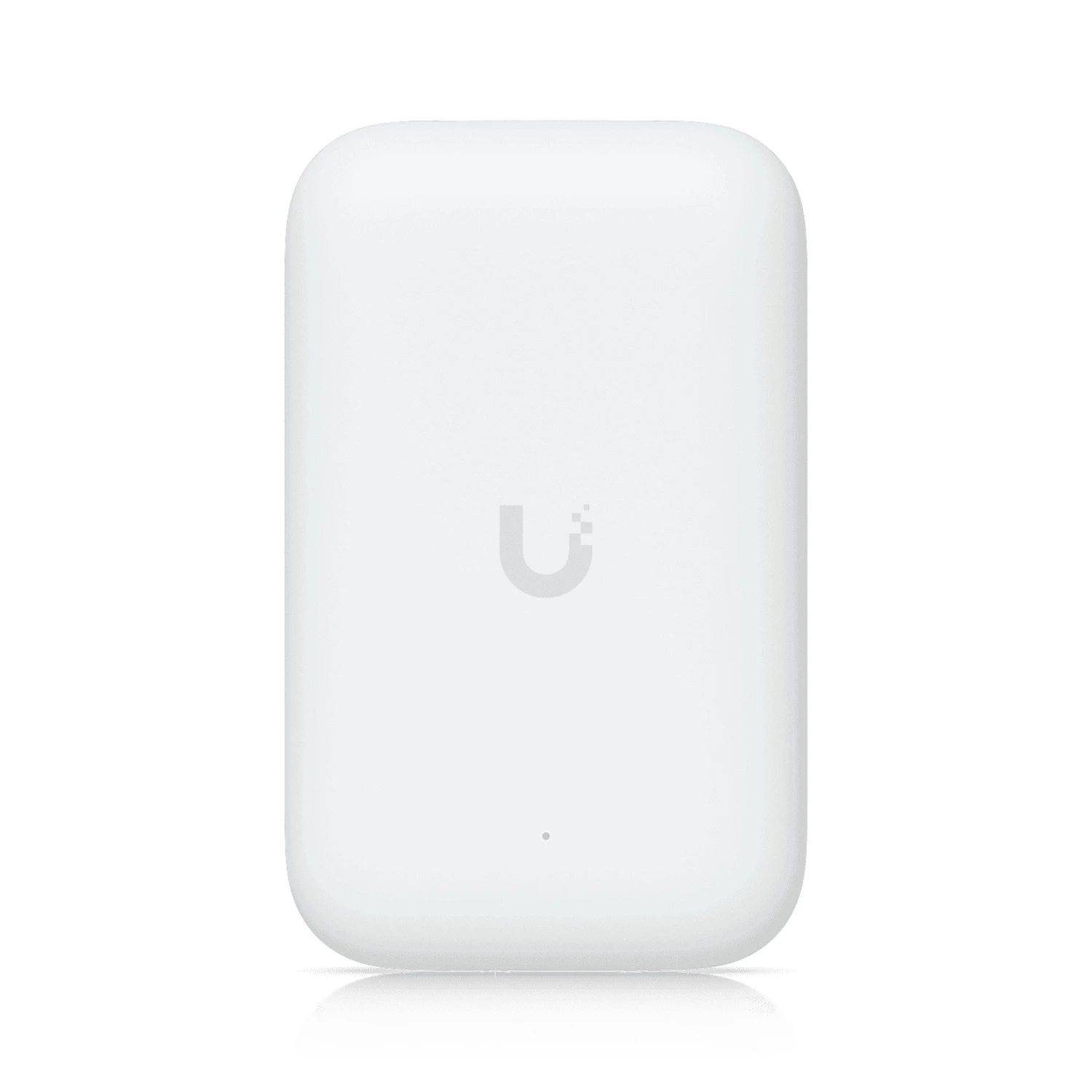

Ubiquiti UK-Ultra Wi-Fi 6 Access Point

The Ubiquiti UK-Ultra is a compact, high-performance Wi-Fi 6 access point designed for seamless indoor and outdoor coverage. With advanced wireless technology, it supports multiple devices with fast data rates and reliable connectivity. This access point ensures ease of deployment, thanks to its versatile mounting options, while its weatherproof and durable design makes it ideal for demanding environments. It’s perfect for environments requiring high performance and low latency.

Key Features:

• Wi-Fi 6 technology for enhanced speed and capacity
• Supports up to 200+ concurrent clients
• Flexible wall, ceiling, or pole mounting options
• Built-in internal antenna with optional external antenna support
• Weatherproof IPX6 rating for outdoor deployment
• PoE powered for easier installation

Technical Specifications:

Dimensions: 137 x 84 x 34 mm (5.4 x 3.3 x 1.3″)
Weight: 173 g (6.1 oz)
Enclosure Material: UV-stabilized polycarbonate
Mount Material: Polycarbonate, SGCC steel, plastic
Pole Mount Diameter: 1~2″ on pipe outer diameter
Wind Survivability: 33.2 N at 200 km/h (7.5 lbf at 125 mph)
Weatherproofing: IPX6

Hardware:

Networking Interface: (1) GbE RJ45 port
Management Interface: Ethernet
Power Method: PoE
Power Supply: UniFi PoE Switch
Supported Voltage Range: 44—57V DC
Max. Power Consumption: 8W

Max. TX Power
2.4 GHz: 20 dBm
5 GHz: 20 dBm
6 GHz: –

MIMO
2.4 GHz: 2 x 2 (DL MU-MIMO)
5 GHz: 2 x 2 (DL MU-MIMO)
6 GHz: –

Max. Data Rate
2.4 GHz: 300 Mbps (BW40)
5 GHz: 866.7 Mbps (BW80)
6 GHz: –

Antenna Gain
2.4 GHz: 4.7 dBi
5 GHz: 6.1 dBi
6 GHz: –

Antenna: (1) Internal antenna, (2) RP-SMA connectors for optional external antennas
LEDs: (1) Power: white/blue, (4) Mesh signal: blue
Button: Factory reset
Mounting: Wall, ceiling, pole (Included)
Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Software:

WiFi Standards: 802.11a/b/g/n/ac
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest Traffic Isolation: Supported
Concurrent Clients: 200+

Supported Data Rates:
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)

Application Requirements:

UniFi Network
Web: Version 8.0.7 and later
iOS™: Version 10.11.1 and later
Android™: Version 10.10.1 and later
