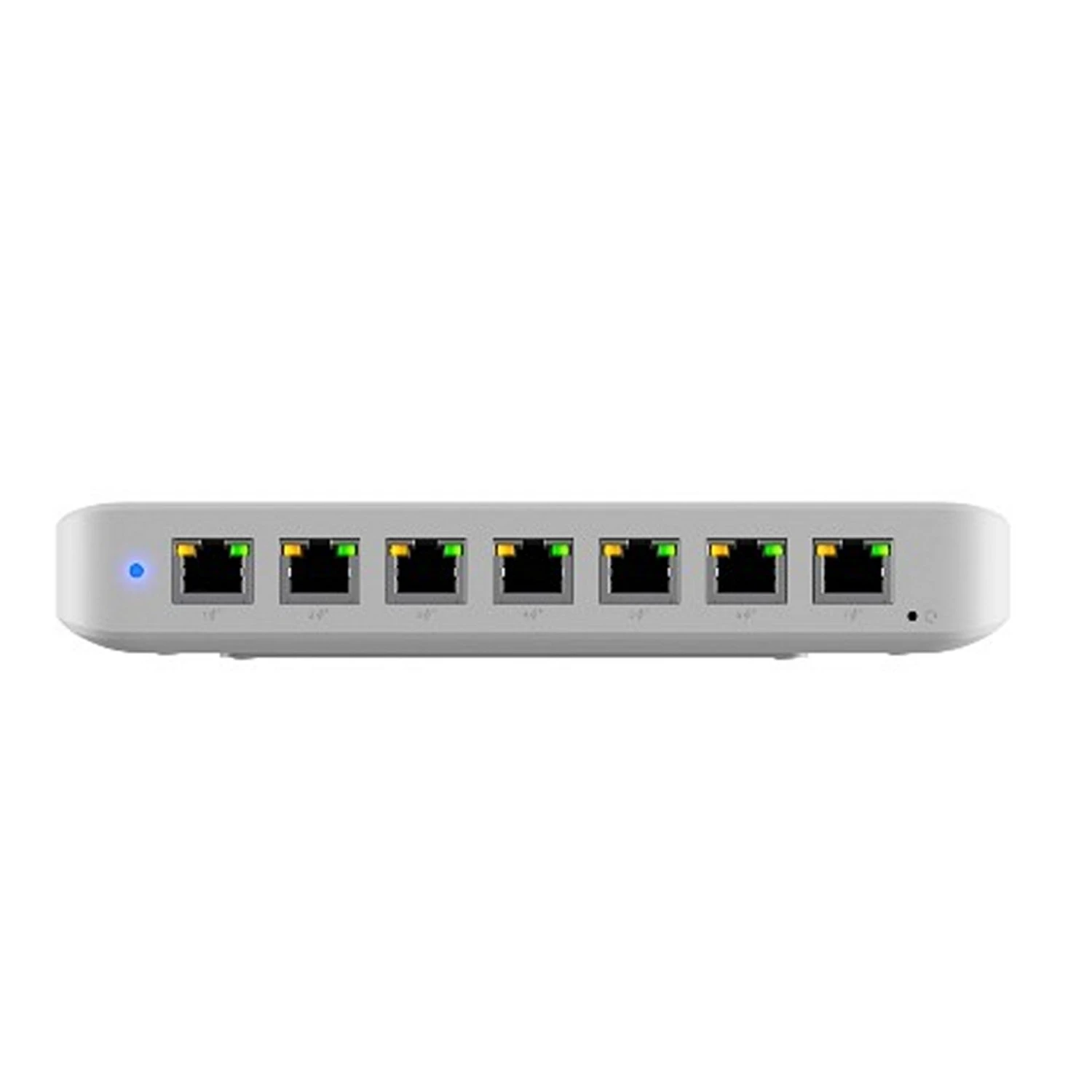

Ubiquiti UniFi Switch Ultra 210W 8-Port PoE(Ubiquiti Unifi Switch Ultra 210w 8 Port Poe)

Ubiquiti UniFi Switch Ultra 210W – 8-Port PoE Network Switch

The Ubiquiti UniFi Switch Ultra 210W offers powerful PoE+ functionality and reliable network performance for both home and enterprise environments. With 8 GbE PoE+ output ports and a PoE++ input port, this switch delivers a robust solution for powering your devices while maintaining high throughput. Designed for easy integration with UniFi networks, this switch supports a wide range of power adapters and provides substantial PoE capabilities for connecting and managing network devices effectively.

Whether you’re expanding your network or deploying multiple PoE-powered devices, the USW Ultra 210W ensures fast, stable connections and up to 202W of available PoE output. The switch is also designed to operate efficiently under high temperatures, with support for various PoE+ configurations and a range of input voltages.

Key Features:

• 8 GbE PoE+ output ports, 1 PoE++ input port
• Supports PoE++ input for maximum power output
• Compact design with flexible mounting options
• Includes 210W external AC adapter for reliable operation
• Ideal for powering PoE devices in home and business environments

Technical Specifications:

Dimensions: 8″ x 3″ x 1.3″
Weight: Device: 11.3 oz (320 g), Wall mount: 1.6 oz (45 g), 210W Adapter: 1.7 lb (770 g)
Enclosure Material: Polycarbonate
Management Interface: Ethernet In-Band
Networking Interface: (8) GbE RJ45 ports, (1) PoE++ input port
Total Non-Blocking Throughput: 8 Gbps
Switching Capacity: 16 Gbps
Forwarding Rate: 11.904 Mpps
Power Method: (1) 54V, 3.9A power adapter (Included)
PoE Output: (7) PoE/PoE+ ports, (1) PoE++ input port
Max. Power Consumption: 9W (Excluding PoE output), 8W (AC adapter input)
Total Available PoE: PoE++ input: 42W, PoE+ input: 16W
Max. PoE Wattage per Port: PoE+: 30W, PoE++: 60W
Ambient Operating Temperature: PoE++ input: -30 to 60°C (-22 to 140°F), AC adapter inputs: -20 to 60°C (-4 to 140°F)
Ambient Operating Humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC

Package Contents:

• UniFi Switch Ultra 210W
• Mounting hardware
• Quick start guide
