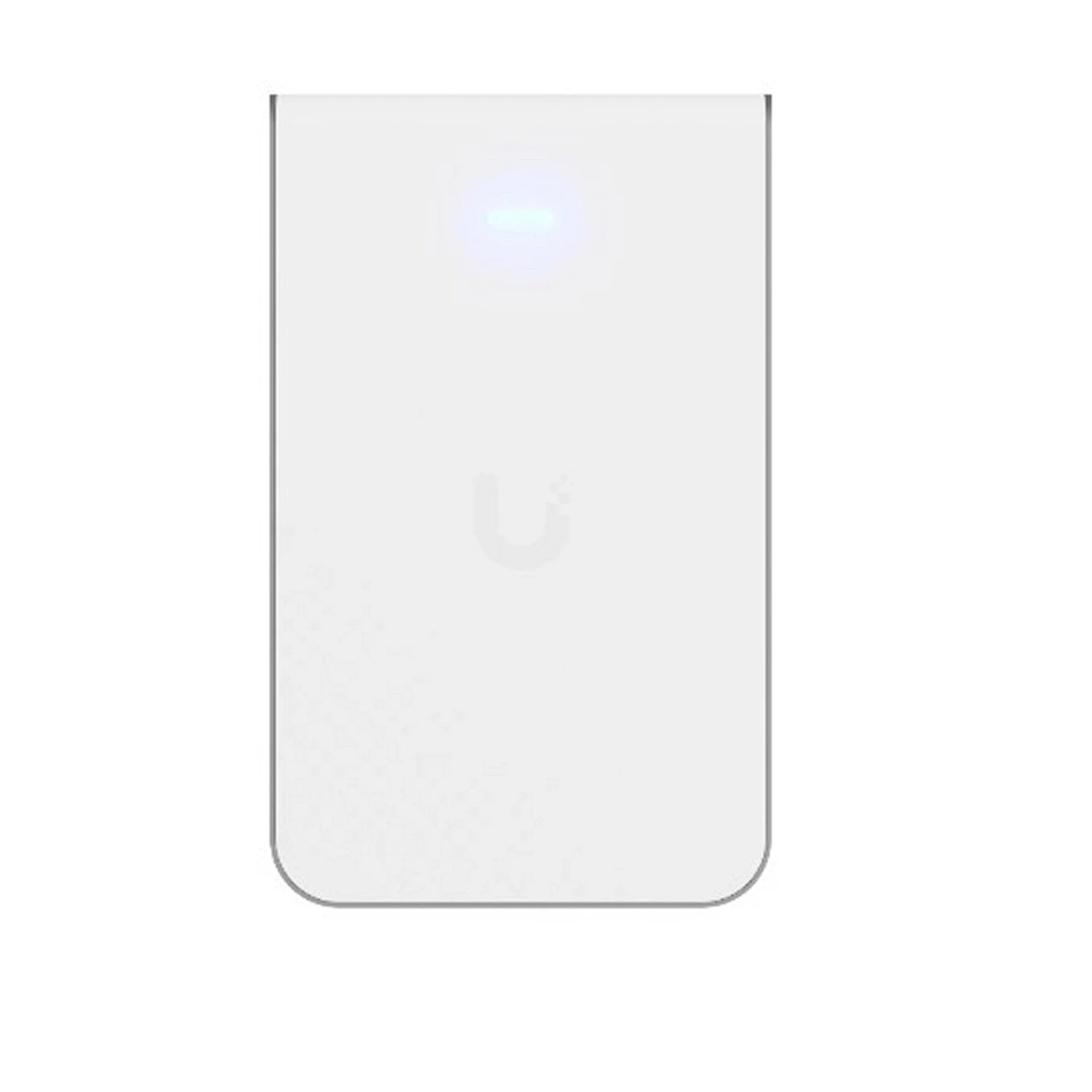

Ubiquiti UniFi UAP-AC-IW Wall-Mounted Access Point(Ubiquiti Unifi Uap Ac Iw Wall Mounted Access Point)

Ubiquiti UniFi UAP-AC-IW Wall-Mounted Access Point

The Ubiquiti UAP-AC-IW is a compact, high-performance Wi-Fi 5 access point designed for small spaces. It is perfect for use in offices, residences, and small businesses. It features a sleek wall-mountable design with three GbE ports and PoE+ support. With a max data rate of 867 Mbps on the 5 GHz band, it offers reliable connectivity for up to 250 devices. Powered via PoE, it ensures easy installation while providing robust network coverage.

Key Features:

• Wall-mounted design for small spaces
• Supports 2.4 GHz and 5 GHz Wi-Fi with 2×2 MU-MIMO
• Max data rate: 300 Mbps (2.4 GHz), 867 Mbps (5 GHz)
• PoE+ support with passthrough for easy setup
• Up to 250 concurrent clients

Technical Specifications:

Dimensions: 5.5″ x 3.4″ x 1″
Weight: 6.4 oz

Networking Interface: (3) GbE RJ45 ports
Management Interface: Ethernet
PoE Interface: (1) PoE/PoE+ in, (1) PoE out
Power Method: PoE, PoE+ (Required for PoE passthrough)
Max Power Consumption: 7W (Excluding PoE output)
Max PoE Wattage per Port: 19W (Requires PoE switch)
Max TX Power: 20 dBm (2.4 GHz), 20 dBm (5 GHz)
MIMO: 2 x 2 (DL MU-MIMO) for 2.4 GHz, 5 GHz
Max Data Rate: 300 Mbps (2.4 GHz), 867 Mbps (5 GHz)
Antenna Gain: 1 dBi (2.4 GHz), 2 dBi (5 GHz)
Mounting: 1-Gang electrical wall box (Optional)
Ambient Operating Temperature: -10 to 50°C (14 to 122°F)
Certifications: CE, FCC, IC
