Ubiquiti UniFi USW 24-Port POE Switch(Ubiquiti Unifi Usw 24 Port Poe Switch)

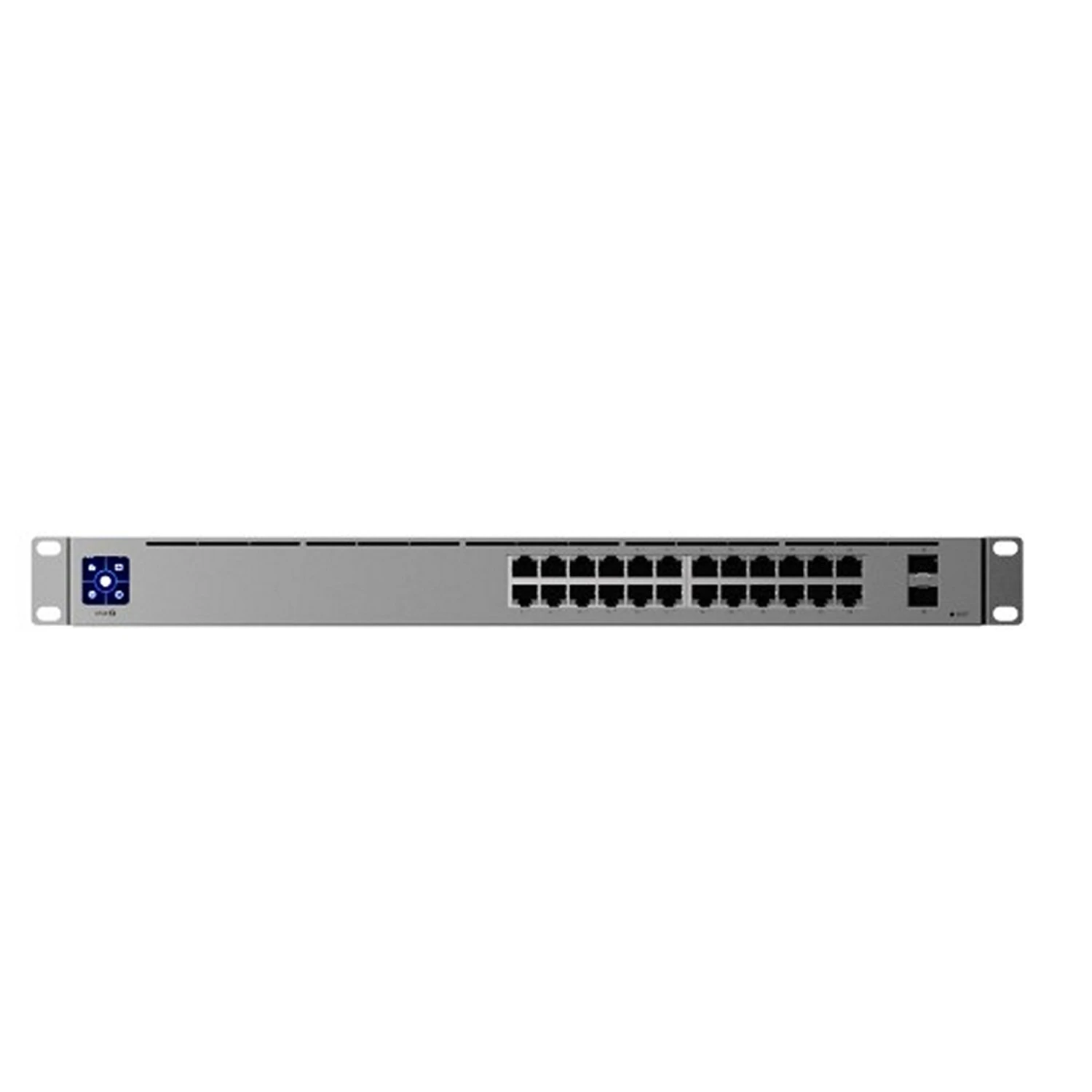

Ubiquiti UniFi USW-24-POE 24-Port PoE Switch

The Ubiquiti UniFi USW-24-POE is a 24-port Power over Ethernet (PoE) switch designed for high-performance networking. With 16 PoE+ ports and 2 1G SFP ports, it supports efficient power distribution for connected devices while ensuring smooth network operation. Its robust features include IGMP snooping, port isolation, and layer 2 switching, making it perfect for businesses and large-scale networks. The fanless design ensures silent operation, while the 95W PoE power provides ample support for connected devices such as access points and cameras.

Key Features:

• 24 Gigabit Ethernet PoE+ ports and 2 1G SFP ports
• 95W total PoE power availability for multiple devices
• Fanless design for quiet operation
• Advanced layer 2 switching features for optimized performance
• Ideal for UniFi networks running version 7.2.94 or later

Technical Specifications:

Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7″)
Weight: 3 kg (6.6 lbs) without mounting brackets, 3.1 kg (6.8 lbs) with mounting brackets
Enclosure material: SGCC steel
Management interface: Ethernet In-Band
Networking interface: (24) GbE RJ45 ports, (2) 1G SFP ports
PoE interface: (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput: 26 Gbps
Switching capacity: 52 Gbps
Forwarding rate: 38.69 Mpps
Power method: Universal input, 100—240V AC, 50/60 Hz
Power supply: AC/DC, internal, 120W
Max. power consumption: 25W (Excluding PoE output)
Total available PoE: 95W
Max. PoE wattage per port by PSE: PoE+: 32W
Voltage range PoE mode: PoE: 44—57V, PoE+: 50—57V
ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
LCM display: (1) 1.3″ touchscreen
Button: Factory reset
Shock and vibration: ETSI300-019-1.4 Standard
Ambient operating temperature: -5 to 40° C (23 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC

Package Contents:

• Ubiquiti UniFi USW-24-POE Switch
• Mounting brackets
• Power cord
• Quick start guide
