Ubiquiti USW 48 48 Port Switch With SFP Ports For Networking(Ubiquiti Usw 48 48 Port Switch With Sfp Ports For Networking)

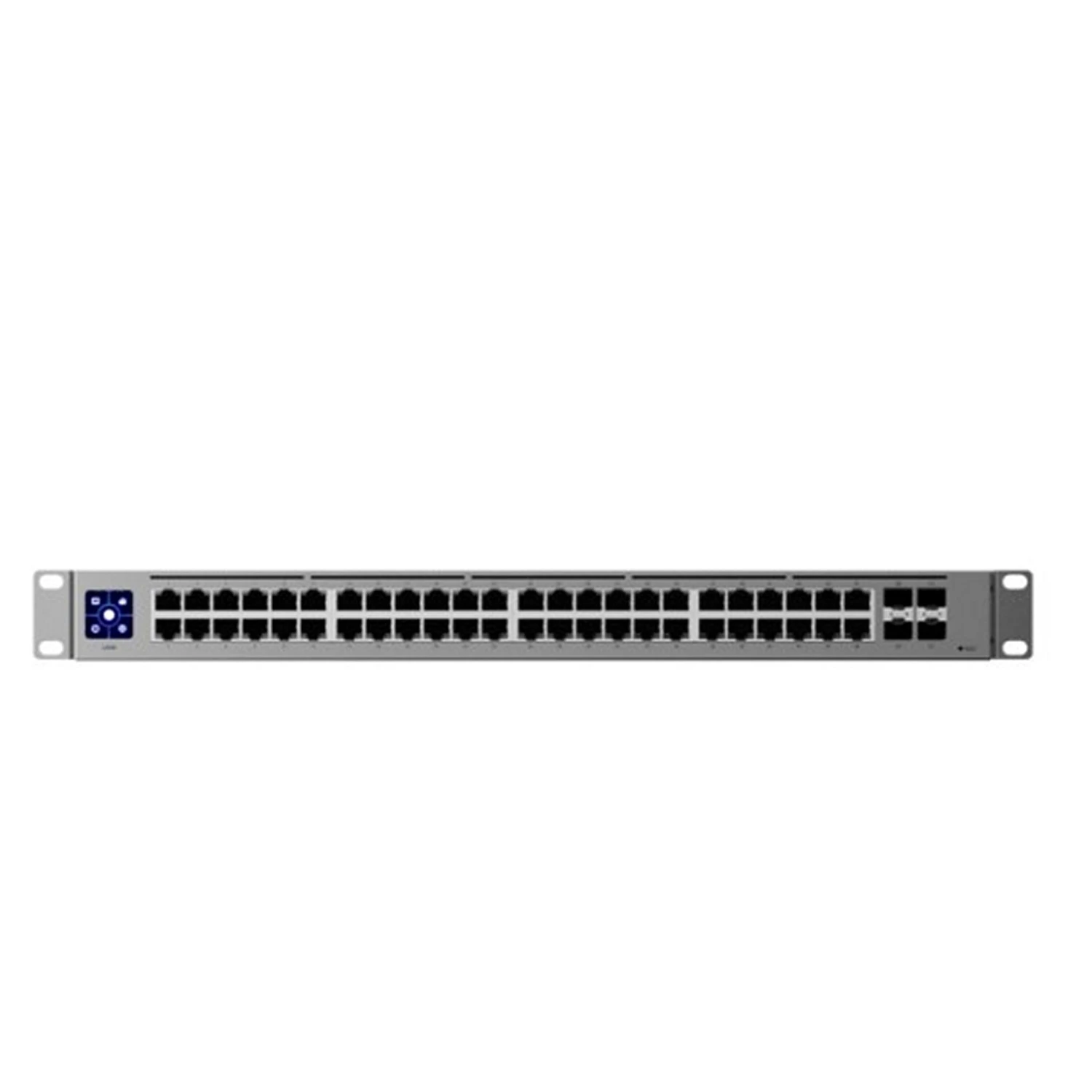

Ubiquiti USW-48 48-Port Gigabit Switch – Silent, Fanless Design

The Ubiquiti USW-48 is a high-performance 48-port Layer 2 managed switch designed for modern enterprise networks. Featuring a fanless design, it offers silent operation while providing 48 Gigabit Ethernet ports and 4 SFP ports for flexible networking. Ideal for environments where noise reduction is critical, the USW-48 delivers reliable and powerful networking capabilities while maintaining efficient and consistent performance in a wide range of operating conditions.

Key Features:

• 48 Gigabit Ethernet ports for high-speed connectivity
• 4 SFP ports for uplink flexibility
• Fanless design ensures silent operation
• Layer 2 switching capabilities with advanced networking features
• Rackmountable for efficient space utilization

Technical Specifications:

Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″)
Weight: Without mounting brackets: 3.9 kg (8.6 lb)
With mounting brackets: 4 kg (8.8 lb)
Enclosure material: SGCC steel

Hardware:

Management interface: Ethernet In-Band
Networking interface: (48) GbE RJ45 ports, (4) 1G SFP ports
Total non-blocking throughput: 52 Gbps
Switching capacity: 104 Gbps
Forwarding rate: 77.376 Mpps
Power method: Universal input, 100—240V AC, 50/60 Hz
Power supply: AC/DC, internal, 60W
Max. power consumption: 40W
ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
LCM display: (1) 1.3″ touchscreen
Button: Factory reset
Ambient operating temperature: -15 to 40° C (5 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC

Switching Features:

• IGMP snooping, STP / RSTP with priorities
• Port isolation, storm control, voice VLAN
• LACP port aggregation, multicast/broadcast rate limiting
• Flow control, 802.1X control, jumbo frames
• Proprietary loop protection, DHCP snooping/guarding
• Device isolation with ACLs

Application Requirements:

UniFi Network Version 7.2.94 and later

Package Contents:

• Ubiquiti USW-48 Switch
• Power Cord
• Rackmount Brackets
• Documentation
