Ubiquiti UXG-Lite Gateway Lite, Compact Router For Secure Networking(Ubiquiti Uxg Lite Gateway Lite Compact Router For Secure Networking)

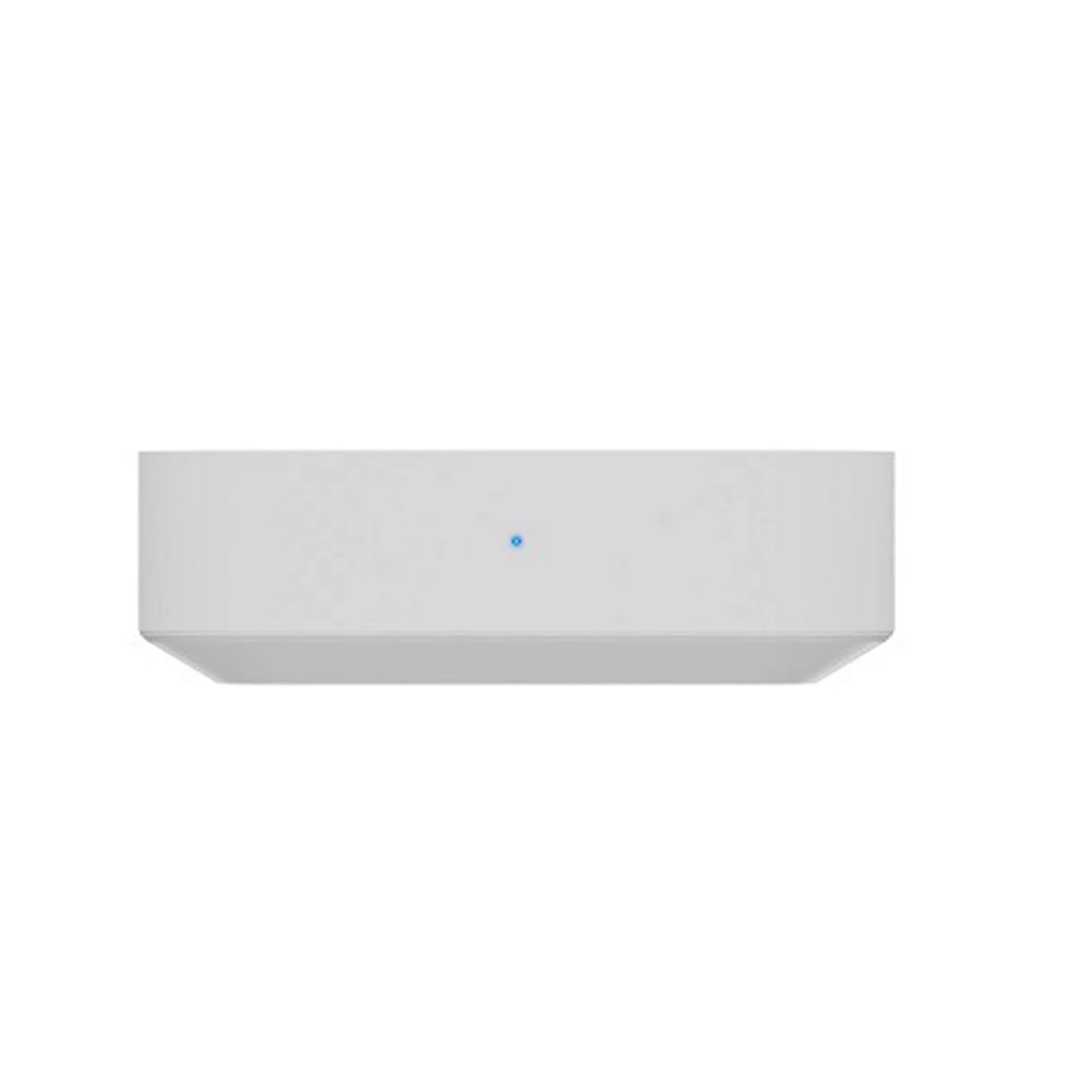

Ubiquiti UXG-Lite Gateway Lite – Compact, High-Performance Router

The Ubiquiti UXG-Lite Gateway Lite is designed for those who require an efficient, compact router with advanced networking features. Offering a high level of performance, it comes equipped with dual-core ARM® processing and robust security features. This device supports application-aware firewall rules, threat detection, and VPN options, making it ideal for both home and small business environments. With USB-C power, easy management, and comprehensive quality-of-service options, it’s a versatile solution for modern network setups.

Key Features:

• Dual-core ARM® Cortex®-A53 processor at 1 GHz
• 1 GB DDR3L memory for efficient performance
• IDS/IPS throughput up to 1 Gbps
• USB-C power with low power consumption (3.83W)
• Comprehensive security with application-aware firewall and VPN

Technical Specifications:

Dimensions: 98 x 98 x 30 mm (3.9 x 3.9 x 1.2″)
Weight: 320 g (11.3 oz)
Enclosure Material: Polycarbonate
Processor: Dual-core ARM® Cortex®-A53 at 1 GHz
Memory: 1 GB DDR3L
Management Interface: Ethernet
Bluetooth: 5.1
Networking Interface:

• LAN: (1) GbE RJ45 port
• WAN: (1) GbE RJ45 port

IDS/IPS Throughput: 1 Gbps (measured with iPerf3 on DHCP WAN)
Power Method: USB type C (5V/3A)
Supported Voltage Range: 100–240V
Max Power Consumption: 3.83W
Operating Temperature: -10 to 40°C (14 to 104°F)
Operating Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC

Gateway Features:

• WiFi QoS with UniFi APs
• Next-gen security with signature-based IPS/IDS
• WireGuard, L2TP, OpenVPN, and IPsec VPN support
• SD-WAN support when paired with CloudKey
• IPv6 ISP support

Application Requirements:

• UniFi Network: Version 8.0.7 and later

Package Contents:

• Ubiquiti UXG-Lite Gateway Lite
• USB-C Power Adapter
• Quick Start Guide
