Ubiquiti Wave AP 60 GHz PtMP Access Point(Ubiquiti Wave Ap 60 Ghz Ptmp Access Point)

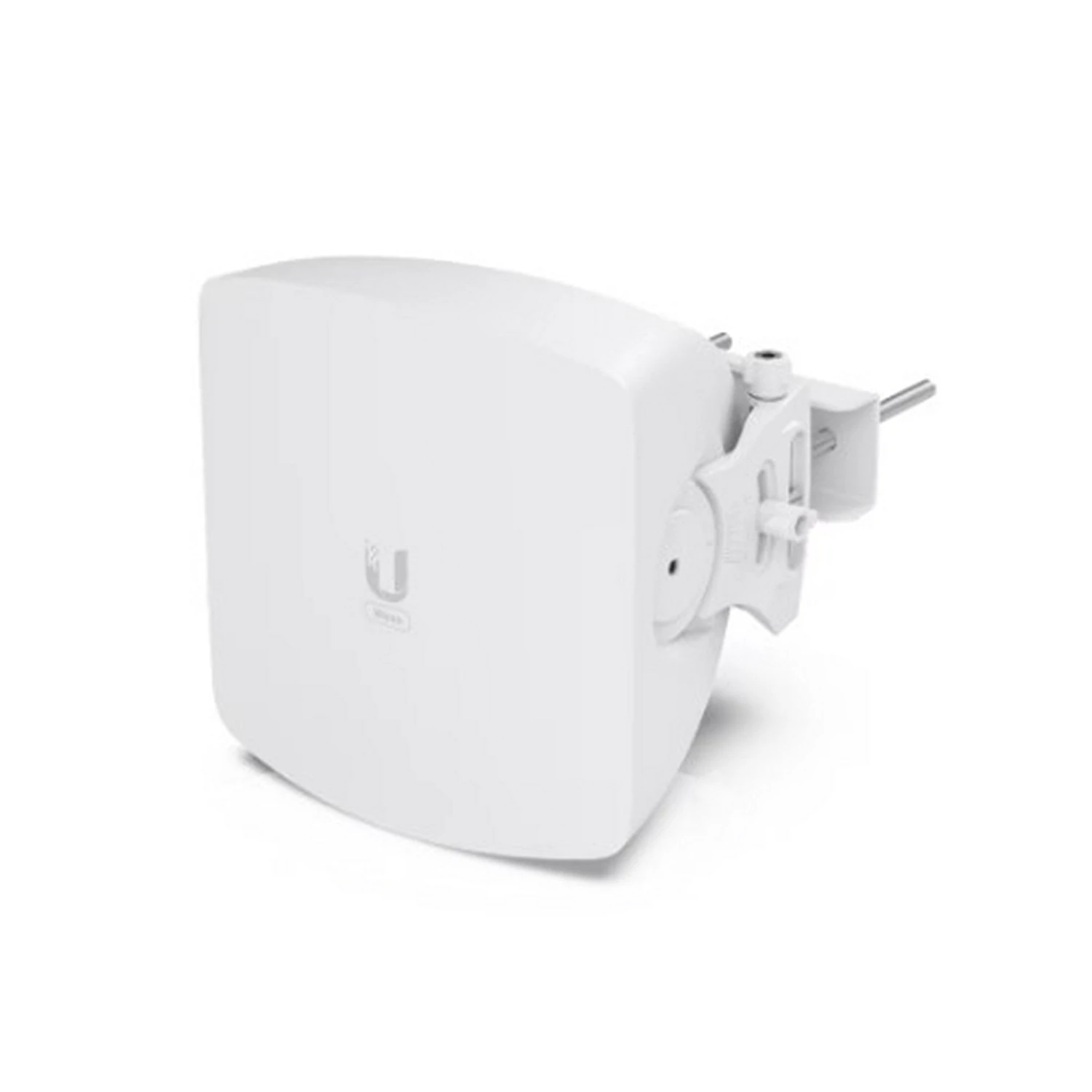

Ubiquiti Wave AP – 60 GHz PtMP Access Point

The Ubiquiti Wave AP is a powerful 60 GHz Point-to-Multipoint (PtMP) access point designed to deliver ultra-fast speeds with up to 5.4 Gbps throughput. Featuring a weatherproof aluminum alloy and UV-stabilized polycarbonate enclosure, it ensures long-lasting durability in any environment. With advanced Wave technology, it supports up to 31 clients, making it ideal for large-scale deployments. The Wave AP’s integrated GPS and flexible mounting options ensure optimal performance and ease of installation, with a maximum range of up to 8 km when connected to a Wave Pro.

Key Features

• 5.4 Gbps total throughput for high-speed connectivity
• Supports up to 31 clients for high-performance deployments
• Weatherproof IPX6 rating for outdoor installations
• Includes GPS for precise location tracking
• Wave technology for efficient PtMP network management
• Maximum range of up to 8 km with compatible units

Technical Specifications

Dimensions: 212 x 205 x 187 mm (8.3 x 8.1 x 7.4″)
Weight: 5.1 lb (2.3 kg)
Enclosure material: Aluminum alloy, UV stabilized polycarbonate
Pole mount diameter: 25 to 76 mm (1 to 3″)
Wind loading: 98 N at 200 km/h (22 lbf at 125 mph)
Weatherproofing: IPX6
Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory: DDR3L 512 MB
Networking interface: (1) 2.5GbE RJ45 port, (1) 10G SFP+ port
Max. power consumption: 24W
Power method: Passive PoE 4-pairs (44–54V DC)
GPS: Yes
Operating temperature: -40 to 60°C (-40 to 140°F)
Operating humidity: 5 to 95% noncondensing
Certifications: FCC, IC, CE

In The Box

• Wave AP Access Point
• Mounting Kit
• PoE Adapter (48V DC, 0.65A)
• Quick Start Guide
