VigilLink 10-Button Wall Control System(Vigillink 10 Button Wall Control System)

VLCT-U2G10B Universal Control System

The VLCT-U2G10B Universal Control System is designed for efficient control and automation in a variety of environments, featuring a powerful ARM Cortex-A53 processor running at 1.8GHz. With Android 9 as its operating system, it delivers a smooth and intuitive user interface for easy operation. Equipped with 2GB DDR4 RAM and 8GB of EMMC Flash memory, this system ensures reliable performance for controlling devices and handling complex automation tasks. It is ideal for commercial, residential, and industrial applications where flexibility, speed, and durability are required.

Connectivity is a key strength of the VLCT-U2G10B, offering a range of input/output options. It includes two 3-pin Phoenix connectors for RS-232 serial data communication, as well as a 2-pin Phoenix connector for IR transmission or one-way RS-232 serial communication. Additionally, the device provides low-voltage relay outputs, supporting up to 30VDC and 125VAC. It also features a digital input I/O connector and an Ethernet RJ45 interface supporting PoE (Power over Ethernet), making it highly versatile for networking and power management.

Built to last, the VLCT-U2G10B comes housed in a sturdy metal enclosure with an aluminum alloy front panel. Its sleek design, featuring a silver front panel and black back shell, ensures both durability and aesthetic appeal. The system is easily installed using Type 120 Cassette Mounting, and it operates efficiently with a power supply of either 24V DC/1A or PoE. With a wide operating temperature range from 32°F to 104°F and low power consumption, the VLCT-U2G10B is the ideal solution for environments that demand consistent, reliable performance.

Key Features:

• ARM Cortex-A53 1.8GHz processor with Android 9 operating system for high performance.
• 2GB DDR4 RAM and 8GB EMMC Flash memory for smooth and reliable operation.
• Multiple connectivity options, including RS-232, IR, relay outputs, and digital I/O.
• Supports PoE (Power over Ethernet) for easy installation and power management.
• 10 programmable summarys and 1 programmable knob for customizable control.
• Sturdy metal housing with an aluminum alloy front panel for durability.
• Compact and versatile, designed for Type 120 Cassette Mounting for easy installation.
• Low power consumption at only 3.5W for efficient operation.

Technical Specifications:

CPU: ARM Cortex-A53 1.8GHz

Operation System: Android 9

RAM: 2GB DDR4 RAM

Flash Memory: 8GB EMMC Flash

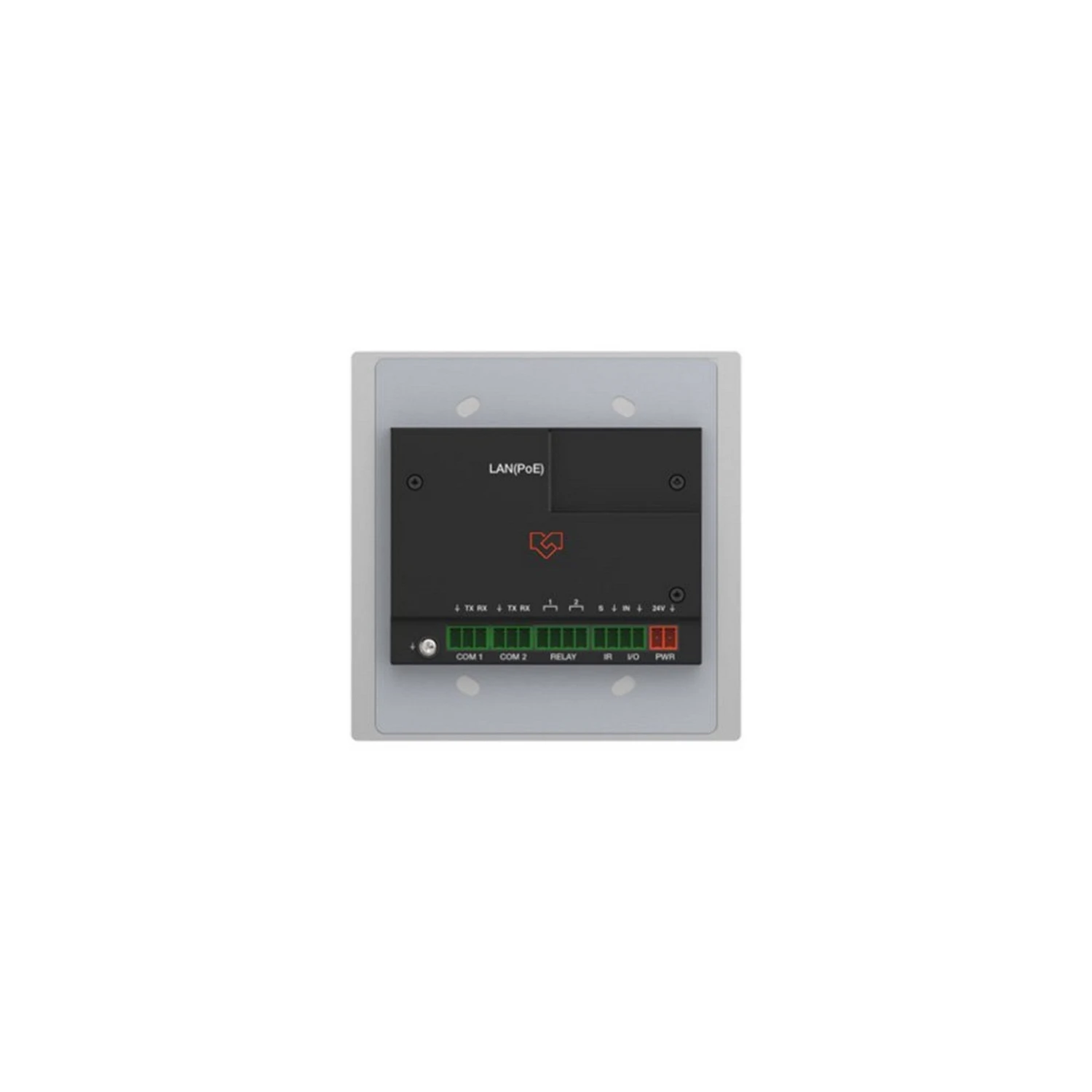

Connection:

COM1/2: 2 × 3-pin Phoenix Connectors, for two-way RS-232 serial data communication

IR: 1 × 2-pin Phoenix Connectors, for IR transmitting or one-way RS-232 serial data communication

RELAY: 2 × 2-pin Phoenix Connectors, low-voltage relays, isolated, normally open, switching up to 30VDC, 1A / 125VAC, 0.3A

I/O: 1 × 2-pin Phoenix Connectors, for digital signal inputting

LAN/POE: 1 standard 10M/100M/1000M Ethernet RJ45 interface, supporting PoE function

POWER: 1 × 2-pin Phoenix Connectors, for power supply

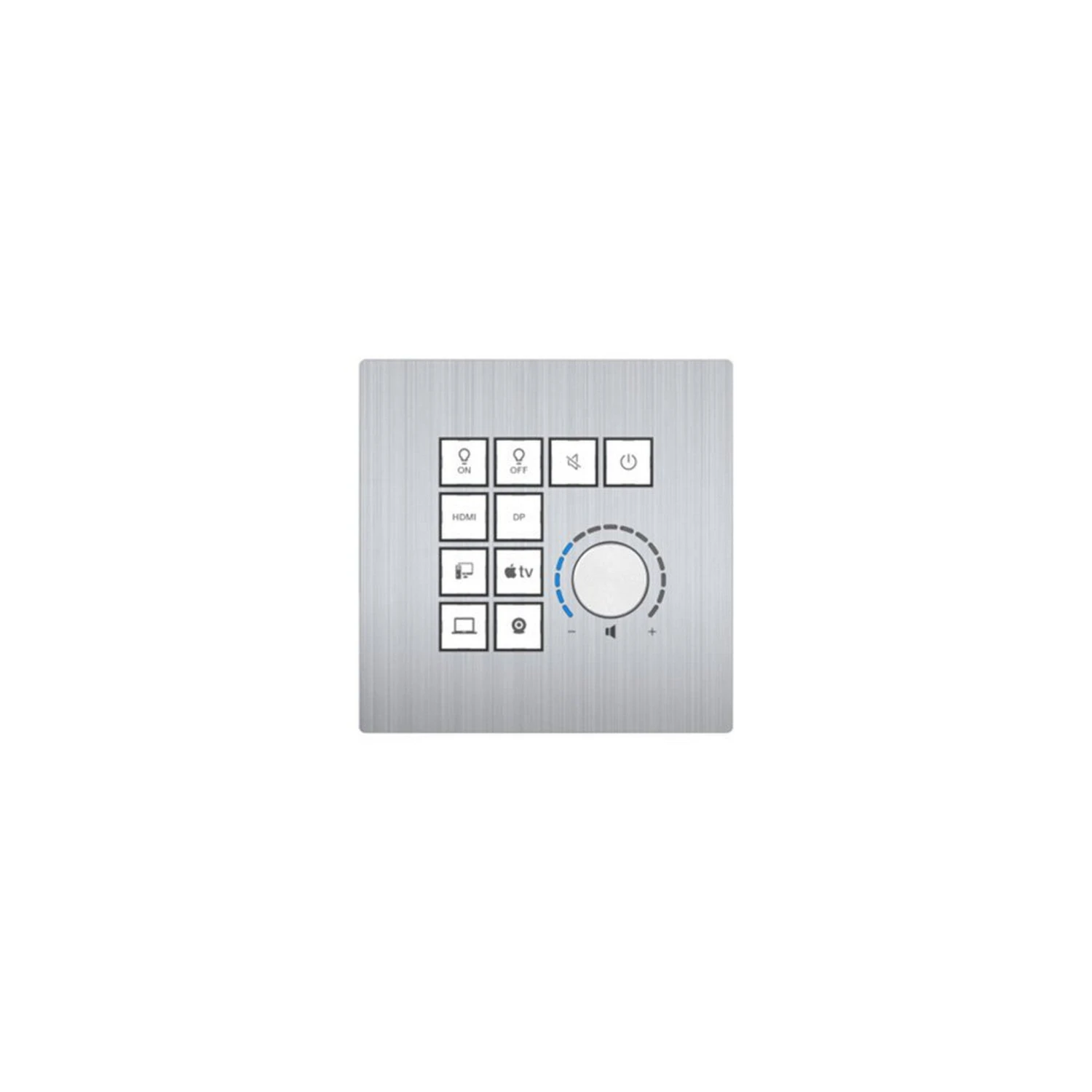

Buttons: 10 × programmable summarys

Knob: 1 × programmable knob

Mechanical:

Housing: Metal enclosure with aluminium alloy front panel

Color: Silver panel, black back shell

Dimensions: 4.57″ (W) x 2.13″ (D) x 4.57″ (H)

Weight: 15.87 oz

Installation: Type 120 Cassette Mounting

Power Supply:

Voltage: 24V DC/1A or PoE

Power Consumption: 3.5W

Operating Temperature: 32°F ~ 104°F

Relative Humidity: 10% – 90% RH (Non-condensation)

What’s Included:

1 x VLCT-U2G10B Universal Control System
