VigilLink 2 CH 8K/4K Out Video Wall Controller With Multi-viewer(Vigillink 2 Ch 8k 4k Out Video Wall Controller With Multi Viewer)

2 CH 8K/4K Out Video Wall Controller with Multi-viewer

The G902 is a highly versatile video processor designed to handle the most demanding video wall and multi-display installations. With its advanced functionality, it delivers precise image processing, high-resolution outputs, and seamless integration into various video systems. This processor supports both interleaved and progressive input signals, ensuring compatibility with a wide range of video sources. Whether you need to display 4K content on multiple monitors or implement customized image adjustments, the G902 provides an excellent solution for all your display needs.

Designed with flexibility and performance in mind, the G902 supports up to 4K UHD output, including high dynamic range (HDR) signal processing. The processor also allows for precise bezel compensation, enabling flawless video wall displays. With its programmable output and advanced video processing features, it offers the flexibility to adjust aspect ratios, rotate and flip images, and manage multiple input signals with ease. The ability to control and synchronize multiple displays in real-time makes the G902 an ideal choice for professional video installations in control rooms, digital signage, and other high-end applications.

In addition to its powerful video processing capabilities, the G902 comes with comprehensive input and output port options, allowing it to handle various video signal formats. Whether you’re working with HDMI, VGA, or other formats, the G902 ensures smooth operation and reliable performance. The processor also supports EDID management, providing flexibility in display configurations and ensuring optimal display settings. With its robust features and reliability, the G902 is a top-tier solution for demanding video applications.

Key Features

• Supports 4K UHD resolution with precise bezel compensation for video walls
• Flexible aspect ratio adjustments, rotation, and cropping for customized displays
• Seamless switching between input signals with quick and easy setup
• Supports HDR input signal processing for high-quality visuals
• ESD protection ensures long-term durability in various environments
• Control options include IR, RS232, USB, and Ethernet
• CE, FCC, and RoHS certified for compliance with industry standards

Technical Specifications

Input & Output:
Input Ports: 5x HDMI 2.0b
Output Ports: 2x HDMI 2.0b, 1x HDMI 2.0b Loop
Common Input Port with Loop Out Function for 2 Output Channels
Each Channel has 2 Independent Input Ports
Loop Out Port for Daisy Chain Connection

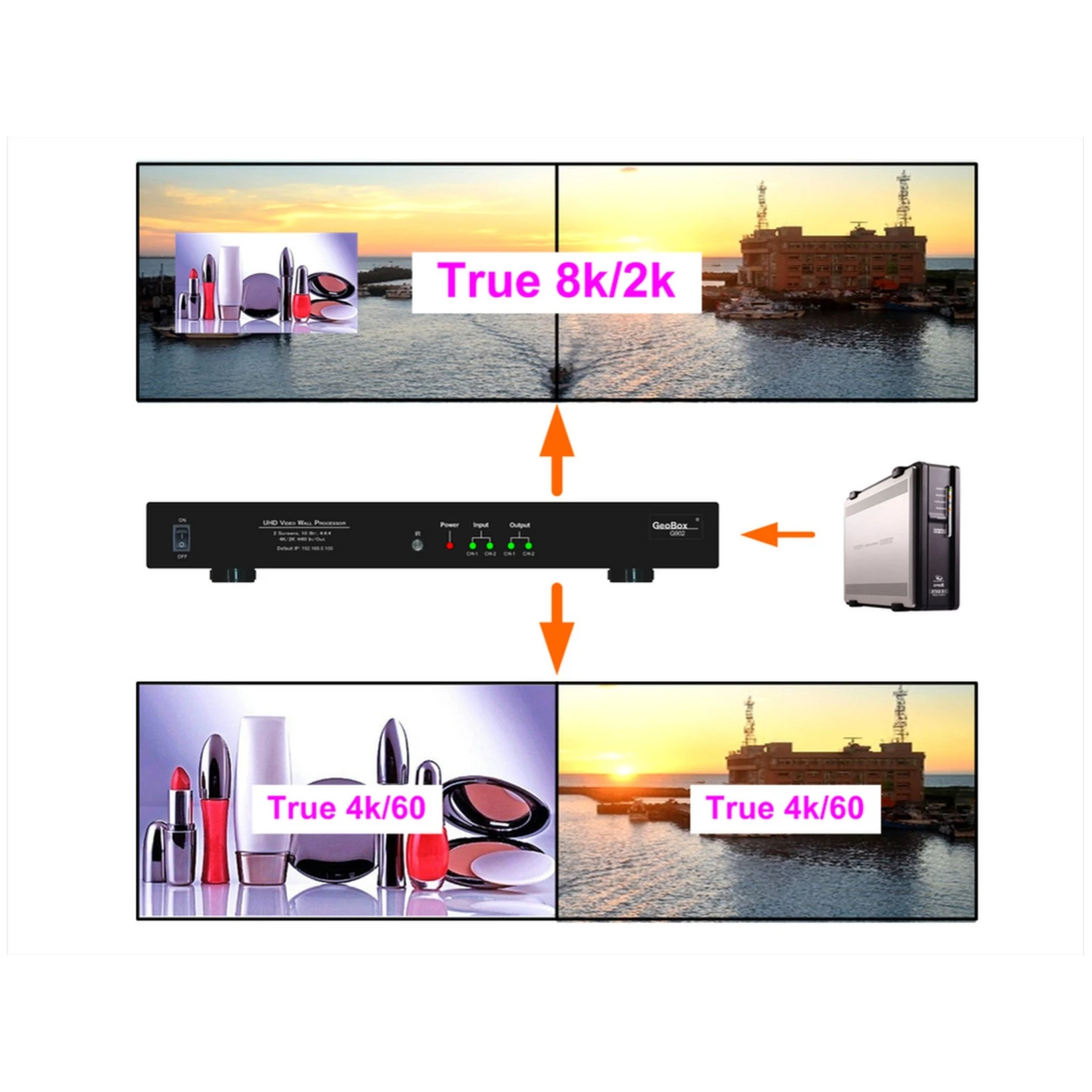

Discrete True 4K Pixel-to-Pixel Content for Each Monitor
Supports Interleaved and Progressive Input Signals with 4:4:4 10-bit Color under 600 MHz
Supports High Dynamic Range (HDR): SMPTE ST-2084, SMPTE ST-2086, and BT.2020 HDR 10 Input Signal Processing
Supports Non-VESA Standard Input Timings

Programmable Output:
Output Port: 1x HDMI 2.0b
Up to 4096×2265/60Hz or 4096×2713/50Hz with Selectable Refresh Rate: 24/30/50/60/100/120
Output Range: 800-7680 (Horizontal), 720-3840 (Vertical)
Preset 17 Output Timing Modes with Selectable 8-bit/10-bit Color Mode
Output Signal: SDR, Progressive Full Color RGB, 4:4:4, 8/10-bits under 600MHz
HDCP: V2.2/V1.4 in HDMI

Video Processing:
Embedded Video Wall Function for Image Split, Cropping, Location Assignment, Position Adjustment, and Precise Bezel Compensation
OSD Menu Position can be Shifted for Convenient OSD Operation
Decode 3D Signal for Passive 3D Display and Convert 3D Format into Side by Side, Top/Bottom
Selectable and Programmable EDID

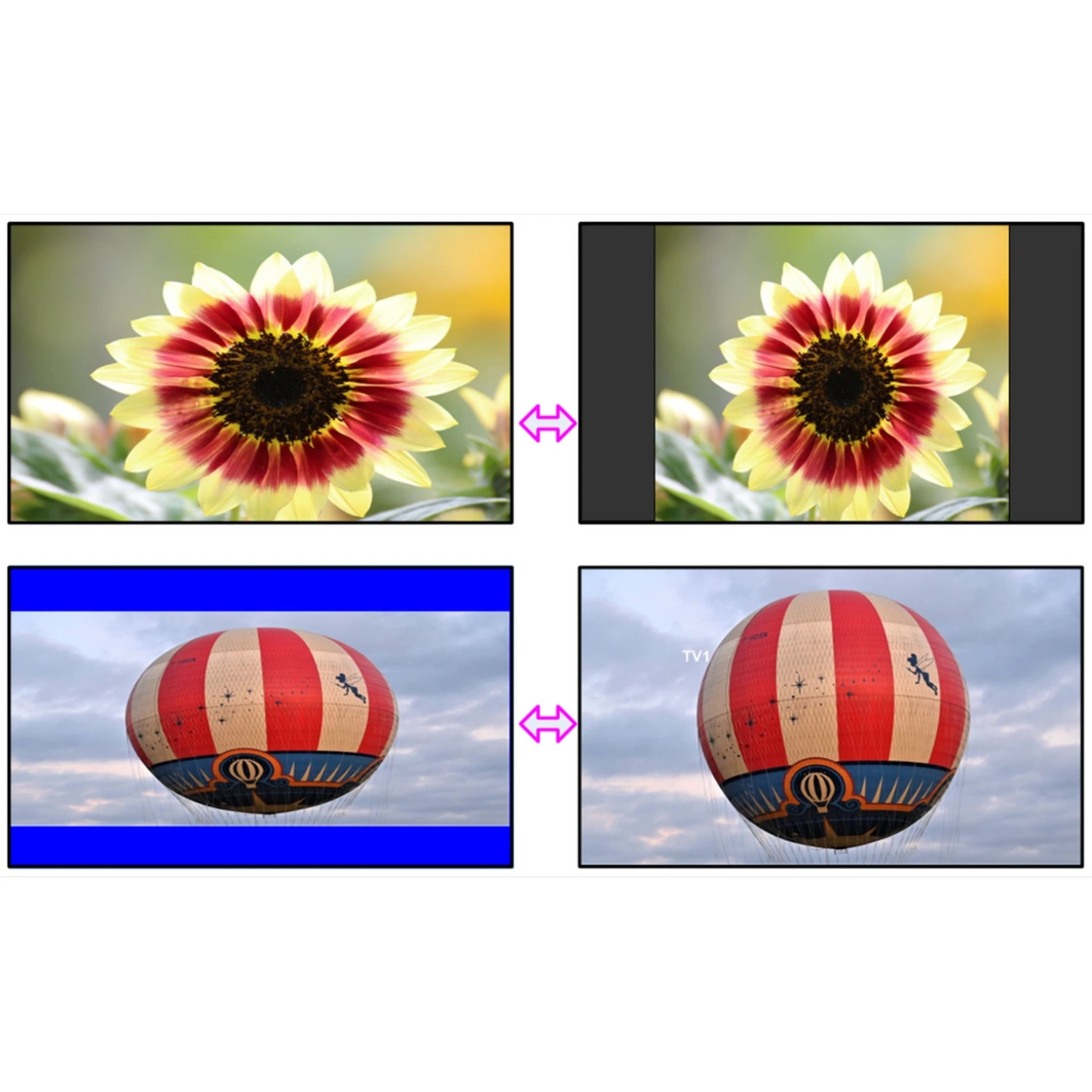

Flexible Aspect Ratio Adjustment in Each Edge up to +_ 1800 Pixels
Individual PIP/POP Function in Each Channel with PIP Image Size from 320×180 up to 1920×1200 Resolution, Flexible Position, Rotation/Flip, and Cropping Area Adjustment

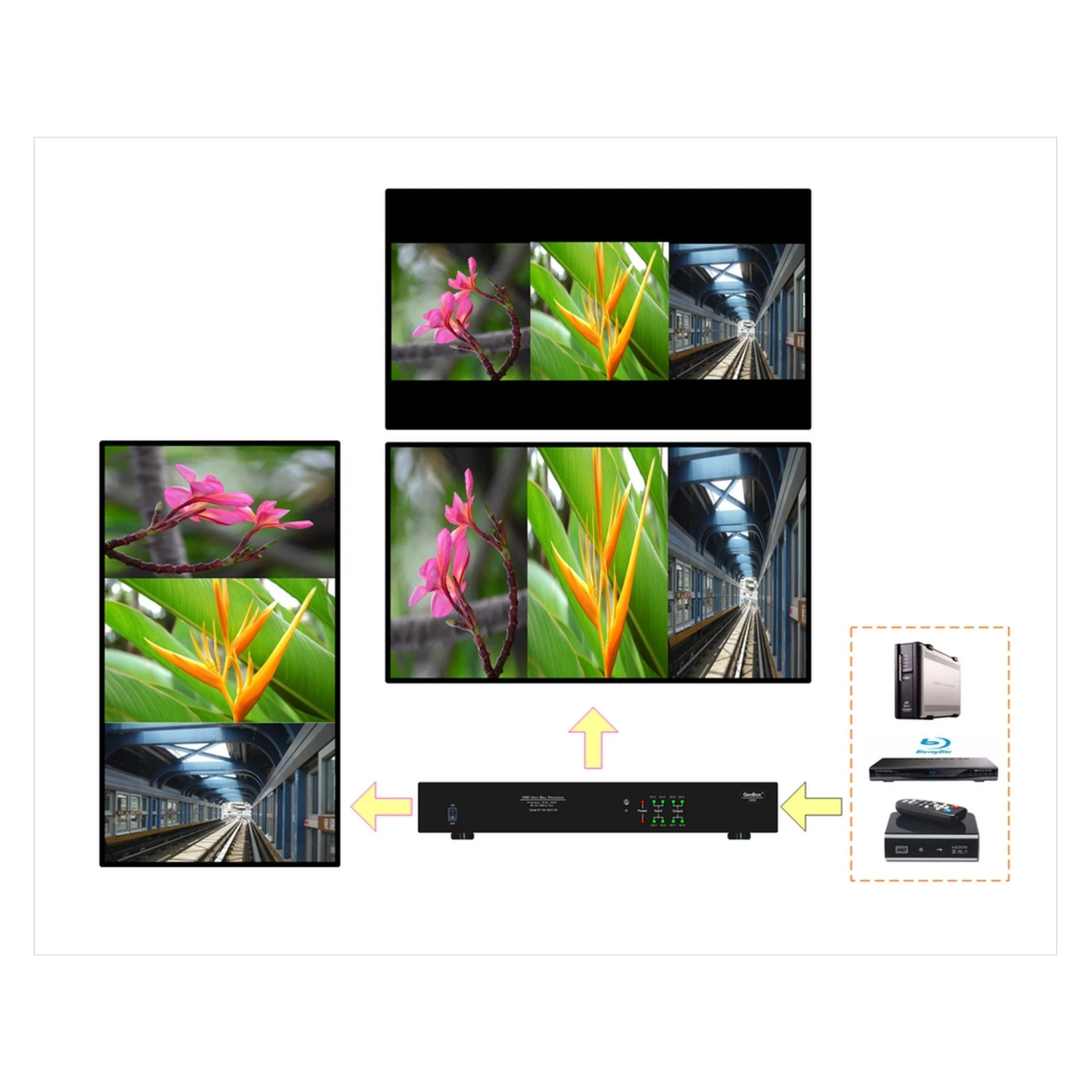

Display 4 Types of 3 Split Views on One UHD Monitor

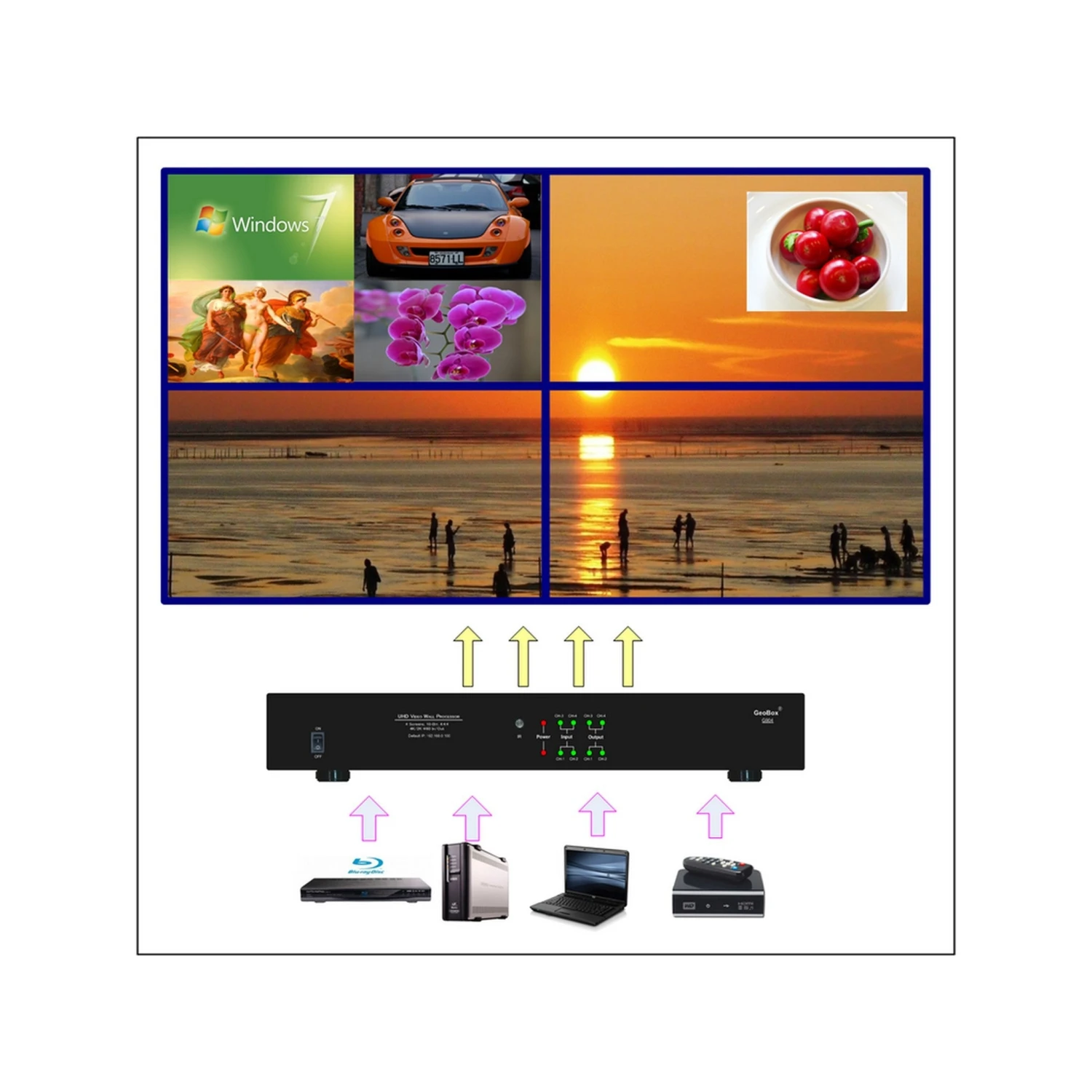

Display 4 Split Views for One UHD Monitor
Two Input Signals Quick Seamless Swap in Each Channel through Remote Controller
Individual Color Adjustment in Main and Sub-Images
Frame Lock for Multiple Unit Synchronization
10-bit Processor, 3:2/2:2 Cadence, Low Angle Smooth Algorithm, and 3D Motion Adaptive De-interlace
High Quality Scaling Engine for Image Scaling up and Down among SVGA to UHD
Support xvYCC 8/10/12-bit Wide Color Gamut Input Signal Processing
Individual 90/180/270 Rotation, Flip, Cropping, Scaling & Color Adjustment up to 4K/60 Input in Main & PIP/POP-Image
Embedded HDMI Audio While Implement PIP/POP, User can Select Audio from Main or Sub-Image

Additional Features:
ESD Protection: ±15kV (Air-gap Discharge), ±8kV (Contact Discharge)
DC Power Supply: DC Adapter – 12V 3A (100V-240V)
Power Consumption: 18W
Working Environment: 45 Degree C, 10-90% RH
Control: IR, RS232, USB, Ethernet
10 System Settings can be Stored and Backup

Dimensions

Dimensions: 12.99″ x 6.38″ x 1.57″
Weight: 3.20 lbs

What’s Included

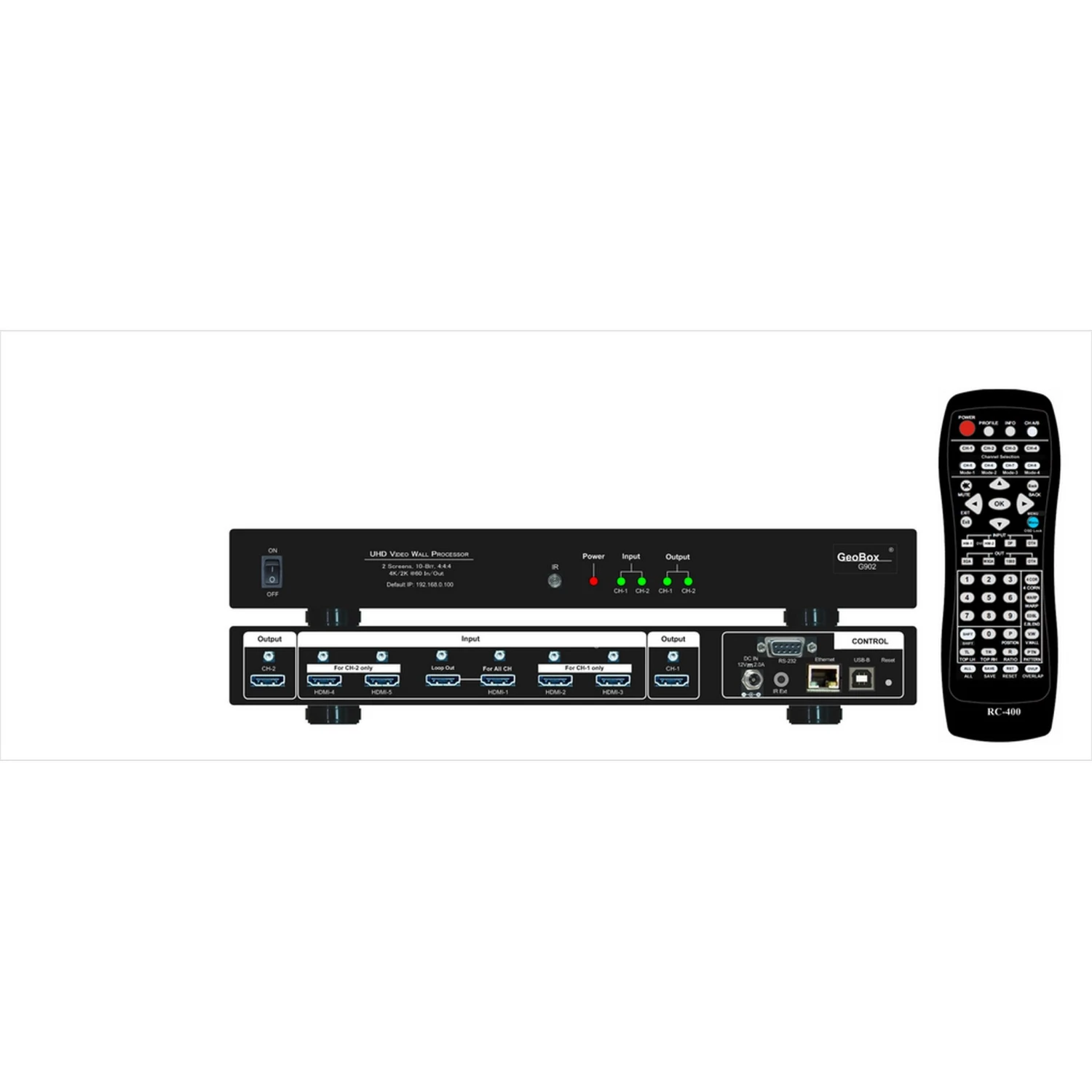

• G902 Video Processor
• DC Adapter (12V 3A)
• Remote Controller
• Quick Start Guide

CE/FCC/RoHS Certified
30-Month Warranty
