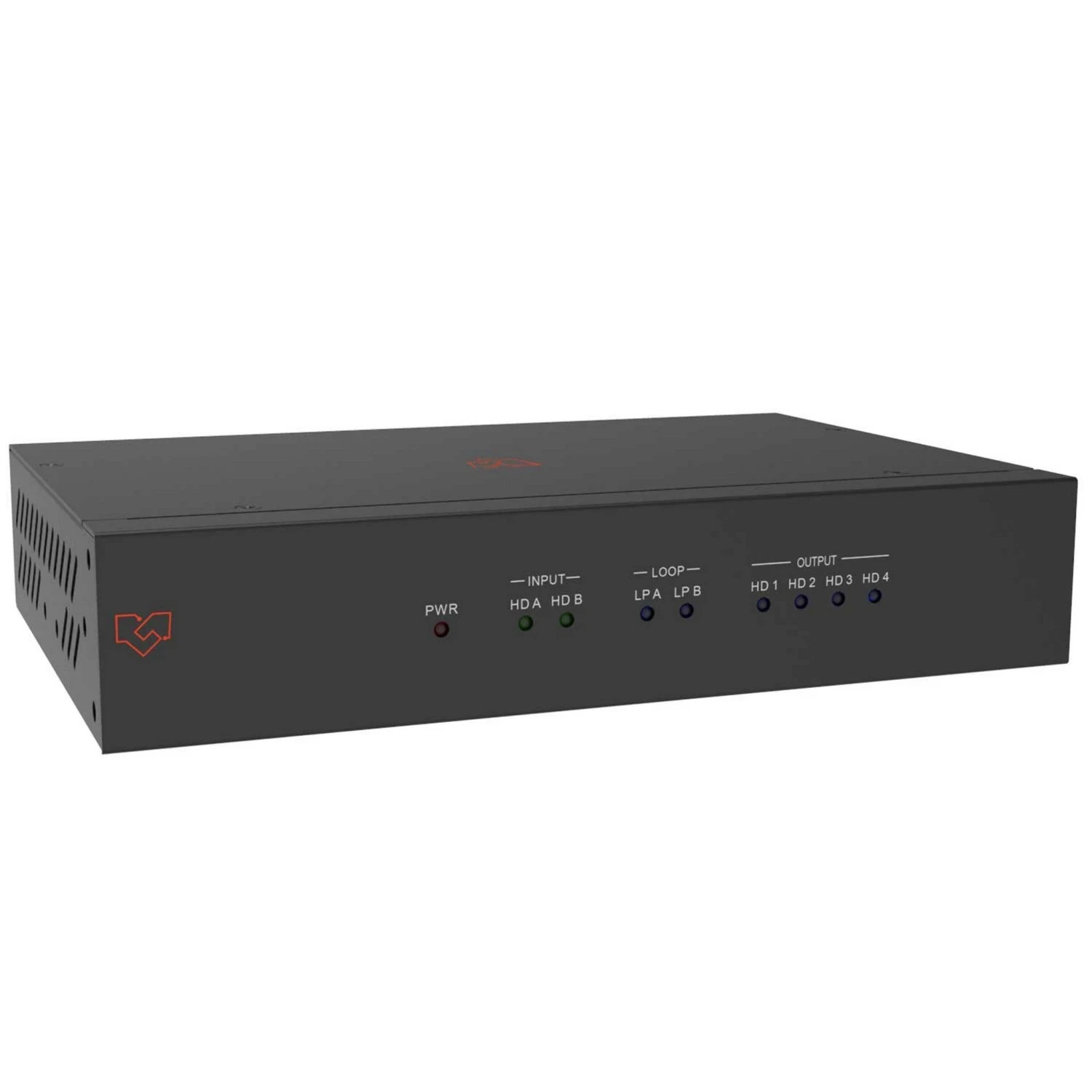

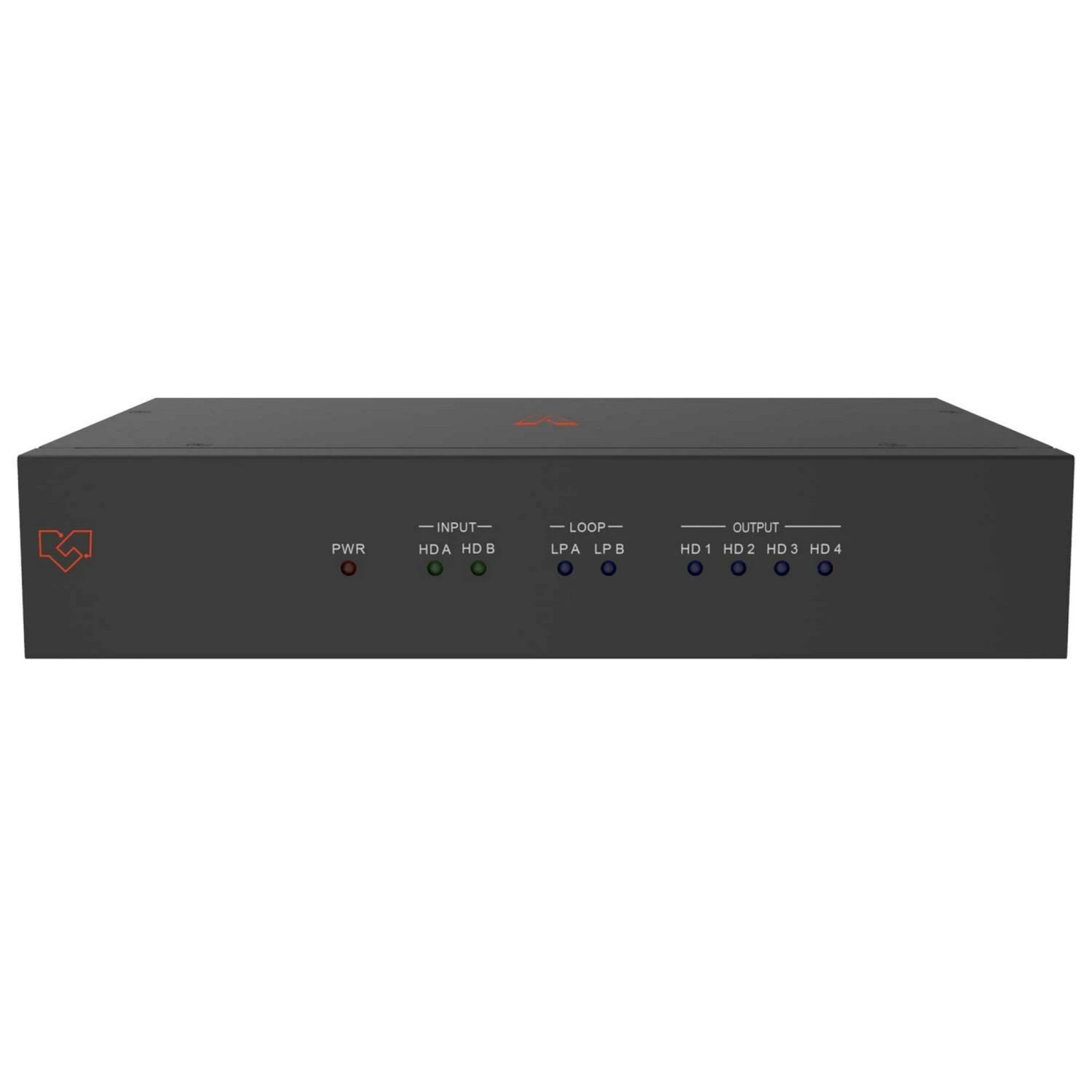

VigilLink 2×4 HDMI 2.0 Videowall Processor 18Gbps(Vigillink 2×4 Hdmi 20 Videowall Processor 18gbps)

VigilLink 2×4 HDMI 2.0 Videowall Processor 18Gbps

The MX24P HDMI Matrix Switcher is designed to meet the demanding needs of both home entertainment and professional AV applications. With the capability to switch between 24 HDMI input sources and direct them to any connected display, it ensures a seamless viewing experience with excellent video quality. Supporting HDMI 2.0 and HDCP 2.2/1.4, this switcher is capable of delivering 4K content at 60Hz, making it an ideal solution for modern video and audio distribution setups.

This device supports a wide variety of video formats, including resolutions up to 4096x2160p, ensuring compatibility with a range of displays. The MX24P supports multiple audio formats including LPCM, Dolby, AC3, and DTS, ensuring that users can enjoy superior sound quality along with their high-definition visuals. With robust ESD protection and a durable metal housing, this unit is built for reliability and longevity, even in demanding environments. Whether you’re upgrading your home theater or designing a complex AV system, the MX24P HDMI Matrix Switcher provides excellent performance and versatility.

With RS-232 control and flexible power supply options, this unit can be seamlessly integrated into any AV setup. The user-friendly interface and reliable performance make it an excellent choice for both professional and consumer-grade installations. Plus, the compact design ensures it can fit into various rackmount configurations without taking up excessive space.

Key Features

• Supports up to 4K@60Hz video resolution for high-quality, seamless viewing.
• Flexible audio formats including LPCM, Dolby, AC3, DTS, and more for versatile sound compatibility.
• HDCP 2.2/1.4 compliance, ensuring secure and high-quality video transmission.
• Supports a variety of input video formats, including 4K, 1080p, and lower resolutions.
• RS-232 control for easy integration into advanced AV systems.
• Durable metal housing for long-term reliability and protection against wear and tear.
• Supports wide operating temperature range for versatility in diverse environments.

Technical Specifications

Dimensions: 8.58″ x 5.75″ x 1.69″
Weight: 4.41 lbs

HDMI Compliance: HDMI 2.0
HDCP Compliance: HDCP 2.2/1.4
RS-232: Baud rate: 57600, Data bit: 8, Stop bit: 1, no parity
Input Video Formats: 4096x2160p 24/25/30/50/60Hz, 1400×1050 60Hz, 3840x2160p 24/25/30/50/60Hz, 1366×768 60Hz, 1080p 24/25/30/50/60Hz, 1360×768 60Hz, 1080i 50/60Hz, 1280×960 60Hz, 1680×1050 60Hz, 1280×800 60Hz, 1600×1200 60Hz, 1024×768 60Hz, 1440×900 60Hz, 1280x720p50/60Hz
Audio Format: 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS
ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Mechanical

Housing: Metal Enclosure
Color: Black
Supply Voltage: +12V/3A
Power Consumption: 25W (Max)
Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity: 20 – 90% RH (No condensation)

What’s Included

• MX24P HDMI Matrix Switcher
• 12V/3A Power Adapter
• RS-232 Control Cable
• User Manual
