VigilLink GeoBox G406 Lite HDMI Video Processor(Vigillink Geobox G406 Lite Hdmi Video Processor)

G406 Lite HDMI Video Processor: Advanced Multi-Display Processing in a Compact Design

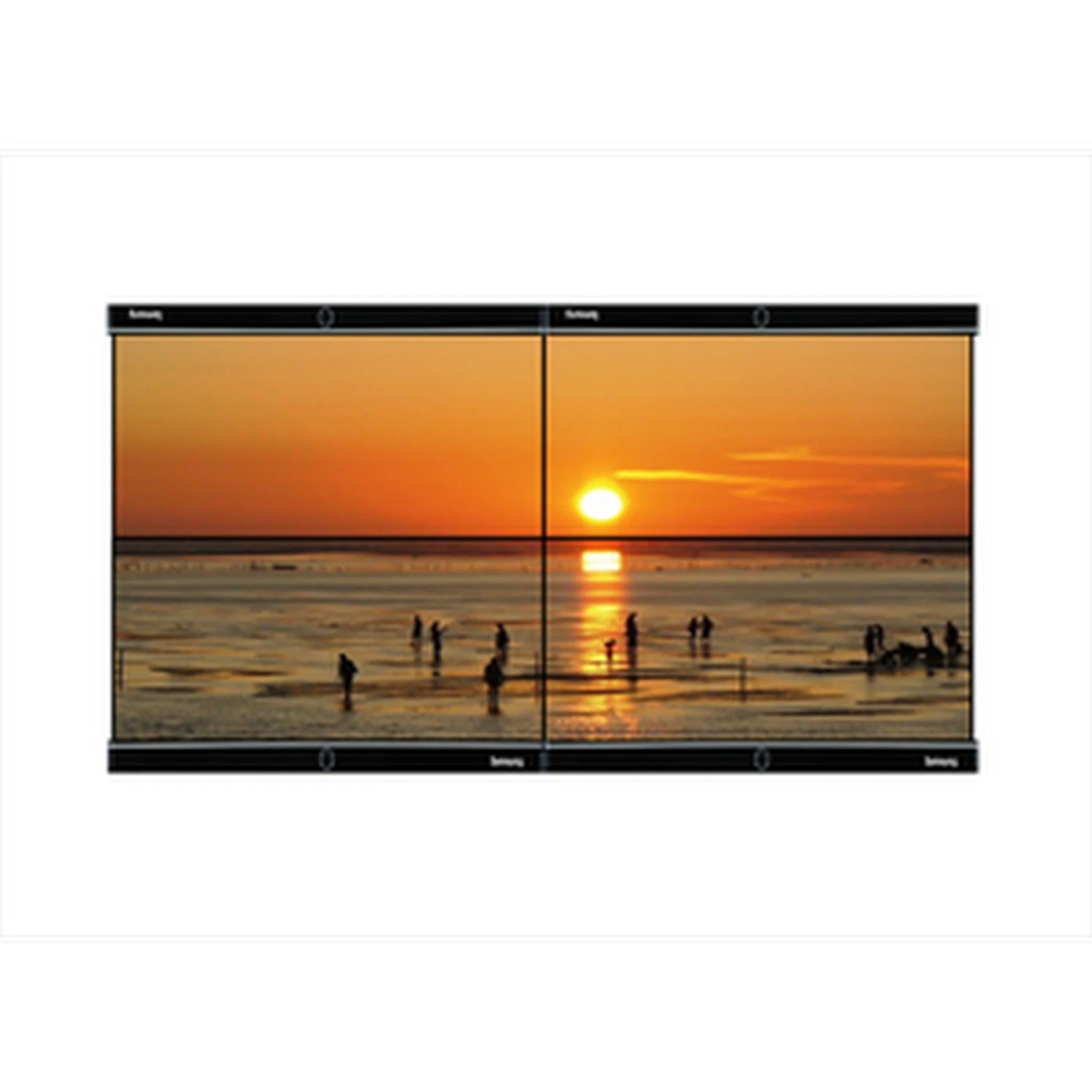

The G406 Lite HDMI Video Processor is a powerful yet compact solution designed for seamless multi-display processing. With its advanced image scaling, color correction, and flexible aspect ratio adjustments, this processor is perfect for video walls, digital signage, and projection applications. Equipped with a single HDMI 2.0b input and four HDMI outputs, it supports resolutions up to 4096×2160 @60Hz, ensuring high-quality visuals with pixel-to-pixel 4K/2K display capability.

Designed to handle high-performance video processing, the G406 Lite features a high-quality scaling engine, 3D motion-adaptive de-interlacing, and frame rate conversion for smooth playback. Its support for 4:4:4 chroma sampling, 30-bit color depth, and HDR input signals (SMPTE ST-2084, ST-2086) allows for superior color accuracy and vibrancy. The embedded HDMI audio in each output ensures synchronized audio-visual performance, making it an ideal choice for professional AV setups.

For maximum flexibility, the G406 Lite includes a loop-out HDMI 2.0 port for daisy-chaining multiple units and offers individual rotation, cropping, scaling, and color adjustments per channel. Its frame lock synchronization ensures smooth multi-screen output, while ESD protection and programmable EDID settings enhance compatibility and reliability. With multiple control options including IR, RS232, USB, and Ethernet, the G406 Lite is a highly versatile and efficient solution for any multi-display environment.

Key Features

• Supports 4096×2160 @60Hz maximum input resolution
• Four HDMI outputs supporting resolutions up to 1080P & WUXGA
• One HDMI 2.0 loop-out port for cascading and daisy-chaining
• HDCP V2.2/V1.4 compliance for secure content protection
• Pixel-to-pixel 4K/2K display with flexible aspect ratio adjustments
• 3D motion-adaptive de-interlacing for smooth video playback
• Frame lock for synchronized multi-screen output
• HDR input signal support: SMPTE ST-2084, SMPTE ST-2086
• Embedded HDMI audio in each output
• Selectable and programmable EDID for display optimization
• Multiple control options: IR, RS232, USB, Ethernet
• CE/FCC/RoHS/Green Certified
• 30-month warranty for long-term reliability

Technical Specifications

Input:
Input Port: 1x HDMI 2.0b

Output:
Output Ports: 4x HDMI up to 1080P & WUXGA
1x HDMI 2.0 loop-out port for multiple unit cascade & daisy-chain connection

Compliance:
HDCP V2.2/V1.4 compliant

Resolution:
Max. input resolution: 4096×2160 @60Hz
Supports non-VESA standard input timings
Supports pixel-to-pixel 4K/2K display
Selectable output up to 1920×1200, 2048×1080 @60Hz

Color Processing:
4:4:4 chroma sampling, 30-bit color
Supports sRGB & xvYCC color processing with 8/10-bit deep color output

Image Processing:
3:2/2:2 cadence, low-angle smooth algorithm, high-quality scaling engine
Flexible aspect ratio adjustment in each edge up to ±1800 pixels
10-bit processor with frame rate conversion
3D motion-adaptive de-interlacing

Output Features:
Frame lock for synchronized outputs
Supports HDR input signal processing: SMPTE ST-2084, SMPTE ST-2086
Outputs SDR full-color RGB 4:4:4 progressive signal
Individual 90/180/270 rotation, flip, cropping, scaling, and color adjustment in each channel
Embedded HDMI audio in each output
Selectable and programmable EDID settings

Protection & Power:
ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)
Power Supply: DC 12V/0.93A, max. 11.2W (100-240V AC PSU)
Operating Environment: 45°C, 10-90% RH

Control & Dimensions:
Control Options: IR, RS232, USB, Ethernet
Dimensions: Length: 13″ x Width: 7.5″ x Height: 1.4″
Weight: 3.3 lbs

What’s Included

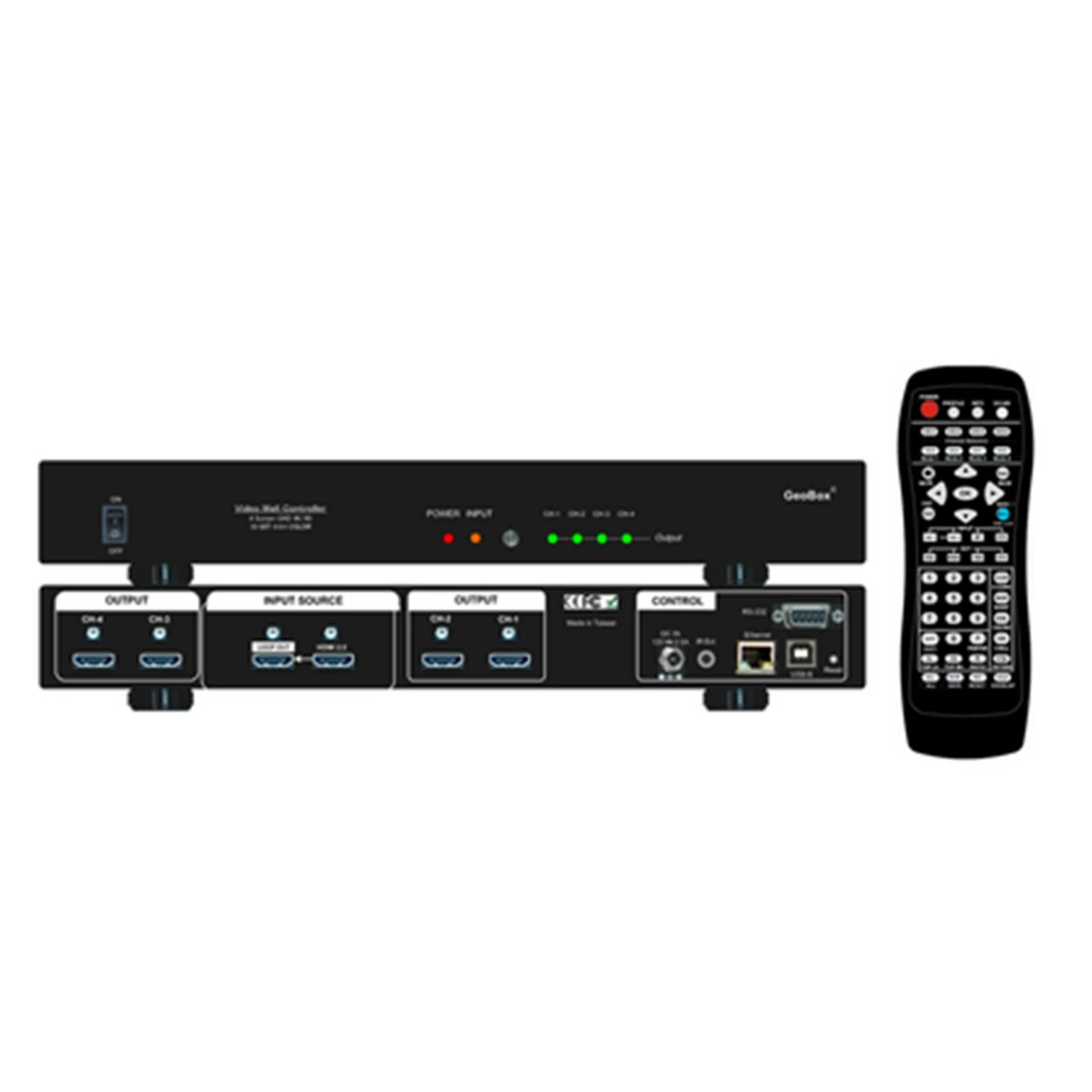

• G406 Lite HDMI Video Processor
• AC Power Supply
• Remote Control
• Quick Start Guide

CE/FCC/RoHS/Green Certified
30-Month Warranty
