Visual Productions Cuelux2 DMX Lighting Control Interface(Visual Productions Cuelux2 Dmx Lighting Control Interface)

Visual Productions Cuelux2 DMX Lighting Control Interface

The Visual Productions Cuelux2 DMX Lighting Control Interface combines a robust hardware interface with intuitive CueLux2 software, enabling seamless programming of LED panels and intelligent moving lights for theatrical, architectural, and event applications. Compatible with Windows, macOS, and Ubuntu Linux, the bundled software is downloadable directly from the Visual Productions website, so you can get up and running without additional licensing fees.

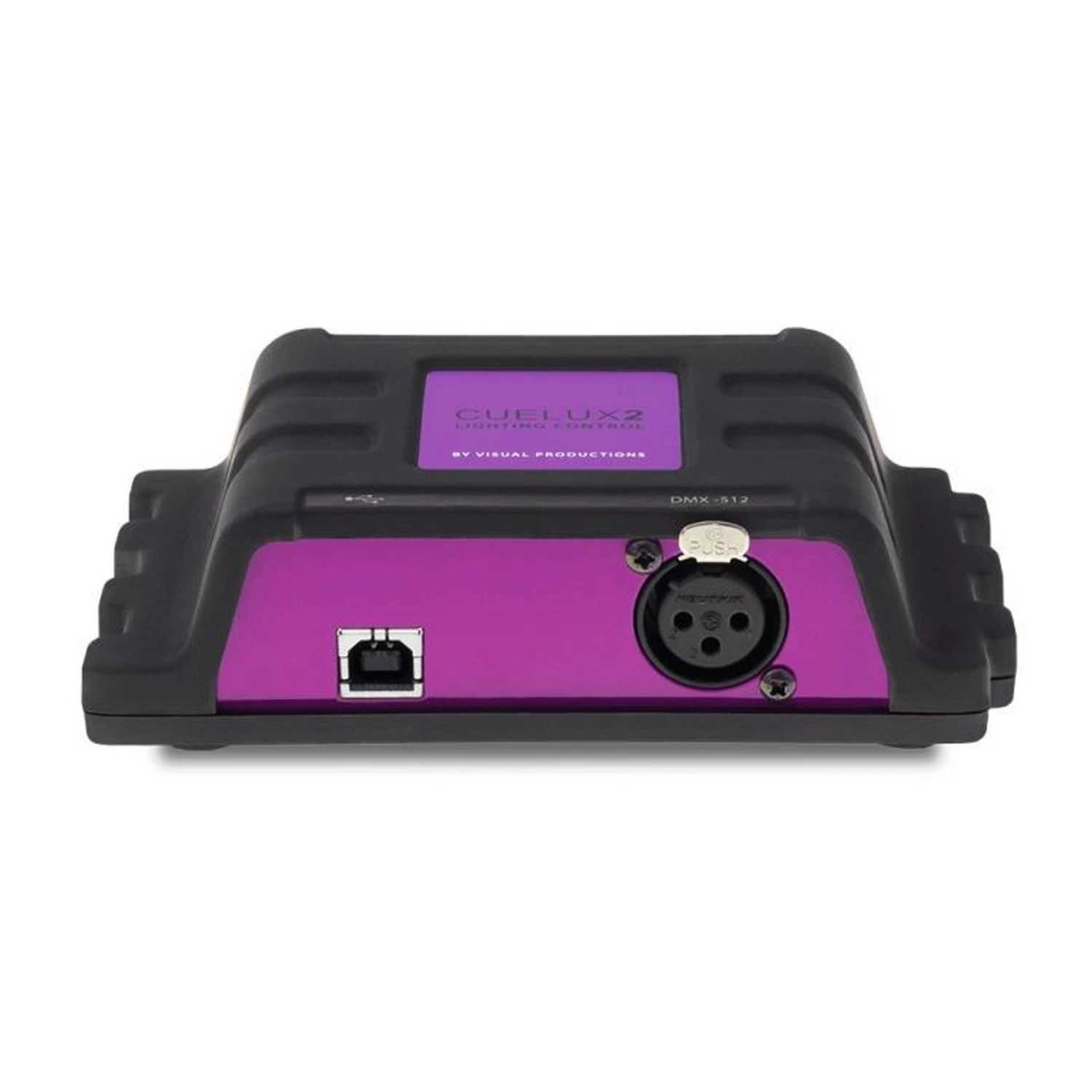

Featuring 512 DMX channels, a USB-B input, and a 3-pin XLR DMX output, Cuelux2 ensures reliable communication between your computer and lighting fixtures. Its desktop and DIN-rail mounting options, along with PoE power over Ethernet, simplify installation in both touring and fixed installations.

Built to professional standards, the Cuelux2 is EN55103-1 and EN55103-2 compliant and includes a built-in Kensington lock port for added security in rack or rail installations. Its wide operating temperature range makes it suitable for virtually any production environment.

Key Features

• Bundled CueLux2 software (Windows, macOS & Ubuntu Linux compatible)
• 512 DMX channels (DMX512 protocol)
• USB-B input and XLR 3-pin DMX output
• Desktop or DIN-rail mounting options
• Power over Ethernet (PoE) compatibility
• Built-in Kensington lock for security
• EN55103-1 & EN55103-2 compliant

Technical Specifications

• Inputs/Outputs: 1× USB-B Female; 1× XLR 3-Pin (DMX) Female
• Channels: 512 (DMX)
• Protocol: DMX512
• Dimming Support: Yes
• Power: PoE Port Power
• Operating Temperature: -4 to 122°F / -20 to 50°C
• Rack Mount: Yes

What’s in the Box

• Visual Productions Cuelux2 DMX Lighting Control Interface
• Limited 2-Year Manufacturer Warranty
