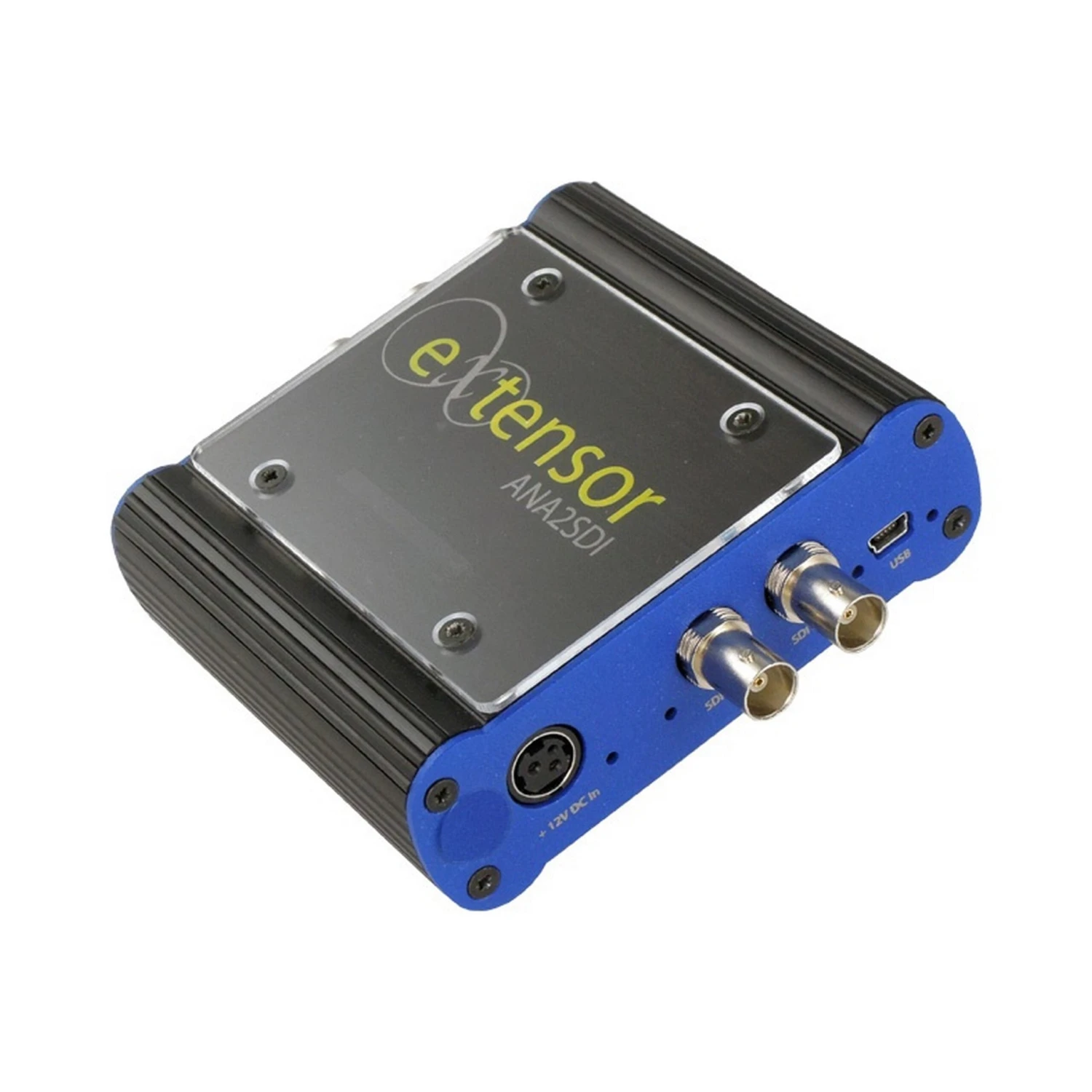

VITEC Extensor ANA2SDI Analog to HD-SDI Video Converter

Extensor ANA2SDI seamlessly converts analog video to HD-SDI with optional downscaling, and converts stereo unbalanced audio and digital audio AES/EBU to embedded audio in SDI. It supports the full range of video resolution formats and frame rates, with progressive to progressive and interlaced to interlaced downscaling available on each output. The Extensor ANA2SDI features two 3Gb/s HD-SDI outputs that can operate redundantly or stream HD-SDI video simultaneously to two devices at identical or different resolutions. An on-screen display overlays all status information directly on the video output signal and an embedded standardized color bar pattern facilitates equipment calibration. Extensor ANA2SDI features a lockable connector on the power supply to prevent accidental disconnection. The compact device may be placed on a tabletop or wall mounted.

Key Features

• Converts 1 x YUV, 1 x S-video or composite to 2 x SDI (BNC)
• Converts 1 x stereo unbalanced audio or 1 x digital audio AES/EBU to 1 x embedded audio in SDI (stereo)
• Inputs: 1 x YUV (3 BNC), 1 x S-video (2 BNC) and 1 x composite (1 BNC)
• Outputs: 2 x HD-SDI 3 Gb/s for redundant output
• Frame rates supported include 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second; 1080i at 25 / 29.97 / 30 frames per second; 720p at 50 / 59.94 / 60 frames per second; 576i, 480i, 576p, 480p at 25 / 29.97 frames per second
• PsF mode

Technical Specifications

Video
Inputs
1x YUV (3 BNC)
1x S-video (2 BNC)
1x Composite (1 BNC)
Output:
2x HD-SDI (3Gb/s) for redundant output
Downscaling available for each output
(progressive > progressive or interlaced > interlaced or interlaced > progressive)
SDI Compliance: SMPTE-259M, SMPTE-292M, SMPTE-424M & SMPTE-425-A
Conversion
Video Inputs
1x YUV
1x S-video
Video Output: 2x HD-SDI (BNC)
Audio Inputs:
1x Stereo unbalanced audio
1x Digital audio AES / EBU
Audio Output: 1x Embedded audio in SDI (stereo)
Frame Rates Supported
1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames by second
1080i at 25 / 29.97 / 30 frames by second
720p at 50 / 59.94 / 60 frames by second
576p, 480p, 576i, 480i at 25 / 29.97 frames by second
