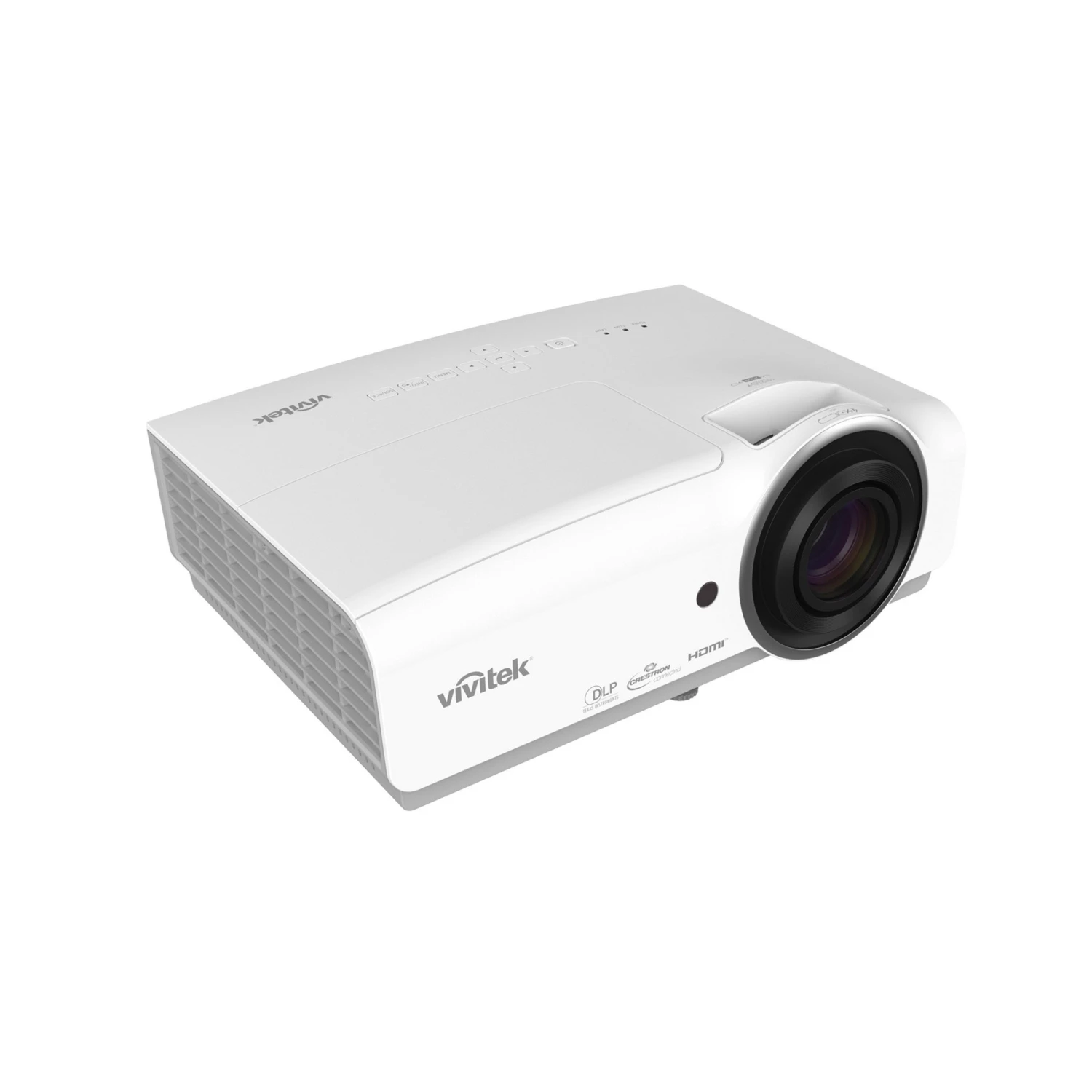

Vivitek DH856 1080p 4800 Lumen 3D 16:9 Widescreen Laser Projector(Vivitek Dh856 1080p 4800 Lumen 3d 169 Widescreen Laser Projector)

Vivitek DH856 1080p 4800 Lumen 3D 16:9 Widescreen Laser Projector

Designed for high brightness and performance in 16:9 widescreen presentation format. The DH856 offers outstanding brightness in its class together with features like comprehensive Full HD 3D support, installation flexibility and portable with a 1.5x zoom lens, keystone and corner correction all in a compact chassis. With advanced color technology, multiple image modes and hardware features, the DH856 provides optimum picture performance for any use in many environments.

Key Features

• Native 1080p (1920×1080) resolution and displays up to WUXGA
• 4,800 lumens of brightness with a 15,000:1 contrast
• viviBlack enhances black level for higher contrast ratio
• 3D-Ready via DLP Link, Full 3D From Blu-Ray or broadcasted via cable or satellite
• 6-segment colorwheel for accurate and detailed color images
• Easy image corrections with 4 corner geometric correction
• Variety of display connectivity options including: HDMI (x2), VGA-in (2x), VGA-Out, S-Video and Composite Video
• Built-in 10W audio speaker with multiple audio-in and audio-out ports
• High-efficiency lamps that last up to 4000 hours in Eco Mode
• RJ45/RS-232c for integration and system administration. Integrated network monitoring and management solutions (product certified) including Crestron RoomView, Extron, AMX SSDP, and Telnet
• 12V trigger for simple screen/projector automation
• Top-loading sliding cover for quick and easy lamp replacement
• Anti-theft security features include: Kensington security slot, and security bar

Technical Specifications

Display Type
Single 0.65” DLP Technology by TI
Brightness
4,800 Lumens
Native Resolution
1080p (1920 x 1080), 16:9 Format
Contrast Ratio
15,000:1
Lamp Life and Type
3000/4000/5000 Hours (Normal/Eco/Dynamic Eco), 310W / 250WW
Throw Ratio (±3%)
1.39 to 2.09 (Distance/Width)
Image Size (Diagonal)*
26” – 325” (0.66 – 8.25m)
Projection Distance
3.94’ to 32.8’ (1.2 to 10m)
Projection Lens
F=2.42 – 2.97, f= 20.70 – 31.05mm
Zoom Ratio
1.5X
Aspect Ratio
Native: 16:9
Offset
114.9%
Keystone Correction
±30 Degrees Vertical, ±30 Steps
Horizontal Scan Rate
15, 31 to 91.4KHz
Vertical Scan Rate
24 ~ 30Hz, 47 ~ 120Hz
Audio
10-Watt Mono
Remote Control
Full Featured IR Remote w/ Laser Pointer
Projection Method
Table Top or Ceiling Mount (Front or Rear)
Uniformity
85%
Computer Compatibility
WUXGA, UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility
SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
Full 3D Video Compatibility
720p 50/60 Frame Packing, 1080i 50/60 Side-by-Side, 1080p24 Frame Packing, Frame Sequential ( DLP Link, HDMI 1.4b (Blu-Ray)
I/O Connection Ports
HDMI 1 ver. 1.4b (x2)
RJ45 LAN Control
VGA-In (15pin D-Sub) x1
RS-232c Serial Control
VGA-Out (15pin D-Sub) x1
5V-Out 1.5A USB Type A (x2)
Audio-In (3.5mm Mini-Jack)
12V-Trigger (3.5 Mini-Jack)
Audio-Out (3.5mm Mini-Jack)
Mini-USB (Service Only)
Security
Kensington Lock Port
Weight
7.48lbs (3.4kg)
Dimensions (W x D x H)
12.36” x 8.39” x 4.96” (314 x 213 x 126mm) ID only
12.36” x 9.06” x 4.96” (314 x 230 x 126mm) with lens
Noise Level
38dB/34dB (Normal/Eco Mode)
Power
Supply: AC 100-240V, 50/60Hz
Consumption: TBAW (Normal Mode), TBAW (Eco Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode)
Operating Temperature
41 to 104 Degrees F (5 to 40 Degrees C)
Warranty
3-Year Limited Parts/Labor, 1year Lamp
Standard Accessories
AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User’s Manual (CD), Warranty Card
Optional Accessories
Spare Lamp P/N (SS-5811126482-VV)
Remote Control P/N (5042149001
UPC
813097024732
