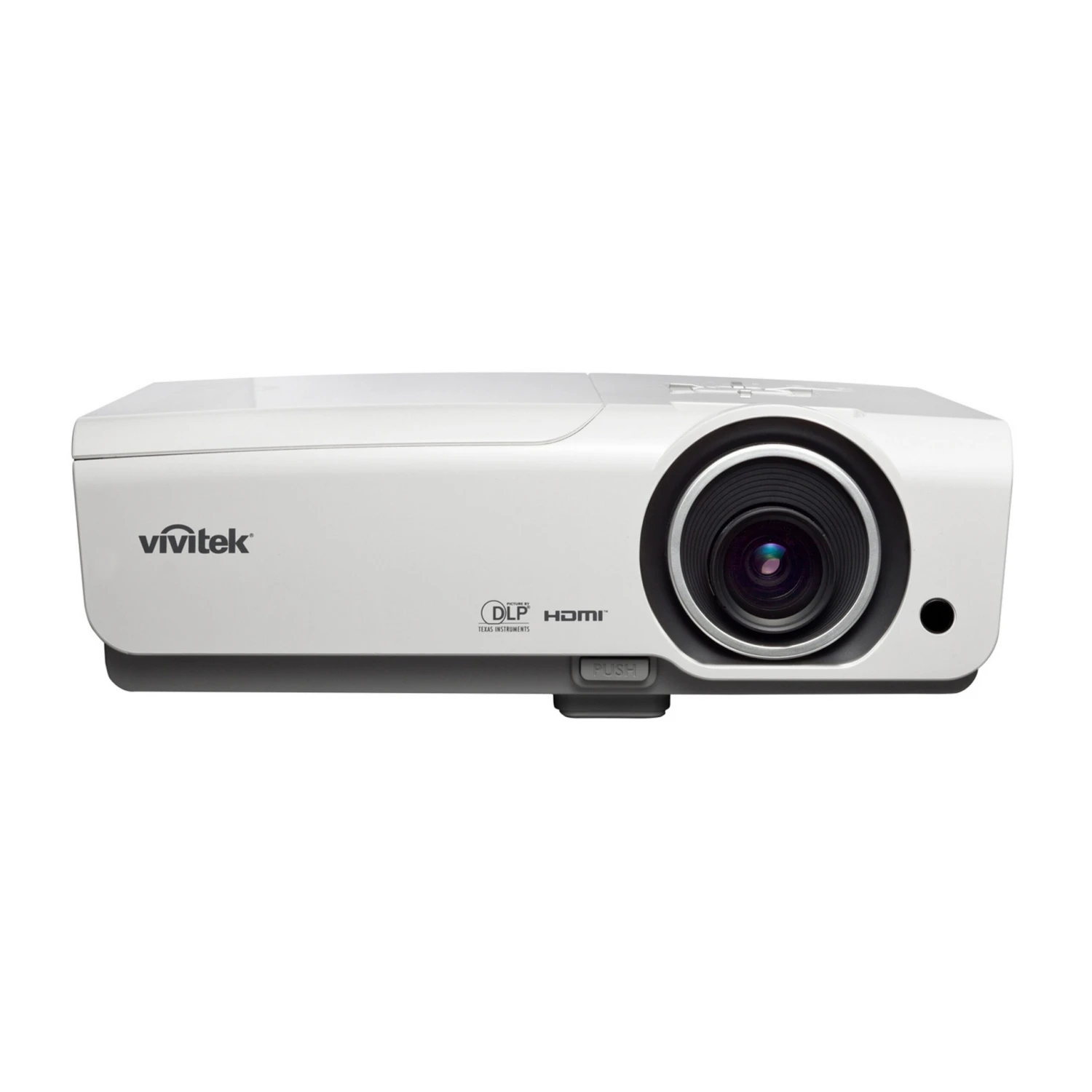

Vivitek DH976-WT 4800 Lumen WUXGA 1080p 3D Projector

Featuring 4800 lumens true 1080p (1920 x 1080) native resolution projector, with Full HD 3D feature. The Vivitek DH976 3D digital projector tilizes DLP dark chip 3, BrilliantColor technologies, and 5-segment color wheel delivers impressive color reproduction and amazing performance. With new improved lens performance a built-in speaker, an assortment of connection options, including 3D sync, RJ45, and RS232c, the DH976 integrates effortlessly into almost any situation where a powerful projector is needed.

Key Features

• High 4800 lumens of brightness with a 15,000:1 contrast ratio.
• DLP dark chip 3 and BrilliantColor technologies for sharp and detailed image quality.
• VividWheel III for improved color reproduction and automatic gain control.
• Full HD 3D capability
• Vertical lens shift
• Large zoom ratio at 1.5:1
• New efficient lamp offering up to 4000 hours of life.
• Connectivity options include: HDMI V1.4 (x2), Display Port, VGA-in (x2), VGA out, Composite video, S-Video.
• RJ45/RS-232C/RJ45 for integration and system automation compatible with Crestron, AMX, Extron, and Telnet.
• Crestron RoomView certified.
• 12V trigger for somple screen/projector automation.
• Top-loading, sliding cover for quick and easy lamp replacement.
• Keypad lock prevents accidental system adjustments.

Technical Specifications

Brightness
4800 Lumens
Native Resolution
1080p (1920 x 1080), 16:9 format
Max. Resolution
WUXGA (1920 X 1200)
Contrast Ratio
15,000:1 Contrast Ratio (Full on/off)
Lamp Life and Type
2500/3500/4000 Hours (Normal/Eco/Dynamic Eco), 310W
Lamp Part #
5811118436-SVV
Display Type
Single 0.65 DLP DC3 Technology by Texas Instruments
Throw Ratio (-3%)
1.39 to 2.09:1 (Distance/Width)
Image Size (Diagonal)
25.9” to 324.9” (0.657 to 8.25m)
Projection Distance
3.94’ to 32.8’ (1.2 to 10m)
Projection Lens
F=2.42 ~ 2.97, f=20.9 ~ 31.05mm
Zoom Ratio
1.5:1 Manual Zoom/Focus
Aspect Ratio
16:9 native, 4:3 Compatible
Offset (based on Full Height)
115%
Lens Shift Range (Manual)
111.2% to 130.8%
Keystone Correction
-40 Vertical (- 40 steps)
Color Spectrum
1.07 Billion
Horizontal Scan Rate
15, 31 ~ 91.4KHz
Vertical Scan Rate
24 ~ 30Hz, 47 ~ 120Hz
3D Functionality
Full HD 3D (Via DLP Link, BluRay 3D)
Speaker
5W Mono
Remote Control
Fully Featured IR Remote with Laser Pointer
Projection Method
Table Top or Ceiling Mount (Front or Rear)
Uniformity
85%
Computer Compatibility
WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA, Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility
SDTV(480i, 576i), EDTV (480p,576p), HDTV (720p, 1080i/p), NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM
I/0 Connection Ports
HDMI v1.4 (x2), Display port, VGA-In (x2), Video, S-Video, VGA-Out, RCA Stereo-In, Mini-Jack Audio-In, Mini-Jack Audio-Out, RJ45, 12V Trigger, RS-232c, 3D Sync, USB (Service)
Security
Kensington Lock Port, Security Bar
Weight
8.3lbs (3.76kg)
Dimensions (W x H x D)
13.1” x 4.5” x 10” (333 x 115 x 255 mm)
Noise Level
30dB/36dB (Eco/Normal)
Power
Supply: AC 100-240V, 50/60Hz
Consumption: 300W/370W (Eco/Normal)
<0.5W (Standby Mode)
Operating Temperature
41 to 104 F (5 to 40C)
Warranty
3-Year Limited Parts/Labor, Lamp (1-Year or 1500 hours)
Standard Accessories
AC Power Cord, VGA Cable, Carrying Case, Remote Control, Batteries for Remote, Lens Cap, User Manual (CD), Warranty Card
UPC
813097021427
