Vivitek DX813 3600 Lumen XGA 3D DLP Projector(Vivitek Dx813 3600 Lumen Xga 3d Dlp Projector)

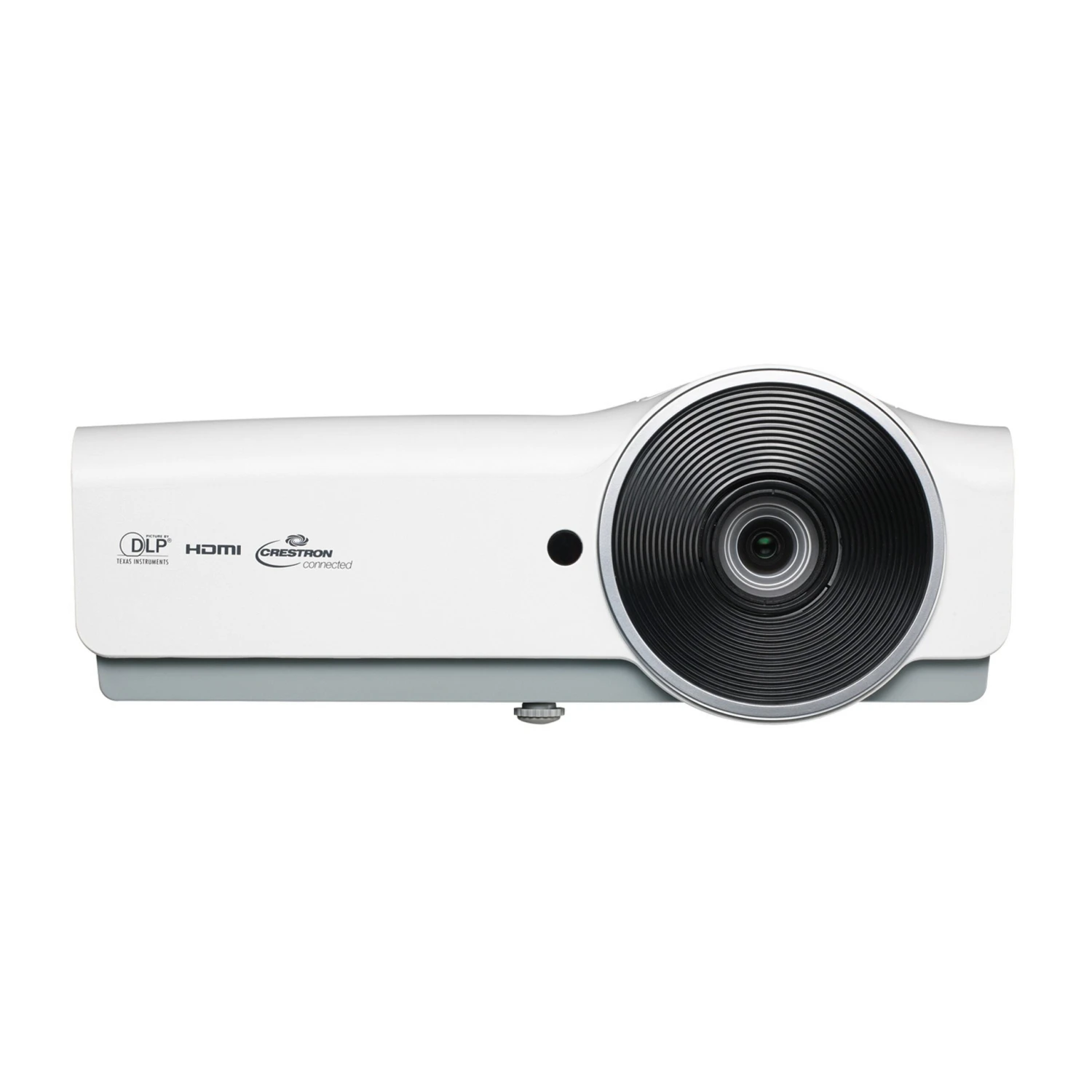

Vivitek DX813 3600 Lumen XGA 3D DLP Projector

The Vivitek DX813 XGA 3D digital projector combines the best in performance, versatility and value. Featuring DLP and BrilliantColor technologies from Texas Instruments, the DX813 displays bright, brilliant images. With extensive connectivity options and a rapid startup/shutdown function, the DX813’s ease-of-use comes in handy when sharing multimedia presentations.

Key Features

• Native XGA resolution and displays up to WUXGA
• 3600 lumens of brightness with a 15,000:1 contrast
• 3D-Ready via DLP Link, Full 3D from Blu-Ray or broadcasted via cable or satellite
• 6-segment colorwheel for accurate and detailed images
• Sealed optical engine to keep dust out and improve performance
• High-efficiency lamps that last up to 7000 hours (in Dynamic Eco mode)
• Rated intensive use for color consistency over time* (*12 hours per day without yellowing or discoloration of image)
• VGA-out for display on a secondary monitor
• Keypad lock prevents accidental system adjustments
• Enhanced color and display adjustments
• Top-loading, sliding cover for quick and easy lamp replacement
• RJ45/RS-232c for integration and system administration. Integrated network monitoring and management solutions (product certified) including Crestron RoomView, Extron, AMX SSDP, and Telnet
• 12V trigger for simple screen/projector automation
• Anti-theft security features include: Kensington security slot, and security bar

Technical Specifications

Brightness
3600 Lumens
Native Resolution
XGA (1024 x 768), 4:3 Format
Max. Resolution
WUXGA (1920×1200) @60Hz
Contrast Ratio
15,000:1 Contrast Ratio (Full on/off)
Lamp Life and Type
3500/5000/7000 Hours (Standard/Economy/Dynamic Mode), 240W
Lamp Part #
5811119560-SVV
Display Type
Single 0.55″ DLP Technology by Texas Instruments
Throw Ratio (-3%)
1.6 to 1.92:1 (Distance/Width)
Image Size (Diagonal)
25.6″ – 256.4″ (0.65 – 6.5 m)
Projection Distance
3.28′ to 32.8′ (1 to 10m)
Projection Lens
F=2.5~2.72, f=17.81~21.35mm
Zoom Ratio
1.2:1 Manual Zoom/Focus Lens
Aspect Ratio
4:3 Native, 16:9 Compatible
Offset
113.9%
Keystone Correction
-40 Vertical; -40 Steps
Color Spectrum
1.07 Billion
Horizontal Scan Rate
15, 31 to 91.4 KHz
Vertical Scan Rate
24 ~ 30Hz, 47 ~ 120Hz
Speaker
10 Watt Mono
Remote Control
Full Featured IR Remote with Laser Pointer
Projection Method
Table Top or Ceiling Mount (Front or Rear)
Uniformity
85%
Computer Compatibility
WUXGA, UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility
SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
3D Compatibility
Yes (DLP Link, Full 3D from Blu-Ray or broadcasted via cable or satellite)
3D Video Compatibility
720p 50/60 Frame Packing, 1080i 50/60 Side-by-Side, 1080p24 Frame Packing
I/O Connection Ports
HDMI v1.4, VGA-In (X2), S- Video, Composite Video, VGA-Out, Audio-In (Mini-Jack) x3, Audio-Out (Mini-Jack), Microphone-In (Mini-Jack), RJ45, RS-232c, 12V Trigger, USB Type A (Power only), Mini USB (Service)
Security
Kensington Lock Port
Weight
6.75lbs (3.06kg)
Dimensions (W x H x D)
12.36″ x 8.50″ x 4.96″ (314 x 216 x 126 mm)
Noise Level
36dB/32dB (Standard/Economy Mode)
Power
Supply: AC 100-240V, 50/60Hz
Consumption: 310W (Normal Mode), 250W (Economy Mode), <0.5W (Standby Mode)
Operating Temperature
41 to 104F (5 to 40C)
Warranty
5-Year Limited Parts/Labor, 1-Year Lamp
Standard Accessories
AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, Carrying Case, User Manual (CD), Lens Cap, Warranty Card
UPC
814964339898
