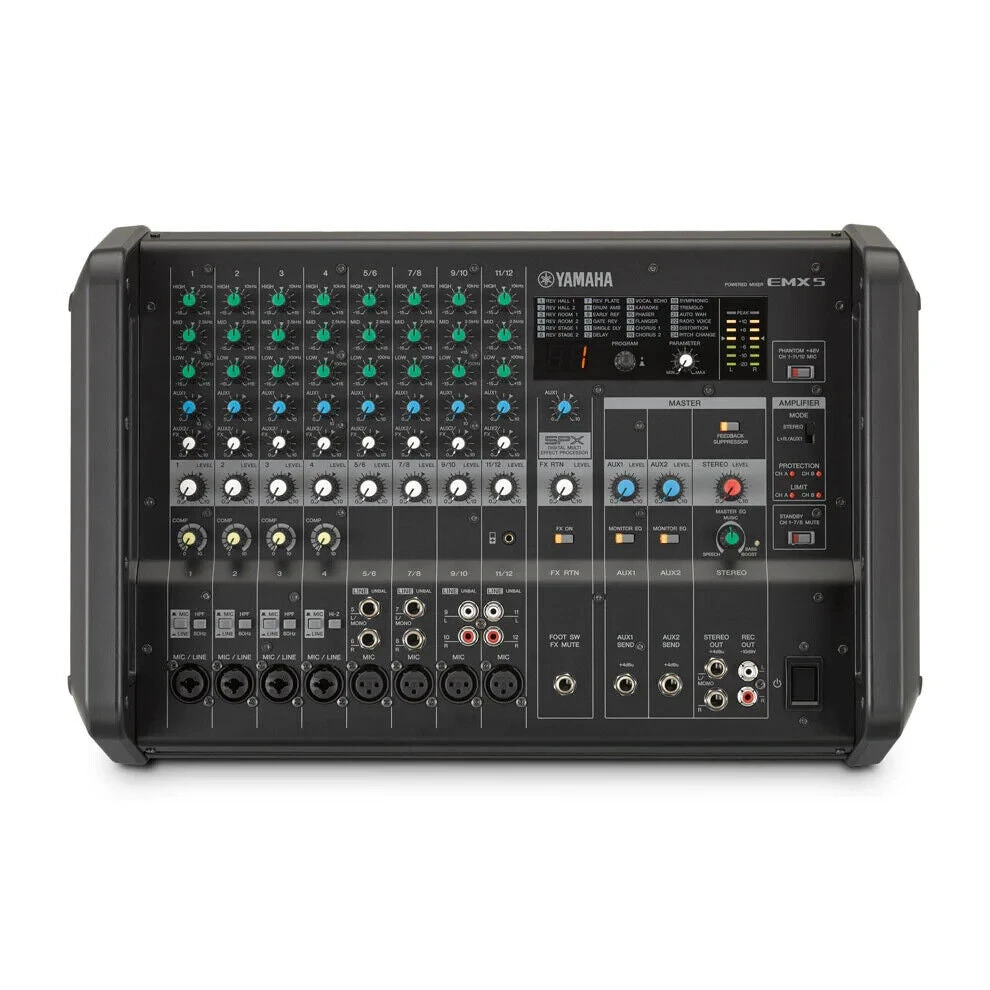

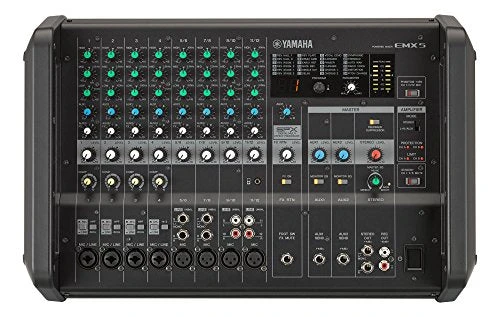

Yamaha EMX5 12 Channel Dual 630W Power Amplified Mixer

Box-type robust and portable powered mixer featuring dual 630W high efficiency power amplifiers and a 12 input mixer with comprehensive effects, 1-Knob Master EQ and built-in feedback suppressor.

Key Features

• 2x 630W <4ohm>, 2x 460W <8ohm> (1kHz THD+N less than 10% CEA2006)
• 2x 500W <4ohm>, 2x 370W <8ohm> (1kHz THD+N less than 1% CEA2006)
• Powerful & High Efficiency Class-D Amplifier
• 12 Line Inputs (8 mono + 4 stereo)
• High-Z input (channel 4) to connect guitars or basses directly
• 1-Knob Master EQ
• Onboard Feedback Suppressor
• Comprehensive, professional 24 different effects
• Metal chassis for extended operation and robustness
• Large handles for extreme portability and protection
• Universal power supply eliminates concern on power fluctuations
• Optional rack-mount kit available

Technical Specifications

Inputs:
TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
Phantom power:
+48 V
Outputs:
SPEAKERS , AUX1 SEND, AUX2 SEND, STEREO OUT , REC OUT
Control and others:
FOOT SWITCH : Effect Mute on/off
Bus:
Stereo: 1, AUX: 2 (Including FX)
Input Channel Function
PAD:
30 dB (CH1-4)
Hi-Z:
Supported (CH4)
HPF:
80 Hz, -12 dB/oct. (CH1-3)
COMP:
1-knob COMP (CH1-4)
EQ HIGH:
10 kHz +15 dB / -15 dB (Shelving)
EQ MID:
2.5 kHz +15 dB / -15 dB (Peaking)
EQ LOW:
100 Hz +15 dB / -15 dB (Shelving)
On-board processors
DSP:
SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ
On-board amplifiers
Maximum output power @4ohms:
1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W
Maximum output power @8ohms:
1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W
Level Meter:
2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)
Frequency response:
Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz
Total harmonic distortion:
Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)
Hum & noise level
Equivalent input noise:
-117 dBu (Noise is measured with A-weighting filter)
Residual output noise:
Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)
Crosstalk:
-85 dB (1 kHz, Measured with 1 kHz band pass filter)
Protection circuit
Load protection:
DC-fault
Amplifier protection:
Over heat protection, Over current protection, Integral power protection
Power supply protection:
Over heat protection, Over current protection
Power requirements:
AC 100-240V, 50Hz/60Hz
Power consumption:
42 W (Idle) / 210 W (1/8 Power)
Dimensions W x H x D:
465 mm (18 5/16″) x 308 mm (12 1/8″) x 325 mm (12 13/16″)
Net weight:
9.5 kg (20.9 lbs)
Accessories:
Owners Manual, Technical Specifications, AC power cord (2.5 m)
Options:
Foot switch: FC5, Rack-mount brackets: RK-EMX7
Others:
Operating Temperature : 0 to +40 Degrees Celcius
