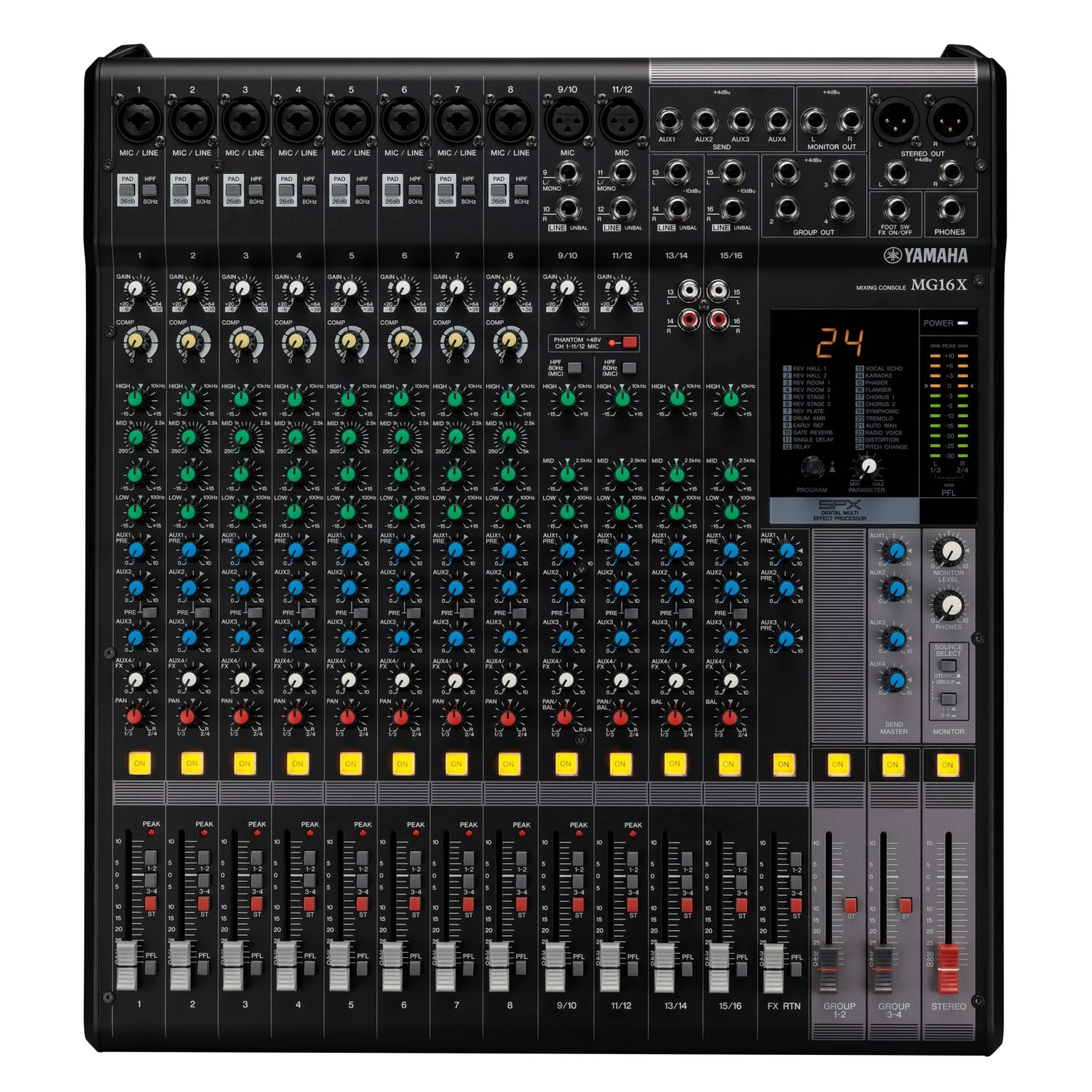

Yamaha MG16X CV 16 Channel Stereo Mixer(Yamaha Mg16x Cv 16 Channel Stereo Mixer)

Yamaha MG16X CV 16 Channel Stereo Mixer

Housed in a rugged steel chassis, the MG16X CV can accommodate up to 16 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes Aux busses for the built-in SPX effect with 24 presets and three more are available. Eight channels of single-knob compression are available. The MG16X can accept XLR, ¼” Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG16X offers faders, and lit channel on/off switches for easy visual indication of settings. A footswitch input allows hands free effect muting. The MG16X CV can be rack mounted (12RU) with the included rack ears.

Key Features

• Rugged, Powder-coated steel chassis for superior durability
• Discrete Class-A microphone preamps
• Built-in SPX digital effects with 24 programs
• Switchable +48V Phantom power
• Color coded controls offer easy operation

Technical Specifications

Frequency Response Input to STEREO OUT
Total harmonic distortion (THD+N) Input to STEREO OUT
0.03 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min
Input Channels Mono
8
Mono/Stereo
2
Stereo
2
Output Channels
STEREO OUT
2
MONITOR OUT
1
PHONES
1
AUX SEND
4
GROUP OUT
4
Bus
STEREO 1
GROUP 4
AUX SEND
4 (incl. FX)
Input Channel Function
Pad (Mono)
HPF (Mono, Mono/Stereo)
80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
Level Meter
Pre-Monitor Level Meter
Internal Digital Effect
SPX Algorithim
Phantom Power Voltage
Power Requirements
Power Consumption
30W
Dimensions (W x H x D)
444 mm x 130 mm x 500 mm (17.5” x 5.1” x 19.7”)
Net Weight
6.8 kg (15.0 lbs.)
