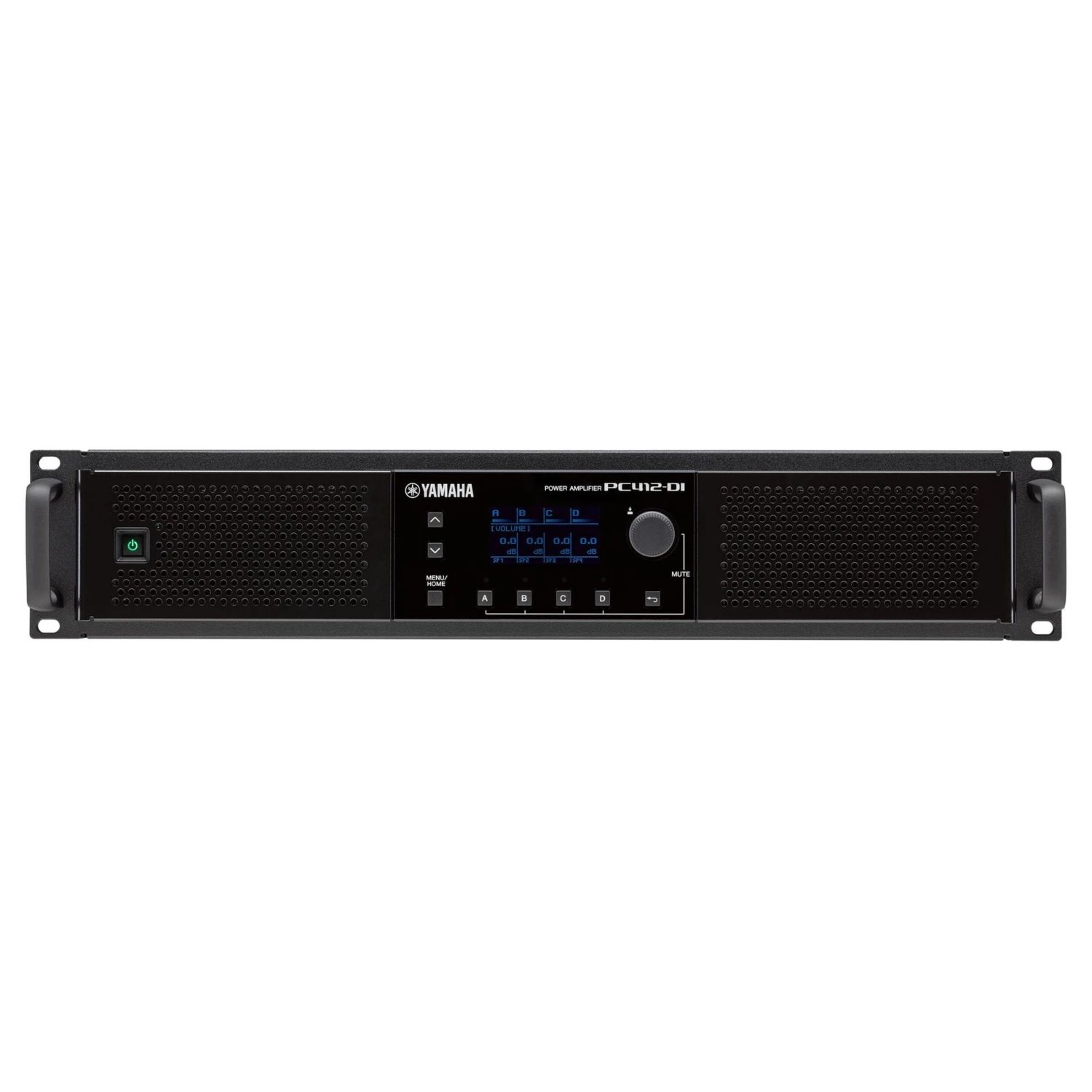

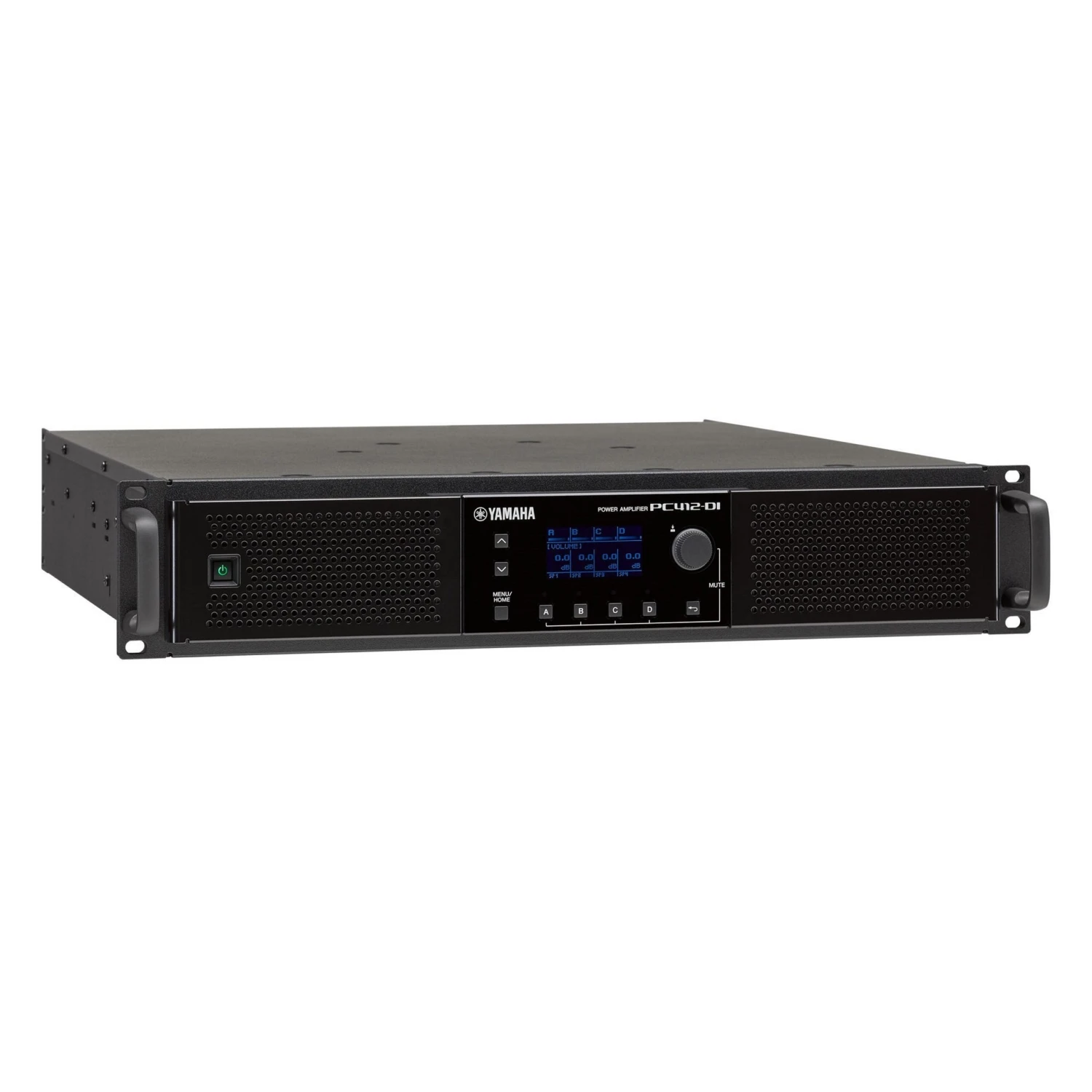

Yamaha PC412-DI 4-Channel 1200 Watts Power Amplifier with Euroblock Connectors

The Yamaha PC412-DI is not just an amplifier; it’s a powerhouse designed to elevate sound quality across various applications. Boasting an impressive capability of 1200 watts across four channels at 8 ohms, this amplifier merges cutting-edge technology with user-friendly features. It is particularly known for its impeccable 20 x 8 input matrix function, which allows audio professionals to customize their setups according to their specific needs, ensuring versatility and optimal performance in any setting.

Equipped with Dante I/O the Yamaha PC412-DI simplifies connection with other devices in modern audio systems. This integration caters to contemporary networking demands while maintaining high-quality sound transmission. With onboard speaker processors, including 16-band PEQ, crossover filters, and delay features, the amplifier ensures that every note is heard with crystal clarity.

The product is highly compatible allowing integration with ProVisionaire Touch and ProVisionaire Control systems. This functionality enables users to tailor their audio environments with personalized remote controls, enhancing convenience during live performances or installations.

With robust thermal and voltage protection systems the Yamaha PC412-DI safeguards itself and connected speakers against potential damage. Furthermore, it features three variable-speed fans that promote optimal cooling during extensive operation, ensuring sustained performance even in demanding environments.

Key Features

• 4 x 1200W at 8 OHM, 4 x 1200W at 100V/70V
• 20 x 8 powerful input matrix function
• Sampling frequency is up to 96k
• 16ch Dante input/output
• Speaker processor with 16 band PEQ, crossover, filters, delay, and limiter
• Yamaha speaker presets
• Remote control via ProVisionaire Touch/Control

Product Specifications

• Output Power: 600W x 4 (16 OHM), 1200W x 4 (8 OHM), 1900W x 4 (4 OHM), 2500W x 4 (2 OHM)
• Amplifier Class: Class D, Single ended output
• Frequency Response: +0.5 -1.5dB (8 OHM, 1W, 35Hz to 20kHz)
• Cooling: 7 step variable speed fan x 3, front to rear airflow
• Power Requirements: 100V – 240V, 50Hz/60Hz
• Dimensions: W: 480mm, H: 88mm (2U), D: 528mm

Package Contents

• Owner’s Manual x 1
• Power Cable (2.0m) x 1
• GPIO Mini Euroblock plug 3.5mm 8p x 2
• Audio Input Euroblock plug 5.08mm 3p x 4
• Cable tie x 4
• Speaker Euroblock plug 7.62mm 8p x 1
• Air filter (L x 1, R x 1)
• Grill (L x 1, R x 1)
• Handle x 2
• Screw x 4
