Yorkville C08CW Coliseum Series Two-Way 8-Inch Coaxial Loudspeaker System(Yorkville C08cw Coliseum Series Two Way 8 Inch Coaxial Loudspeaker System)

Yorkville C08CW Coliseum Series Two-Way 8-Inch Coaxial Loudspeaker System

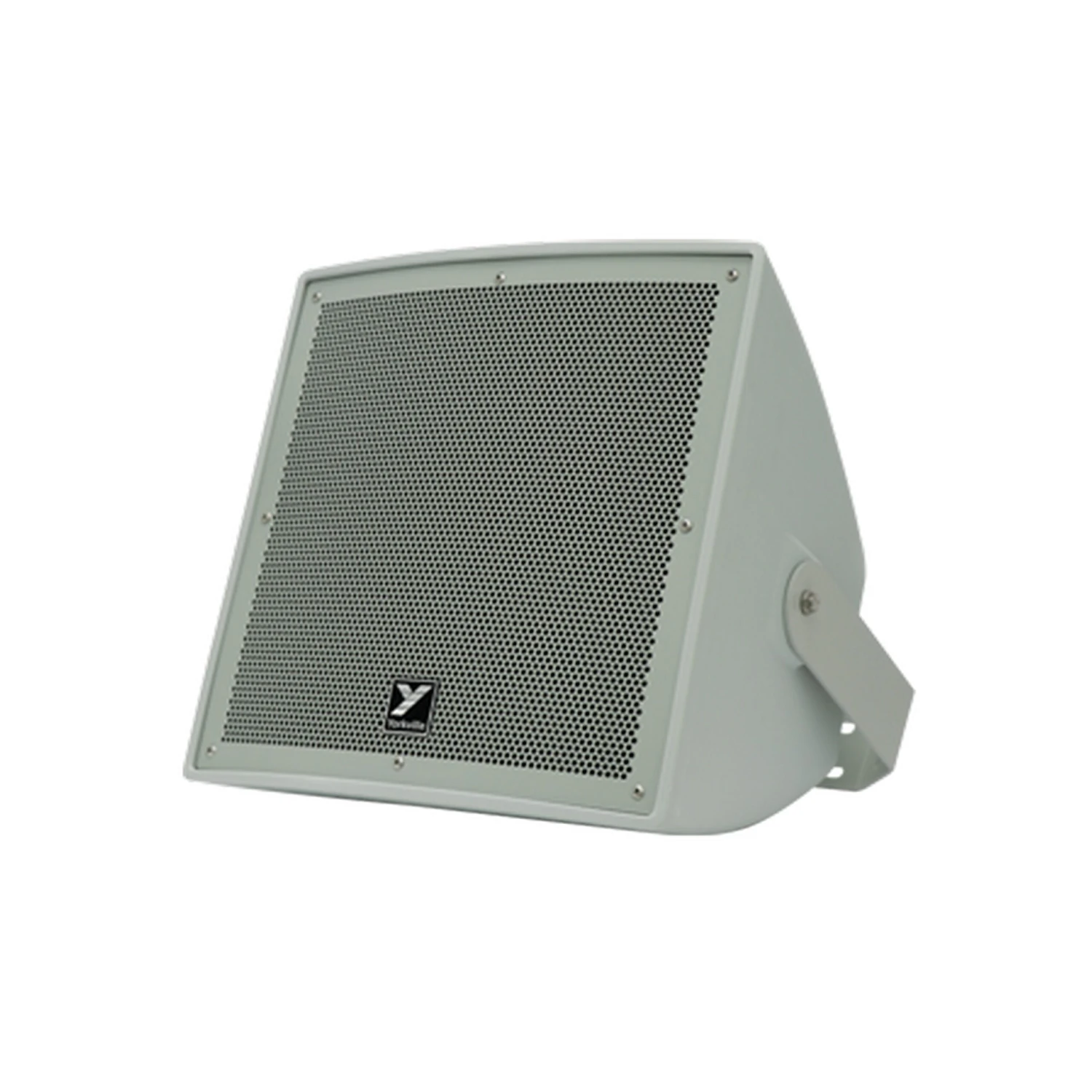

The C08CW is a 2-way speaker designed with an 8” compact coaxial driver, providing a small footprint for high SPL.

With an Ingress Protection rating of IP56, the CO8CW has been treated to be highly weather resistant, particularly to dust and high-pressure water.

The Coliseum CO8CW is a perfect sound solution for sports fields, restaurant patios, and wherever waterproof speakers are required.

All metal U bracket is included.

Key Features

• Two-way loudspeaker system
• Engineering plastic injection molding
• High SPL
• Horn loaded design for coaxial components
• Highly weather-resistant IP56 rating

Technical Specifications

System Type
Two-way
Active or Passive
Passive
Power Rating (Watts)
150
Nominal Impedance (Ohms)
8 or 70/100 Volt
Sensitivity (dB @1Watt/1m)
96
Max SPL (dB)
124
Frequency Response (Hz +/- 3dB)
80 – 18k
Dispersion (°H x °V)
100 x 100
Crossover Frequency (Hz)
2.5kHz Passive
Driver Configuration
8-inch, 1 inch
Inputs
Screw Terminal
Outputs
Screw Terminal
Controls
37.5w / 75w / 150w / off / 8 Ohm
Included Hardware
Yoke Bracket
Enclosure Materials
Injection Molded Plastic
Baffle Material
Injection Molded Plastic
Grille
Metal
Dimensions (DWH xbackW, inches)
13.7 x 11.87 x 11.88
Dimensions (DWH xbackW, cm)
34.8 x 30 x 30.2
Weight (lbs/kg)
24.25 / 11
