Zoom L-8 8-Channel Digital Mixer / Recorder For Podcasting(Zoom L 8 8 Channel Digital Mixer Recorder For Podcasting)

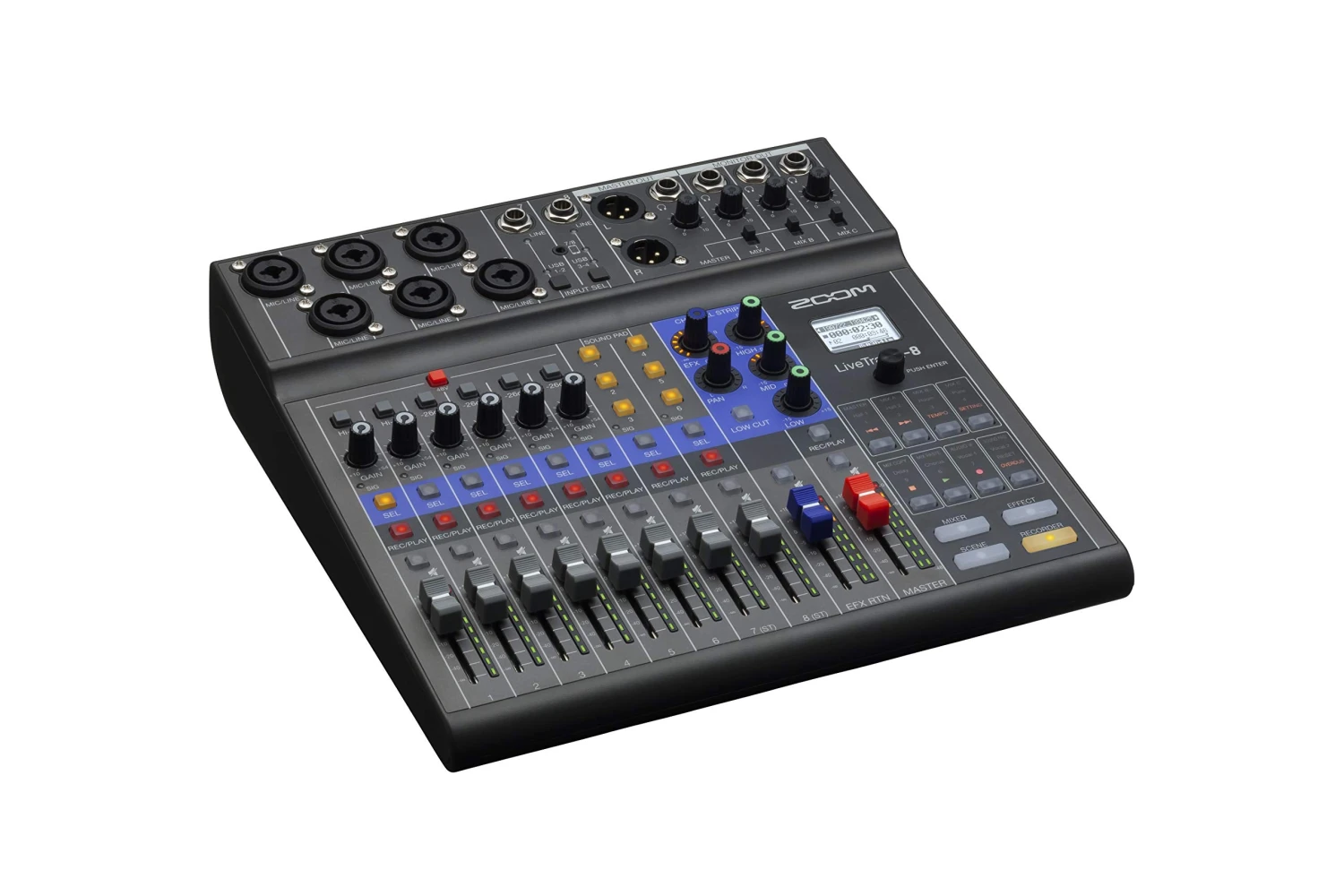

Zoom L-8 8-Channel Digital Mixer / Recorder for Podcasting

Creators are evolving-and so are we. Zoom LiveTrak L-8 makes it easier than ever to mix, monitor and record professional-sounding podcasts and music performances in one portable, affordable package.

Power to the Podcast
Podcast creators are a special breed. They require a unique set of audio features, along with the flexibility of a proper mixing console. The LiveTrak L-8 combines Zoom’s famous audio performance with features made for podcasters.

Sound Pad Magic
Just press a summary to play intros, outros, jingles, ads and sound effects. With 6 easily-assignable Sound Pads, the right sound is at your fingertips.

First-Time Caller, Long-Time Listener
Remote interviews are a snap with the L-8; just connect your phone via the provided TRRS cable. The Mix-Minus function automatically prevents echo and feedback to and from the caller. Or use the USB connection to route audio from Skype, Facetime, Hangouts, Slack and more.

Freedom of Speech
Zoom’s preamps are famous for a good reason: they’re transparent, powerful and ultra-reliable. The L-8 features six independent Zoom preamps, built to handle anything from a whisper to a raucous debate.

A Track for Everyone
The pros know that when you record everyone on their own separate track it just sounds better and provides more flexibility in the edit. The L-8 records separate tracks directly to your SD card, enabling you to edit them later.

On Air, On the Move
The Zoom LiveTrak L-8 can run up to 2 1/2 hours with just four AA batteries, or on a USB battery, so you can podcast from anywhere.

Key Features

• 8-channel mixer (6 combo, plus 2 TS)
• 12-track simultaneous recording, 10-track playback
• Mix-Minus function preventing audio feedback from dial-in guests
• TRRS connection and included TRRS cable for phone connectivity
• 6 assignable Sound Pads, with 13 preset sounds
• 4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
• 3-band EQ and a low-cut function
• 7 scene memories for storing mixes
• 12-in / 4-out USB audio interface
• Class-compliant mode (for iOS compatibility)
• Battery operated with four AA batteries or a USB power supply
• Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously

Technical Specifications

Inputs:
MIC/LINE : 6
LINE : 2
Output
MASTER OUT : 1
MASTER OUT (PHONES) : 1
MONITOR OUT (PHONES) : 3

MIC/LINE
XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain
+10 – +54 dB/-3 – +41 dB (when Hi-Z ON)
Input impedance
XLR: 3 kOHM
TRS: 3 kOHM/1 MOHM (when Hi-Z ON)
Maximum input level
-2 dBu when -26dB switch OFF (at 0 dBFS)
+24 dBu when -26dB switch ON (at 0 dBFS)
Phantom power
+48 V

LINE
TS phone jack
Input impedance
10 kOHM
Maximum input level
+3 dBu

Smartphone connection jack
TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
Input impedance
10 kOHM
Maximum input level
+3 dBu

MASTER OUT
XLR jacks (balanced)
Maximum output level
+14.5 dBu
Output impedance
100 OHM

MASTER OUT (PHONES)
Standard stereo phone jack
Maximum output level
10 mW + 10 mW (60OHM load)
Output impedance
10 OHM

MONITOR OUT (PHONES)
Standard stereo phone jack
Maximum output level
10 mW + 10 mW (60OHM load)
Output impedance
10 OHM

BUSES
MASTER: 1
MONITOR: 3
SEND EFX: 1
CHANNEL STRIP
LOW CUT: 75 Hz, 12 dB/OCT
EQ
HIGH: 10 kHz, ±15 dB, shelving
MID: 2.5 kHz, ±15 dB, peaking
LOW: 100 Hz, ±15 dB, shelving
Level meter
9 segments
Send effects
8 types
Maximum simultaneous recording tracks
12 at 44.1/48/96 kHz
Maximum simultaneous playback tracks
10
Recording format
WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
Recording media
4GB-32GB SDHC-compliant cards (Class 10 or higher)
64GB-512GB SDXC-compliant cards (Class 10 or higher)
44.1/48 kHz
Recording: 12 channels
Playback: 4 channels
Bit depth
24-bit
Interface
USB 2.0
SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
Windows:
OS: Windows 7 SP1 or later / 8.1 / 10 (32bit/64bit)
CPU: Intel Core i3 or faster*
USB: USB 3.0/USB 2.0**
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

Mac:
OS: macOS 10.12 / 10.13 / 10.14 / 10.15
CPU: Intel Core i3 or faster
USB: USB 3.0/USB 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.

iPhone/iPad:
OS: iOS 10 / 11 / 12 / 13
* Apple Lightning-to-USB Camera Adapter required.
CARD READER
Class: Mass storage USB 2.0 High Speed
Sampling frequency
44.1/48/96 kHz
Frequency response
20 Hz – 20 kHz: -1 dB at 44.1 kHz
20 Hz – 40 kHz: -3 dB at 96 kHz (when GAIN at 3 o’clock)
Equivalent input noise
-121 dBu or less (IHF-A) at +54dB/150OHM input
Display
LCD with backlight (96×64 resolution)
Power
4 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5V/1A
Supports USB bus power
Estimated continuous recording time using batteries
Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15sec, BATTERY SAVING is ON and headphone impedance is 62OHM):

Alkaline batteries: about 2 hours
NiMH batteries (1900 mAh): about 3.5 hours
Lithium batteries: about 6.5 hours

The above values are approximate.
Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
Power consumption
5 W
External dimensions
268 mm (W) × 282 mm (D) × 74 mm (H)
Weight (unit only)
1.56 kg
What’s in the Box
LiveTrak L-8 Mixer/Recorder
TRRS Cable
USB Cable
AD-17 AC Adapter
Quick Guide
