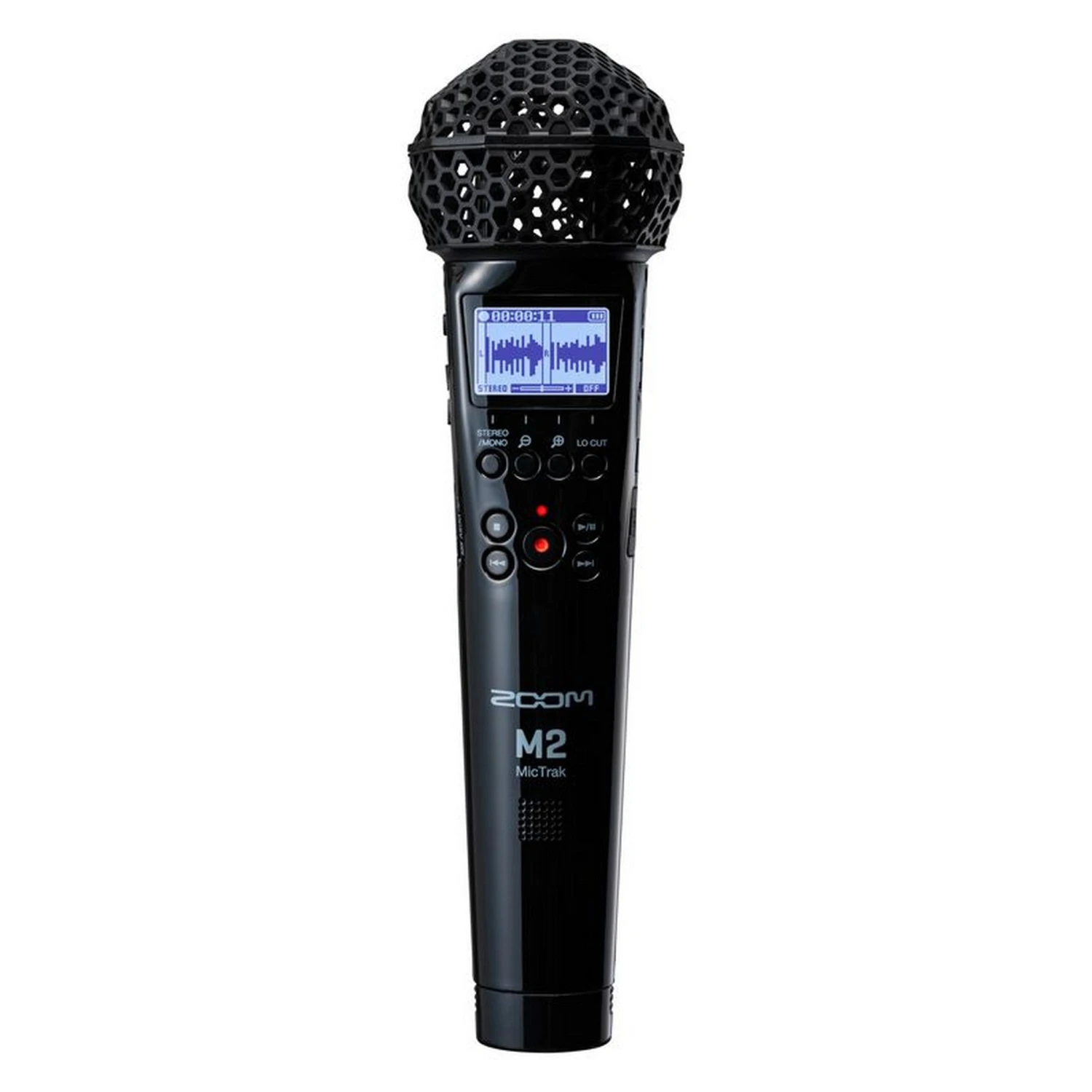

Zoom M2 MicTrak X/Y Handheld Recorder(Zoom M2 Mictrak X Y Handheld Recorder)

Zoom M2 MicTrak X/Y Handheld Recorder

AUDIO RESULTS GUARANTEED
Zoom’s M2 MicTrak elevates the work of creators looking to easily record perfect audio. With its innovative X/Y mic capsule design and 32-bit float technology, the M2 MicTrak always gives you great sound in one take.

ONE TAKE IS ALL YOU NEED
The M2 captures clip-free audio, every time. With 32-bit float recording, there’s no need to set gain. Whether you’re recording soft-spoken dialogue or the thunderous sound of drums, you’ll never miss out on the sound you need.

STEREO RECORDING FOR MUSICIANS
Capture all of your live performances and rehearsals. The M2 is built to provide studio quality sound every time you hit ‘record’.

PODCAST FROM ANYWHERE
When you’re on the go, the M2 is the only recorder you’ll need to deliver crisp, clear dialogue, every time.

BREAKING NEWS ONLY GETS ONE TAKE
When you have just one opportunity to capture the story, the M2 will not let you down.

SUPER LOW HANDLING NOISE
The M2’s unique X/Y stereo mics, along with its specially designed glossy finish significantly reduces handling noise.

STEREO AND MONO MODES
Choose between recording in stereo or mono modes. Stereo is optimal for music performances while mono is perfect for recording interviews and dialogue.

NORMALIZING FUNCTION
The M2 includes a NORMALIZE function that will raise or lower the level of your recordings to optimize volume. This saves time and streamlines the editing process.

LOOK
Keep an eye on your recording using the M2’s LCD screen with a real-time waveform display.

LISTEN
Use the headphone output to monitor your recordings and use the on-board speaker for quick reference.

USB MIC WITH 32-BIT FLOAT
Connect the M2 via USB when recording and streaming on PC, Mac, iOS and Android.

MIC CLIP INCLUDED
Place the M2 on a mic stand for stationary recordings by using the included mic clip.

PLENTY OF BATTERY LIFE
11-hour AA battery life, secured with our new sturdy lock-system, ensures that the M2 is ready to record whenever you need it.

Key Features

• Stereo 32-bit float recorder
• Newly designed stereo X/Y microphones provide unmatched frequency response and clarity
• Body construction and specialized finish to reduce handling noise
• LCD screen with waveform display
• Easy-to-use front panel controls
• Mono mode for ENG application
• Onboard Normalization function
• 3.5mm headphone output
• Includes a newly designed mic clip to mount on a mic stand
• USB Microphone compatible with PC, Mac, iOS, and Android (48 kHz at 24 or 32-bit Float**)
• Use as a USB microphone and record to SD card simultaneously
• Runs on 2 AA batteries* (11-hour battery life)

Technical Specifications

INPUTS
Built-in mic
90º XY stereo format
Directionality
Unidirectional
Sensitivity
-42 dB/1 Pa at 1 kHz
Maximum sound pressure input
135 dB SPL
OUTPUTS
PHONE/LINE OUT jack
Connector
Stereo mini jack
Maximum output level
20 ｍW + 20 ｍW (into 32Ω load)
Output impedance
10 Ω or less
Built-in speaker
500mW 8Ω mono speaker
RECORDER
Recording format
WAV
44.1/48/96 kHz, 32-bit float
Stereo/mono
BWF and iXML formats supported
Recording media
4-32GB cards compatible with the microSDHC specification
64GB-1TB cards compatible with the microSDXC specification
DISPLAY
96×64 LCD with backlight
USB
Connector
USB Type-C
Use a USB cable that supports data transfer.
USB Mic
USB 2.0 High Speed
48 kHz
24-bit or 32-bit float
File transfer
USB 2.0 High Speed
POWER
2 AA batteries
Alkaline, Lithium, or Rechargeable NiMH
AC adapter
ZOOM AD-17: DC 5 V/1 A
USB bus power is supported.
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
Alkaline batteries
About 11 hours
NiMH batteries (1900 mAh)
About 10.5 hours
Lithium batteries
About 22 hours
Power consumption
5 W maximum
Dimensions
221.5 mm (W) x 61.9 mm (D) x 59.3 mm (H)
Weight (including batteries)
204 g
