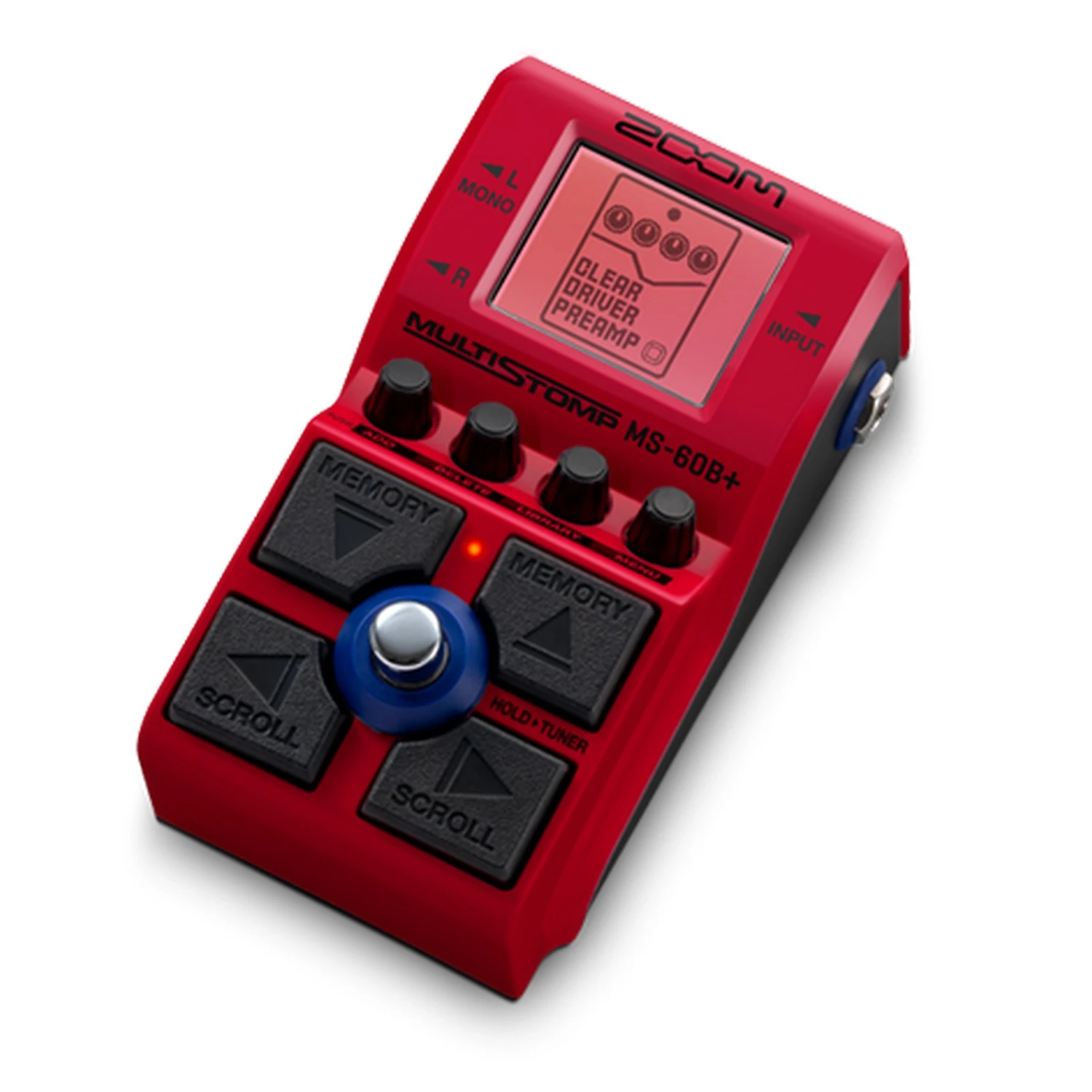

Zoom MS-60B+ MultiStomp Bass Effects Pedal(Zoom Ms 60b Multistomp Bass Effects Pedal)

Zoom MS-60B+ MultiStomp Bass Effects Pedal

The ZOOM MS-60B+ is a powerful all-in-one bass multi-effects pedal that helps bassists craft professional-grade low-end tones anywhere. Featuring 11 legendary preamp models, 11 realistic amp/cabinet models with Multi-Layer IR technology, and 75 expertly designed effects, it gives you the tools to shape your signature sound onstage or in the studio.

With the ability to combine up to six effects, amp models, and preamps simultaneously, plus 100 memory patches (85 factory presets + 15 user), the MS-60B+ offers unparalleled flexibility. Its split-output capability lets you send one signal through amps/IRs to a PA and another dry signal to your amplifier, while its flat-phase high-fidelity analog circuitry ensures tight, clear low-end response.

Key Features

• Preamp Models: 11 including 8 classic preamps and 3 Zoom originals
• Amp/Cab Models: 11 realistic amp/cabinet simulations with Multi-Layer IR
• Effects: 75 DSP effects spanning filters, modulations, synths, drives, octavers, and more
• Simultaneous Processing: Up to 6 effects/preamp/amp blocks at once
• Memory: 100 patches (85 factory + 15 user)
• Split Output: Dual outputs for dry and processed signal routing
• Analog Circuitry: Flat-phase high-fidelity design for sharp attacks and clean lows
• User Interface: Color-coded backlit LCD, four encoder knobs, and four Cross Key switches
• Connectivity: USB-C for Handy Guitar Lab editor and USB MIDI control
• Tuner: Built-in chromatic tuner with visual feedback and support for drop tunings
• Power: 2 × AA batteries (alkaline, NiMH, or lithium) or 9 V DC adapter (AD-16, sold separately)

Technical Specifications

• Dimensions: 133 mm × 79 mm × 61 mm (5.24″ × 3.11″ × 2.40″)
• Weight: 353 g (0.78 lbs) excl. batteries; 400 g (0.88 lbs) incl. batteries
• Sampling Frequency: 44.1 kHz
• A/D & D/A Conversion: 24-bit, 128× oversampling
• Signal Processing: 32-bit floating/fixed point
• Frequency Response: 20 Hz – 20 kHz (+0.5 dB/−0.5 dB into 10 kΩ)
• Display: 160 × 128 dot-matrix LCD, color-coded backlight
• Input: 1 × ¼” mono phone jack (–20 dBu, 470 kΩ)
• Outputs: 2 × ¼” mono phone jacks (max +7.2 dBu into ≥10 kΩ)
• S/N Ratio: 122 dB
• Noise Floor: –100 dBu
• Power Consumption: 9 V DC, 500 mA (DC adapter) or USB bus power
• Battery Life: Alkaline ~7 h; NiMH (1900 mAh) ~6.5 h; Lithium ~14 h
• USB: USB 2.0 Type-C (data & bus power), Handy Guitar Lab compatible

What’s Included

• 1x ZOOM MS-60B+ MultiStomp Bass Effects Pedal
